HDMI RF Modulator Ultimate Guide 2025 | 4K Distribution Over Coax

How To Use Modulator HDMI To RF

What is an HDMI RF Modulator and How Does It Work?

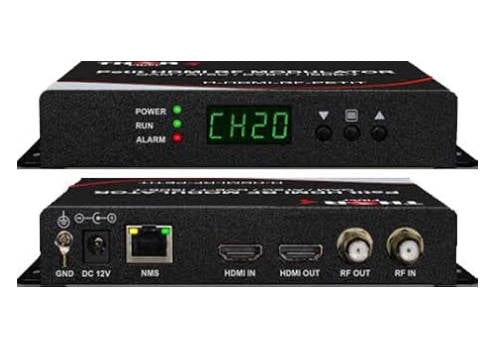

An HDMI RF modulator, also known as an HDMI to coaxial converter, transforms digital HDMI signals into RF (Radio Frequency) signals compatible with coaxial cable systems. This allows distribution of high-definition content from modern HDMI sources—such as streaming devices, game consoles, and Blu-ray players—to legacy televisions or systems using coaxial infrastructure.

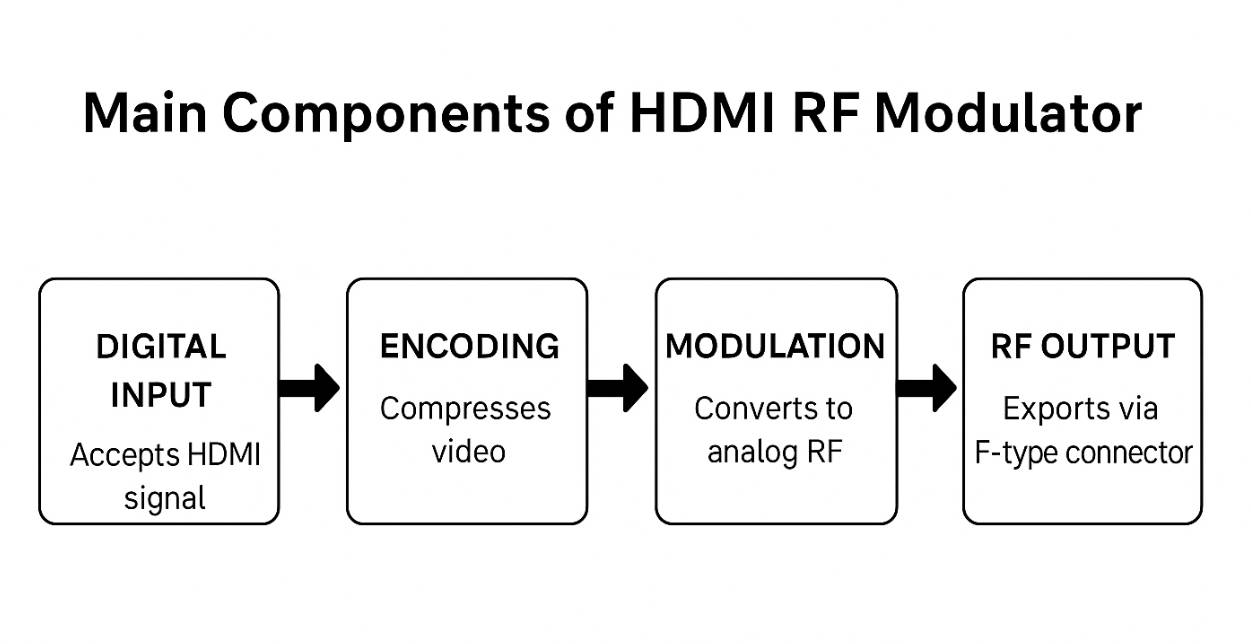

Signal Conversion Workflow:

• Digital Input: Accepts HDMI signals up to 4K resolution (model-dependent).
• Encoding: Compresses video using H.264 (MPEG-4 AVC) or H.265 (HEVC) to reduce bandwidth.
• Modulation: Converts the digital stream into analog RF using standards like QAM, COFDM, or 8VSB.
• RF Output: Outputs the signal via an F-type connector, covering a frequency range of 50–1218 MHz.

Supported Broadcasting Standards:

This multi-standard flexibility ensures compatibility with global TV systems and allows integration into CATV networks without replacing existing coax.

Advantages of HDMI RF Modulators Over Alternative Solutions

Compared to HDMI extenders or traditional analog converters, RF modulators offer distinct advantages:

• Long-Distance Transmission: Up to 700 meters over coaxial cable using 64QAM, without latency or signal degradation.
• Legacy Device Compatibility: Enables use of HDMI sources with older TVs limited to RF input.
• Scalable Multi-Display Distribution: Single HDMI source can be distributed to 100 TVs using coaxial splitters and amplifiers.
• Cost Efficiency: Reuses existing coaxial infrastructure, eliminating the need for expensive HDMI or fiber rewiring.

Comparison with Other Solutions:

Top 5 HDMI RF Modulator Technologies

1. Entry-Level HDMI-to-RF Converters:
   • Resolution: Up to 1080p60 with H.264 encoding.
   • Ideal for simple home installations.
   • Example: Tangxi Modulator (rating: 9.2/10).
2. Multi-Input Professional Modulators:
   • Supports HDMI AV inputs.
   • Web-based configuration (e.g., DMODAVHM series).
3. COFDM Wireless Modulators:
   • H.265 encoding with 50–250ms latency for wireless transmission (e.g., drones, PTZ cameras).
4. QAM/IP Encoder Modulators:
   • 4K support with both RF QAM and IP streaming output.
   • Example: FMUSER 4-channel QAM encoder.
5. Matrix Modulator Systems:
   • Supports 100 channels with tree or daisy-chain topologies.
   • Ideal for large-scale venues.

Technology Overview:

How to Choose the Right HDMI RF Modulator

• Resolution & Codec: Use H.265-capable models for 4K; H.264 is sufficient for 1080p.
• Modulation Standard: Match to regional requirements (ATSC, DVB-T, DTMB, ISDB).
• Frequency Range: Choose devices with adjustable RF output (50–1218 MHz) to avoid channel conflicts.
• Management Interface: Options range from simple LCD control to Ethernet/web GUI or mobile app (e.g., SOUKA SKD-2036C).
• Scalability: Use matrix-capable units like VE-30RFM for large installations.
• Low Latency: Select models with latency ≤130ms for gaming or security applications.

Top 5 Recommended HDMI RF Modulators for 2025

1. VeCOAX Ultra:
   • Resolution: 4K@60Hz
   • Channels: 8–48
   • Use Case: Broadcast, stadiums
2. Eight Limited DMOD1200MS:
   • Supports ATSC, DVB-T, ISDB-T, DTMB
   • 1080p60 encoding
3. SOUKA SKD-2036C:
   • Inputs: HDMI AV
   • Mobile app for control
4. Tangxi HDMI Modulator:
   • Budget-friendly 1080p converter for home use
5. LKV379 Long-Range Modulator:
   • Distance: Up to 700m
   • Supports matrix installations

Comparison Table:

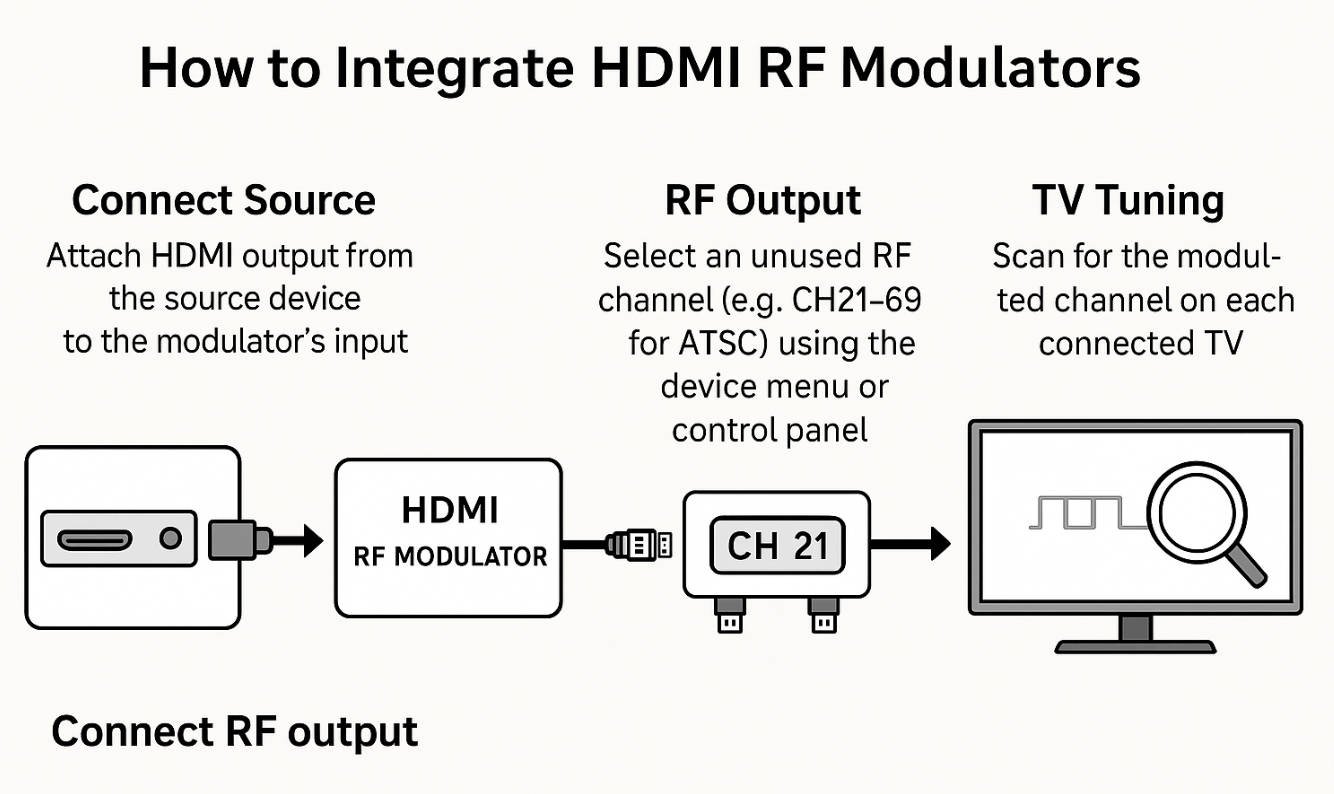

Installation Guide: How to Integrate HDMI RF Modulators

1. Connect Source: Attach the HDMI output from the source device to the modulator's input.
2. RF Output: Connect the RF output to a coaxial splitter or amplifier.
3. Frequency Setup: Select an unused RF channel (e.g., CH21–69 for ATSC) using the device menu or control panel.
4. TV Tuning: Scan for the modulated channel on each connected TV.

Optimization Tips:

• Ensure RF output is within 59–99 dBμV to avoid pixelation.
• Use frequency steps of 1 MHz to minimize channel interference.
• Assign unique Logical Channel Numbers (LCNs) for multi-unit systems.

Real-World Applications

• Hospitality: Stream satellite TV or in-house content to 100 rooms using coaxial backbone.
• Education & Corporates: Extend AV content to overflow rooms or lecture halls.
• Retail & Digital Signage: Distribute synchronized 4K ads to multiple screens.
• Security: Transmit surveillance video from drones or cameras with low latency.
• Residential: Enable whole-home HDMI streaming over existing coaxial lines.

FAQ: HDMI RF Modulator Essentials

Q1: Do HDMI RF modulators support 4K?
Yes. Premium models with H.265 encoding and QAM/COFDM output support full 4K transmission.

Q2: What’s the maximum range for HDMI over coax?
Up to 700 meters using RG6 cable and 64QAM modulation.

Q3: Are HDMI modulators compatible with cable TV systems?
Yes. They can inject content into unused RF channels within 50–1218 MHz for CATV integration.

Q4: Can one modulator feed multiple TVs?
Absolutely. Use splitters and amplifiers to distribute to 8, 16, or even 100 TVs.

Q5: How to minimize interference?
Select non-overlapping UHF channels and ensure MER (Modulation Error Ratio) ≥35 dB.
