Understanding RCA Connectors: The Foundation of Your Audio/Video System
RCA connectors are the ubiquitous, unsung heroes of the consumer audio and video world. For decades, these simple yet effective connectors have facilitated the transmission of analog signals between countless pieces of equipment, from vintage turntables to modern home theater receivers. A proper understanding of their function and correct installation is fundamental to achieving the best possible performance from your system and preserving the integrity of the audio or video signal from source to output.
What Are RCA Connectors? (History, Purpose, and Common Uses)
The RCA connector, named after the Radio Corporation of America which introduced it in the 1940s for internal phonograph-to-amplifier connections, is a type of electrical connector commonly used to carry audio and video signals. Its design is simple: a central male pin (the signal pin) surrounded by a metal ring (the ground ring), which is typically separated by an insulating material.
The purpose of this design is to provide a shielded, unbalanced connection. The center pin carries the signal, while the outer ring provides a ground connection and a shield against electromagnetic interference (EMI) and radio-frequency interference (RFI).
Common uses for RCA connectors include:
- Analog Audio: This is the most widespread use, typically in stereo pairs (red for the right channel, white or black for the left channel). They are used for connecting CD/DVD/Blu-ray players, game consoles, turntables (with a phono preamp), and subwoofers (often a single cable labeled LFE).
- Analog Video: While largely superseded by digital standards, composite video (yellow connector) is still found on some legacy equipment. Component video (using red, green, and blue connectors for higher quality) also utilizes RCA connectors.
- Digital Audio: While uncommon, RCA connectors can be used for S/PDIF (Sony/Philips Digital Interface) coaxial digital audio connections, requiring a high-quality 75-ohm cable.
Why Proper Installation is Paramount for Signal Quality
A poorly installed RCA connector is a primary source of signal degradation, noise, and complete connection failure. The integrity of the connection directly impacts the performance of your entire system.
- Signal Loss and Degradation: A loose connection, cold solder joint, or stray wire strands causing a short circuit can attenuate the signal, resulting in reduced volume, loss of high frequencies, or a fuzzy, distorted sound.
- Introduction of Noise: Improper shielding, where the ground braid is not securely connected to the connector's outer ring, acts like an antenna. It will pick up hum from AC power lines (60Hz hum) and other electromagnetic interference, which is then amplified and heard through your speakers.
- Intermittent Connections: A connector that is not firmly attached to the cable can cause dropouts in audio or video, where the signal cuts in and out with movement of the cable, leading to a frustrating user experience.
Proper installation ensures a low-resistance path for the signal, maintains the cable's shielding integrity, and provides a durable, reliable connection that will last for years.
Anatomy of an RCA Connector and Cable
To install an RCA connector correctly, you must first understand the components you are working with. Both the connector and the cable have specific roles in ensuring signal fidelity.
Decoding the Connector's Components
A typical solder-type RCA connector consists of several key parts:
- Center Pin (Signal Pin/Post): This is the positive ( ) terminal that carries the audio or video signal. It is designed to be inserted into the female jack on your equipment.
- Dielectric Insulator: A non-conductive plastic or Teflon sleeve that separates the center pin from the ground sheath, preventing a short circuit.
- Ground Sheath (Barrel/Sleeve): The outer metal body of the connector. This part makes contact with the outer ring of the female jack and is where the cable's shielding/ground wire is attached.
- Strain Relief/Shell: The outer covering, often made of plastic or metal, that screws or clips over the assembled connector. Its primary job is to clamp down on the cable's outer jacket, relieving mechanical stress from the delicate internal connections and preventing the cable from being pulled out.
The Importance of RCA Audio Cable Construction
Not all RCA cables are created equal. Their internal construction is a major determinant of their performance, especially over longer distances.
| Component | Description and Importance |
|---|---|
| Center Conductor | This is the primary signal path. It can be a single solid wire or stranded copper. Stranded wire is more flexible and resistant to breakage from repeated bending. The purity of the copper (e.g., Oxygen-Free Copper - OFC) can also affect conductivity. |
| Dielectric Insulation | The material insulating the center conductor, such as PVC or polyethylene. Its quality affects the cable's capacitance, which can influence high-frequency signal response. Better dielectrics have lower capacitance. |
| Shielding | This is critical for rejecting noise. It is typically a braided mesh of copper or aluminum wires, or sometimes a conductive foil wrap (or both). The shield acts as a barrier to interference and provides the return path (ground) for the signal. |
| Outer Jacket | The protective plastic coating around the cable. A good jacket is flexible, durable, and resistant to kinking, crushing, and wear from environmental factors. |
Choosing the Right RCA Connectors for Your Application
Selecting high-quality components is the first step toward a successful installation. The right choice depends on your specific needs, budget, and the equipment you are using. At Bettlink, we provide precision-engineered connectors, battery holders, and protective enclosures designed to ensure reliable contact, minimize voltage loss, and prevent damage caused by leakage.
Connector Types and Designs for Specific Needs
- Solder-Type Connectors: These require the installer to solder the center conductor and ground shield to the connector. They are generally considered the most reliable and permanent solution, offering the best possible electrical connection and mechanical strength. Ideal for custom cable builds and permanent installations.
- Solderless (Crimp/Screw-Type) Connectors: These connectors use set-screws or crimping mechanisms to secure the wires. They are faster to install and require less skill and equipment (no soldering iron needed). However, they can be less reliable over time if not crimped perfectly, as the connection can loosen or oxidize, increasing resistance.
- Right-Angle Connectors: These are designed to fit into tight spaces where a straight connector would not physically fit or would put undue strain on the equipment's input jack.
Material Considerations: Gold-Plated, Nickel, and Beyond
The plating on the connector's contacts is not just for show; it serves a vital functional purpose.
| Material | Advantages and Use Cases |
|---|---|
| Gold Plating | Gold is highly resistant to oxidation and corrosion, which ensures a reliable, low-resistance connection over a long period. It is the best choice for critical audio applications and for equipment that may not be connected/disconnected frequently. It is not significantly more conductive than other metals; its primary benefit is corrosion resistance. |
| Nickel Plating | Nickel is a hard, durable metal that provides good corrosion resistance at a lower cost than gold. It is a common and perfectly acceptable choice for standard consumer audio/video equipment. It may develop higher resistance over many years compared to gold. |
| Silver Plating | Silver has the highest electrical conductivity of any metal. However, it tarnishes (oxidizes) easily, which can actually increase resistance and impair the connection over time if not frequently used. It is sometimes used in high-end, performance-oriented cables. |
Shielding and Cable Quality
When buying pre-made cable or bulk cable for your project, prioritize well-constructed cables with dense, braided copper shielding. For environments with many electronic devices (e.g., a home theater rack), a cable with dual shielding (e.g., a foil layer plus a braid) offers superior protection against interference. For digital coaxial applications, ensure the cable is rated at 75 ohms.
Essential Tools and Pre-Installation Preparation
Having the right tools and preparing your workspace is crucial for a clean, safe, and successful installation.

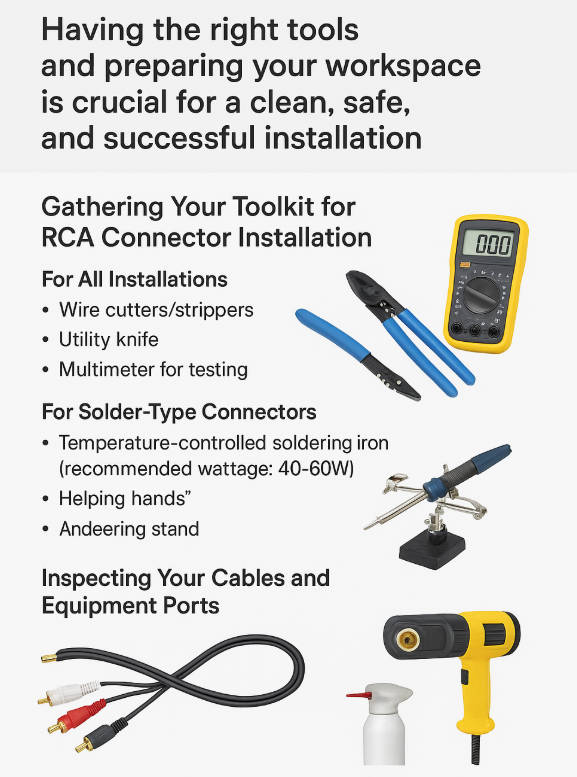

Gathering Your Toolkit for RCA Connector Installation
- For All Installations: Wire cutters/strippers, a utility knife, and a multimeter for testing.
- For Solder-Type Connectors: A temperature-controlled soldering iron (recommended wattage: 40-60W), high-quality rosin-core solder (60/40 or 63/37 leaded solder is easier to work with, but lead-free is also an option), a soldering stand, and a "helping hands" tool is highly recommended.
- For Solderless Connectors: Typically, only a screwdriver (often Phillips head) or a specific crimping tool is needed, depending on the connector design.
- Additional: Heat shrink tubing (of appropriate diameter) and a heat gun (or lighter, used very carefully) for strain relief and professional finishing on soldered connections. Electrical tape is a less ideal substitute.
Inspecting Your Cables and Equipment Ports
Before you begin, inspect the ends of your cable for any existing damage. Check the female RCA jacks on your amplifier, player, or other equipment for any debris, bent terminals, or signs of damage. A damaged jack can ruin a newly installed connector. Use compressed air to gently clean out dust if necessary.
Safety First: Power Down All Equipment
This is the most critical step. Always, without exception, power down and unplug all components from the wall outlet before connecting or disconnecting any cables. Plugging in an RCA cable while equipment is powered on can send a loud thump or pop through the speakers, which can damage both the speakers and the amplifier's sensitive output stages.
Step-by-Step Guide to Installing Solderless RCA Connectors
Solderless connectors offer a quick and tool-minimal path to a custom cable length. Precision is key to their reliability.
Preparing the Cable for Solderless Attachment
- Cut the Cable: Use sharp wire cutters to make a clean, perpendicular cut on the cable.
- Strip the Outer Jacket: Carefully use a wire stripper or utility knife to remove about 1/2 inch (12-13mm) of the outer plastic jacket. Be cautious not to nick the delicate braided shielding underneath.
- Prepare the Shield: Twist the bare braided shielding into a tight, neat pigtail. If there is a foil shield, usually you can fold it back over the braid. Some cables may have a bare drain wire; twist this together with the braid.
- Strip the Center Conductor: Strip about 3/16 inch (5mm) of insulation from the center conductor. Twist the strands of the center conductor together lightly if it is a stranded wire.
Assembling the Solderless Connector
- Disassemble the Connector: Unscrew and take apart the new RCA connector, identifying the different parts: the main body with set-screws, the center pin contact, and the strain relief collar.
- Thread the Strain Relief: Slide the outer strain relief collar onto the cable first. If you forget this step, you will have to disassemble everything later.
- Connect the Wires:
- Insert the prepared center conductor into the hole in the center pin contact and tighten its set-screw firmly with a screwdriver.
- Insert the prepared ground pigtail into the ground clamp on the connector body and tighten its set-screw firmly.
- Ensure no stray strands of the shield are touching the center pin, as this will cause a short circuit.
- Final Assembly: Slide the main connector body over the center pin assembly. Screw the strain relief collar onto the connector body, tightening it securely to clamp down on the cable's outer jacket.
Preliminary Testing of Your Solderless Connection
Before connecting to your expensive equipment, use a multimeter to test for short circuits and continuity.
- Set the multimeter to the resistance (Ohms) or continuity setting (which beeps).
- Touch one probe to the center pin of the new connector and the other probe to the outer metal sleeve. The meter should read "OL" (open loop) or infinity, and there should be no beep. This confirms there is no short circuit.
- Now, touch one probe to the center pin at one end of the cable and the other probe to the center pin at the other end. The meter should beep or show very low resistance (接近 0 Ohms), confirming continuity for the signal path. Repeat this test for the ground sleeves on both ends.
Step-by-Step Guide to Installing Solder-Type RCA Connectors (for Optimal Durability)
Soldering provides the most robust and reliable connection. It requires more skill but results in a superior cable assembly.
Preparing the Cable for Soldering
- Cut and Strip: Follow the same initial steps as for a solderless connector: make a clean cut, strip about 3/4 inch (19mm) of the outer jacket, twist the shielding into a pigtail, and strip about 3/16 inch (5mm) from the center conductor.
- "Tin" the Wires: This is a critical step. Apply a small amount of solder to the tip of your heated iron, then apply the iron to the twisted shield pigtail. Feed a small amount of solder onto the pigtail so it wicks into the braid, creating a solid, solder-coated wire. Repeat this process for the center conductor. This makes attaching them to the connector much easier.
- Add Heat Shrink: Slide a piece of heat shrink tubing (about 1 inch long) onto the cable. This will be used later for strain relief.

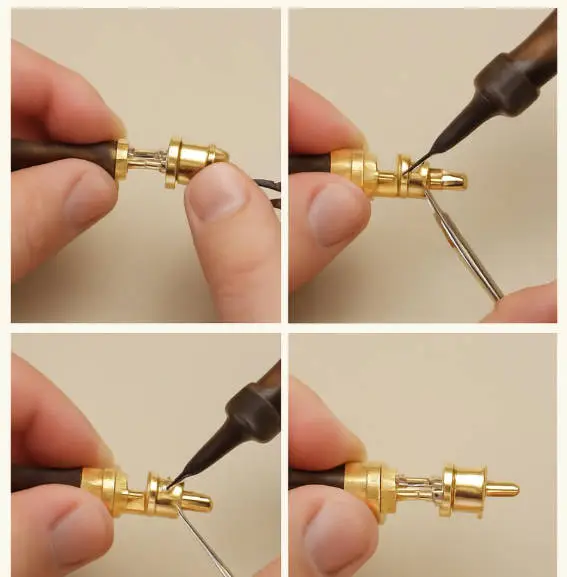

The Art of Soldering an RCA Connector
- Preheat the Connector: Disassemble the solder-type RCA connector. Use your soldering iron to briefly heat the center pin contact and the small cup on the back of the ground sheath. This helps the solder flow later.
- Solder the Center Conductor: Insert the tinned center conductor into the hole in the center pin. Apply the soldering iron to both the pin and the wire simultaneously for about 2-3 seconds, then feed a small amount of solder into the joint. The solder should flow smoothly and create a shiny, concave fillet. Remove the iron and hold the wire steady until the solder solidifies.
- Solder the Ground Pigtail: Route the tinned ground pigtail into the cup on the ground sheath. Apply the iron to the sheath and the wire, then feed solder into the cup until it is filled. Ensure a strong mechanical and electrical bond.
- Inspect: Look for cold joints (dull, lumpy, or blob-like solder). If you see one, reheat the joint until the solder flows properly. Ensure no solder has bridged between the center pin and the ground sheath.
Finishing Touches: Heat Shrink Application and Strain Relief
- Reassemble: Slide the dielectric insulator and the outer metal sheath over the soldered connections. Screw the strain relief collar onto the sheath.
- Apply Heat Shrink: Slide the pre-positioned heat shrink tubing over the back of the connector and the cable junction. Apply heat evenly with a heat gun until the tubing shrinks tightly, providing excellent strain relief and a professional finish.
Post-Soldering Testing for Quality Assurance
Perform the exact same multimeter tests for shorts and continuity as described in the solderless section. This final check is non-negotiable before connecting the cable to your system.

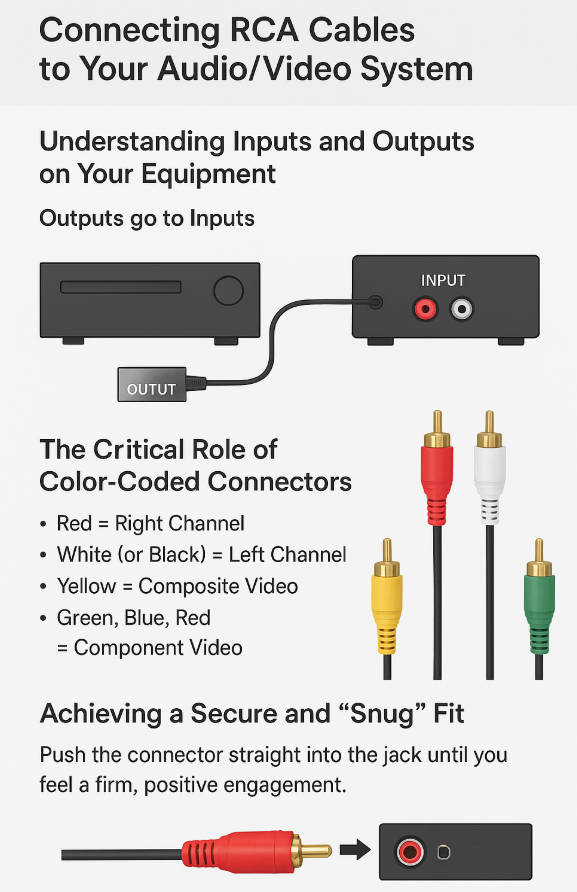

Connecting RCA Cables to Your Audio/Video System
With your perfectly installed connectors, proper connection to your system is the final step.
Understanding Inputs and Outputs on Your Equipment
The fundamental rule is: Outputs go to Inputs. The source device (e.g., CD player, phone) has OUTPUT jacks. The receiving device (e.g., amplifier, powered speakers) has INPUT jacks. Always connect an output to an input. Connecting an output to another output can damage equipment.
The Critical Role of Color-Coded Connectors
Color coding is your guide to maintaining correct channel separation and signal type.
- Audio (Stereo): Red = Right Channel; White (or Black) = Left Channel.
- Composite Video: Yellow.
- Component Video: Green (Y), Blue (Pb/Cb), Red (Pr/Cr).
- Subwoofer (LFE): Usually a single cable, often black or white.
Always match the color of the plug to the color of the jack. For mono applications, either channel can typically be used.
Achieving a Secure and "Snug" Fit
Push the connector straight into the jack until you feel a firm, positive engagement. It should be snug and not loose or wobbly. A loose connection can oxidize and cause signal problems. Avoid forcing it or bending the center pin.
Effective Cable Management Best Practices
- Avoid Tight Bends: Do not kink or sharply bend cables, especially near the connectors, as this can damage internal wires.
- Keep Away from Power Cables: Route your RCA cables away from AC power cords and power transformers to minimize the induction of 60Hz hum.
- Use Cable Ties Loosely: If bundling cables, use Velcro ties loosely to avoid compressing and potentially damaging the cables.
FAQ's
Q: Can I use any RCA cable for a digital coaxial audio connection?
A: While a standard RCA audio cable might work over very short distances, for reliable digital audio transmission you must use a cable specifically rated at 75 ohms. These cables are designed to maintain the impedance required for the digital signal, preventing reflections and data errors that can cause dropouts or complete signal failure.
Q: Why is there a humming sound coming from my speakers after I connected my new cables?
A: A persistent hum is almost always a ground loop issue or a broken shield connection in your cable. Ensure all your components are plugged into the same AC circuit. Double-check your RCA connector installation, ensuring the ground shield is securely connected to the connector's outer sleeve and that no shield strands are touching the center signal pin.
Q: Is it worth spending more on expensive, high-end RCA cables?
A: For standard analog audio connections over short to medium distances (e.g., less than 10 feet/3 meters), a well-constructed cable with good shielding and solid connectors is perfectly sufficient. Diminishing returns set in quickly. However, for very long runs, critical listening environments, or digital coaxial applications, investing in higher-quality, correctly specified cables can make a noticeable difference in noise rejection and signal integrity.
Q: How do I clean my RCA connectors if they get dirty or oxidized?
A: Use a dedicated electronic contact cleaner sprayed onto the connector and then plug/unplug it a few times to wipe the contacts clean. For light oxidation, a pencil eraser can gently clean the center pin. Isopropyl alcohol (90% ) on a cotton swab is also effective. Always ensure connectors are completely dry before use.
Q: My solder joint is dull and grainy-looking. What went wrong?
A: This is called a "cold solder joint." It occurs when the wire or connector terminal was not hot enough to properly melt the solder, causing it to flow poorly and create a weak, high-resistance connection. To fix it, reheat the joint thoroughly with your soldering iron until the solder becomes shiny and fluid again, then remove the heat and allow it to cool undisturbed.
