What's an OSCILLOSCOPE?
What Is an Oscilloscope?
An oscilloscope is an electronic test instrument that graphically displays varying signal voltages, usually as a two-dimensional plot of one or more signals as a function of time. It is used in various industries including electronics, automotive, telecommunications, and scientific research.
What Does an Oscilloscope Do?
An oscilloscope is a vital tool for observing how electrical signals behave over time. It is commonly used in circuit design, system diagnostics, and signal analysis. Engineers rely on oscilloscopes to measure voltage fluctuations, identify noise issues, and ensure signal integrity across analog and digital components. In production environments, oscilloscopes are used to validate product quality and compliance. From debugging microcontrollers to testing power supplies and high-speed serial interfaces, oscilloscopes enable precise insight into signal behavior that multimeters and other tools cannot offer.
Types of Oscilloscopes
| Type | Description | Typical Use Cases |
|---|---|---|
| Analog Oscilloscope | Uses CRT to display waveforms in real-time. | Basic waveform monitoring in labs or vintage equipment analysis. |
| Digital Oscilloscope (DSO) | Converts analog signals to digital and stores them in memory. | General-purpose waveform analysis, embedded systems debugging. |
| Mixed Signal Oscilloscope (MSO) | Includes digital channels in addition to analog ones. | Monitoring embedded digital/analog systems. |
| Mixed Domain Oscilloscope (MDO) | Combines time-domain and frequency-domain analysis. | RF systems, modulated signals, EMI diagnostics. |
| Handheld Oscilloscope | Portable and battery-operated with limited features. | Field diagnostics, automotive maintenance. |
| USB Oscilloscope | Connects to PC for display and analysis. | Cost-effective solutions for students and developers. |
| Automotive Oscilloscope | Specialized features for analyzing vehicle sensors and ignition signals. | Engine diagnostics, CAN/LIN bus analysis. |
What Is a Cathode Ray Oscilloscope?
A cathode ray oscilloscope (CRO) is a type of analog oscilloscope that uses a cathode ray tube (CRT) to display electrical waveforms. It operates by directing an electron beam across a phosphorescent screen, where the beam's vertical deflection represents voltage and horizontal deflection represents time. CROs offer real-time signal visualization with virtually zero latency, making them historically valuable for observing high-speed analog signals. Although largely replaced by digital models today, CROs remain important in education and certain legacy applications due to their simplicity, rugged design, and instant response.
How to Use an Oscilloscope
- Connect the probe to the oscilloscope and the test circuit.
- Set the vertical scale (volts/div) according to the expected signal level.
- Set the time base (sec/div) to match the expected frequency.
- Adjust trigger settings to stabilize the waveform.
- Use cursors or automated measurements to read signal parameters.
Comparison of Major Oscilloscope Brands
| Brand | Strengths | Popular Models |
|---|---|---|
| Tektronix | High accuracy, wide range from basic to advanced. | Tektronix TBS1000C, MDO3000, 5 Series MSO |
| Keysight | Excellent signal integrity and measurement automation. | InfiniiVision 1000X, 3000T, 6000X Series |
| Rigol | Affordable, feature-rich for entry-level users. | DS1054Z, MSO5000 Series |
| Siglent | Competitive performance in mid-range price. | SDS1104X-E, SDS2000X Plus |
| Hantek | USB-based options and cost-effective handhelds. | 6022BE, DSO2D10 |

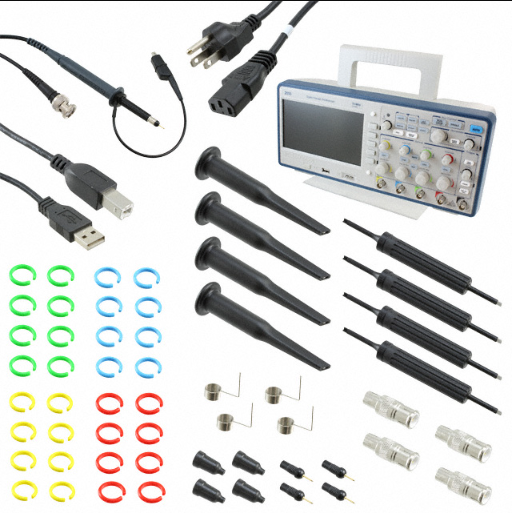

 OSCILLOSCOPE 12Bit 2 CH 100 MHZ
HOT
|

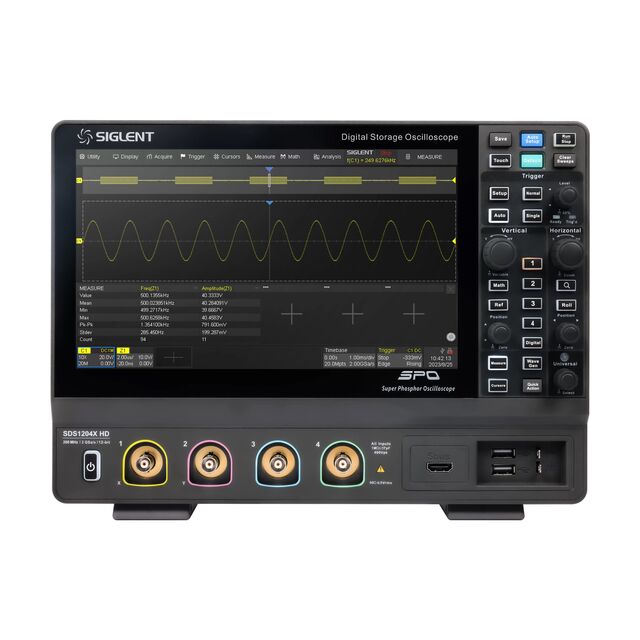

ULTRA PHOSPHOR DGTL OSCILLOSCOPE
HOT
|

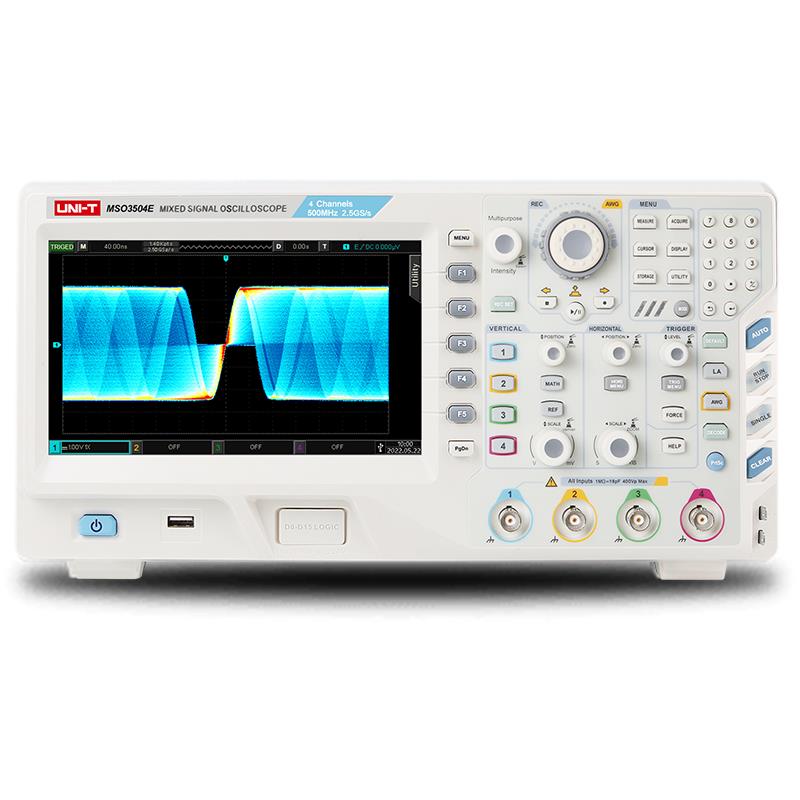

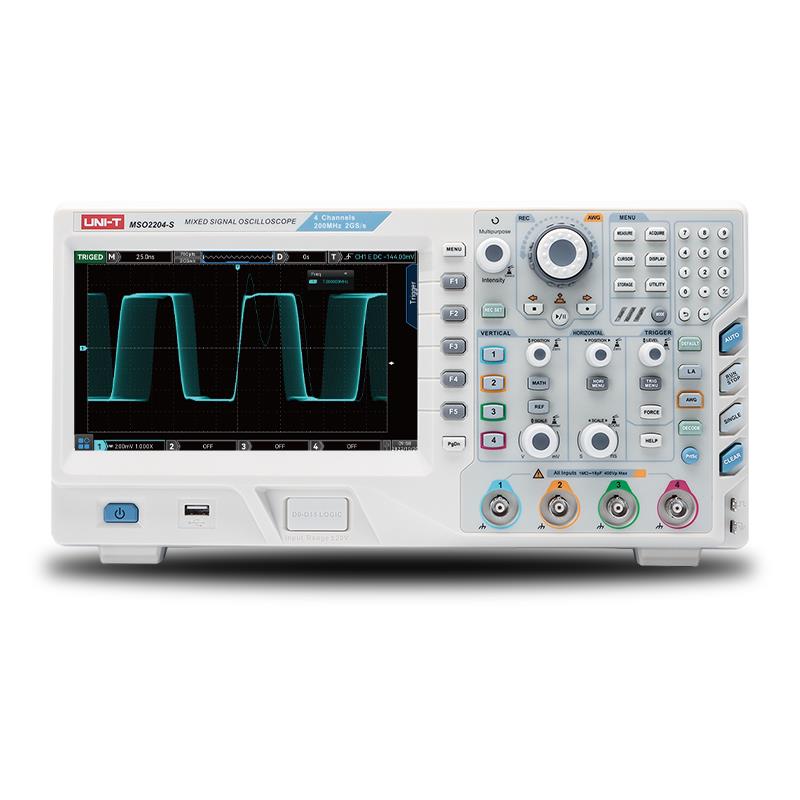

MIXED SIGNAL DGTL OSCILLOSCOPE
HOT
|
Frequently Asked Questions
What is an oscilloscope used for?
An oscilloscope is used to visualize electrical waveforms and analyze voltage versus time characteristics in electronic circuits. It helps identify issues like signal distortion, noise, or timing errors.
How does a digital oscilloscope differ from an analog one?
A digital oscilloscope converts analog signals into digital data using analog-to-digital converters (ADCs) and stores them in memory, allowing for advanced analysis and storage. An analog oscilloscope, on the other hand, displays real-time waveforms using a cathode ray tube (CRT) without digital processing.
What is a USB oscilloscope?
A USB oscilloscope is a compact device that connects to a PC via USB. It uses the computer's screen and processing power for waveform visualization and measurement, offering portability and affordability for basic testing applications.
What is a Tektronix oscilloscope USB?
This term refers to Tektronix oscilloscope models equipped with USB ports for exporting data, capturing screenshots, or enabling remote control via PC software. It enhances convenience and integration in modern test setups.
What are the advantages of a handheld oscilloscope?
Handheld oscilloscopes offer portability, battery-powered operation, and durability, making them ideal for field service engineers, automotive diagnostics, and maintenance technicians who need reliable tools outside the lab.
What is a cathode ray oscilloscope?
A cathode ray oscilloscope (CRO) is a type of analog scope that uses a CRT display to show electrical waveforms. While once a staple in labs, CROs have been largely replaced by digital scopes due to their limited functionality and bulky form factor.
How do I choose an oscilloscope?
Choosing an oscilloscope depends on factors like bandwidth, number of input channels, sampling rate, memory depth, and trigger features. Consider the types of signals you'll measure and ensure the scope’s specs align with your application needs.
How to choose the best oscilloscopes?
Selecting the best oscilloscope starts with understanding your application requirements. Key specifications to evaluate include bandwidth, sample rate, memory depth, rise time, and trigger functionality. For high-speed digital signals, a wide bandwidth and fast sampling rate are essential to capture fast transitions accurately. Engineers working in embedded systems may benefit from a mixed-signal oscilloscope (MSO) that combines analog and digital channels. Field technicians often prefer handheld or USB-based models for portability and ease of use. Always match the oscilloscope’s performance with the complexity of your signals—choosing the right type not only ensures accurate measurements but also improves workflow efficiency and long-term reliability.
Conclusion
Oscilloscopes remain essential for any professional working with electronic signals. Whether you're analyzing microcontroller outputs, diagnosing car electronics, or working in RF environments, understanding oscilloscope types, brands, and usage empowers you to make better design and troubleshooting decisions.
