The Ultimate Guide to 10k Resistors: Everything You Need to Know

Table of Contents

• Introduction to 10k Ohm Resistors
• What is a 10k Ohm Resistor?
• Types of 10k Resistors and Their Characteristics
• 10k Resistor Color Code Explanation
• Technical Specifications and Parameters
• Applications of 10k Resistors in Electronic Circuits
• How to Choose the Right 10k Resistor for Your Project
• 10k Pull-up and Pull-down Resistor Circuits
• Troubleshooting Common 10k Resistor Issues
• Frequently Asked Questions about 10k Resistors

Introduction to 10k Ohm Resistors

10k ohm resistors are among the most commonly used components in electronic circuits. With a resistance value of 10,000 ohms, these resistors serve critical functions in voltage division, current limiting, and signal conditioning across countless applications. The popularity of 10k resistors stems from their versatility, availability, and suitability for many analog and digital circuits. Whether you're working on simple educational projects or complex industrial systems, understanding the properties and proper use of 10k ohm resistors is essential for any electronics enthusiast or professional. This comprehensive guide explores everything you need to know about these fundamental components, from basic principles to advanced applications.

What is a 10k Ohm Resistor?

A 10k ohm resistor is a passive electrical component that implements electrical resistance as a circuit element.

Let's cut through the jargon - a 10k resistor is essentially the traffic cop of your electronic circuit. It controls how much electric current can flow through it. The "10k" means 10,000 ohms, which is the unit we use to measure electrical resistance. Think of it like a narrow pipe in a plumbing system - the narrower the pipe, the less water can flow through.

These little components are everywhere because they hit that sweet spot between not drawing too much current while still providing decent signal strength.

. These resistors work by limiting the flow of electric current in a circuit, following Ohm's Law (V = I × R), which states that the voltage (V) across a resistor is directly proportional to the current (I) flowing through it, with the resistance value (R) being the constant of proportionality.

10k resistors are manufactured using various technologies, each with specific characteristics, Here's the breakdown of what's inside different types:

Manufacturing Technology	Construction	Typical Applications	Advantages
Carbon Film	Carbon layer deposited on ceramic substrate	General purpose circuits, education projects	Low cost, wide availability
Metal Film	Metal alloy film on ceramic base	Precision circuits, measurement equipment	Better tolerance, lower noise
Thick Film	Ceramic substrate with resistive paste	Power applications, industrial controls	Higher power handling
Wirewound	Resistance wire wrapped around core	High-power applications, current sensing	Highest power rating, stability

The fundamental purpose of any resistor 10k ohm is to control current flow, divide voltages, and set time constants in combination with capacitors. The specific value of 10k ohms has become a standard in many circuit designs because it provides a good balance between current consumption and signal strength in typical operating voltages (5-12V).

Types of 10k Resistors and Their Characteristics

Not all 10k resistors are created equal. 10k ohm resistors come in various form factors and technologies, each suited to specific applications and environments. Depending on what you're building, you'll want to choose the right type.

Through-hole resistors are your classic components with wires coming out both ends - perfect for breadboards and hand-soldering. Surface mount (SMD) versions are those tiny rectangles that sit flat on PCBs - what you'll find in pretty much every modern gadget.

The main types of 10k resistors include:

• Through-hole resistors: Traditional components with axial or radial leads for PCB mounting
• Surface mount device (SMD) resistors: Compact components for automated assembly
• Power resistors: Designed to handle higher wattage (1W to 25W )
• Precision resistors: Feature tight tolerances (±0.01% or better) and low TCR
• Network resistors: Multiple resistors in a single package (e.g., SIP/DIP packages)

Different resistor technologies offer varying performance characteristics:

Resistor Type	Power Rating Range	Tolerance Available	Temperature Coefficient	Key Features
Carbon Composition	0.125W - 2W	±5% - ±20%	High (±1000 ppm/°C)	Good pulse handling, legacy technology
Carbon Film	0.125W - 5W	±1% - ±10%	Moderate (±500 ppm/°C)	Low cost, widely available
Metal Film	0.125W - 3W	±0.1% - ±2%	Low (±25 ppm/°C)	Low noise, high stability
Metal Oxide Film	0.5W - 10W	±1% - ±5%	Moderate (±300 ppm/°C)	Good high-temperature performance
Thick Film	0.125W - 25W	±1% - ±10%	Variable (±100 ppm/°C)	Cost-effective, various packages
Wirewound	3W - 100W	±1% - ±10%	Low (±75 ppm/°C)	High power, precision available
Foil Resistors	0.5W - 5W	±0.005%	Very low (±2 ppm/°C)	Highest precision, stable

For specialized applications, 10k ohm resistors may feature unique characteristics. High-temperature resistors can operate up to 180°C or more, while high-voltage variants can handle hundreds of volts. Current sense resistors offer very low resistance values but sometimes incorporate 10k values for monitoring circuits.

Pro tip: If you're working on something that needs to be precise (like measuring equipment), spring for metal film. For most hobbyist projects, carbon film will do just fine and save you some cash.

10k Resistor Color Code Explanation

Those colored stripes on resistors aren't just for decoration - they're actually telling you something important. Once you crack the code, you'll never look at resistors the same way again.

Through-hole resistors typically use a color band system to indicate their resistance value, tolerance, and sometimes temperature coefficient. For a 10k ohm resistor, the color code follows the standard resistor color coding system.

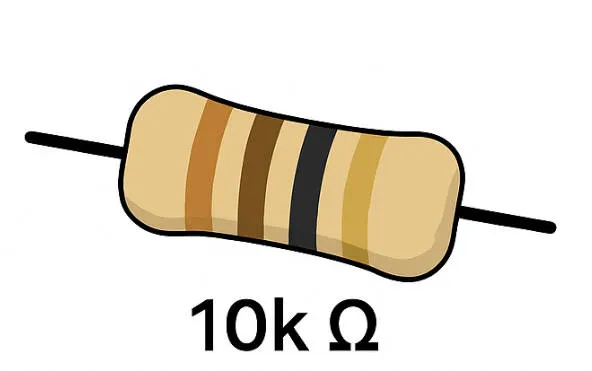

The standard color code for a 4-band 10k resistor is:

• Band 1 (Brown): First digit (1)
• Band 2 (Black): Second digit (0)
• Band 3 (Orange): Multiplier (×1,000)
• Band 4 (Gold or Silver): Tolerance (Gold = ±5%, Silver = ±10%)

For higher precision(1% tolerance resistor) 5-band 10k resistors:

• Band 1 (Brown): First digit (1)
• Band 2 (Black): Second digit (0)
• Band 3 (Black): Third digit (0)
• Band 4 (Red): Multiplier (×100)
• Band 5 (Brown, Red, Green, Blue, or Violet): Tolerance (±1%, ±2%, ±0.5%, ±0.25%, ±0.1%)

Some resistors include a sixth band indicating temperature coefficient, typically brown for ±100 ppm/°C, red for ±50 ppm/°C, or other colors for different coefficients.

Here's a comprehensive reference chart for resistor color codes:

Color	1st Band	2nd Band	3rd Band	Multiplier	Tolerance	Temperature Coefficient
Black	0	0	0	×1Ω	-	-
Brown	1	1	1	×10Ω	±1%	±100 ppm/°C
Red	2	2	2	×100Ω	±2%	±50 ppm/°C
Orange	3	3	3	×1kΩ	±0.05%	±15 ppm/°C
Yellow	4	4	4	×10kΩ	±0.02%	±25 ppm/°C
Green	5	5	5	×100kΩ	±0.5%	±20 ppm/°C
Blue	6	6	6	×1MΩ	±0.25%	±10 ppm/°C
Violet	7	7	7	×10MΩ	±0.1%	±5 ppm/°C
Gray	8	8	8	×100MΩ	±0.01%	±1 ppm/°C
White	9	9	9	×1GΩ	-	-
Gold	-	-	-	×0.1Ω	±5%	-
Silver	-	-	-	×0.01Ω	±10%	-

When reading resistor color codes, start with the band closest to the end of the resistor. If you have difficulty distinguishing which end to start from, remember that the tolerance band (gold or silver) is usually positioned to the right, and there's often a larger space between the multiplier and tolerance bands.

Quick trick: If you still find it difficult to understand resistors by their color codes, just use a multimeter—we won’t tell anyone!

Technical Specifications and Parameters

Selecting the appropriate 10k ohm resistor requires understanding various technical specifications beyond just resistance value. These parameters determine how the resistor will perform in different environments and applications.

Key specifications to consider when selecting 10k resistors:

• Resistance Value: The nominal resistance, measured in ohms (10kΩ = 10,000Ω)
• Tolerance: The permissible deviation from the nominal value, expressed as a percentage (common values: ±1%, ±5%, ±10%)
• Power Rating: The maximum power the resistor can dissipate without damage, measured in watts (common values: 0.125W, 0.25W, 0.5W, 1W, 2W, etc.)
• Temperature Coefficient of Resistance (TCR): How much the resistance changes with temperature, expressed in ppm/°C (parts per million per degree Celsius)
• Maximum Working Voltage: The highest voltage that can be applied across the resistor without breakdown
• Operating Temperature Range: The range of temperatures over which the resistor functions properly

Different resistor technologies offer varying performance across these parameters:

Parameter	Carbon Film	Metal Film	Thick Film	Wirewound	Precision Foil
Typical Tolerance	±5%	±1%	±1% - ±5%	±1% - ±5%	±0.001%
Typical TCR (ppm/°C)	±500	±50	±100	±75	±2
Power Range (W)	0.125-5	0.125-3	0.125-25	3-100	0.5-5
Max Operating Temp (°C)	120-150	155	180	200-350	125-150
Typical Applications	General purpose	Measurement, audio	Power supplies, industrial	Power applications, current sensing	Precision instruments

Additional considerations include:

• Voltage Coefficient: The change in resistance with applied voltage (typically small for most resistors)
• Frequency Response:
  • Wirewound resistors have poor high-frequency performance due to inductance
  • Thin film and carbon composition resistors perform better at high frequencies
• Noise:
  • Carbon composition resistors generate the most noise
  • Metal film and wirewound resistors are much quieter
• Stability:
  • Long-term resistance change under operating conditions
  • Metal film and wirewound offer the best stability

Understanding these parameters is essential when selecting 10k resistors for specific applications, especially in precision circuits or challenging environments.

Applications of 10k Resistors in Electronic Circuits

10k ohm resistors find applications across virtually every category of electronics. Their value represents a practical compromise between current consumption and signal levels in many circuit configurations.

Common applications of 10k resistors include:

• Voltage Dividers: Paired with other resistors to create specific voltage ratios
• Pull-up and Pull-down Resistors: Used in digital circuits to ensure defined logic levels
• Current Limiting: Protecting LEDs and other components from excessive current
• Biasing Transistors: Setting appropriate operating points in amplifier circuits
• Timing Circuits: Combined with capacitors to create RC time constants
• Feedback Networks: Setting gain in operational amplifier circuits
• Sensor Interface Circuits: Converting physical quantities to measurable voltages
• Filter Networks: Defining cutoff frequencies in active and passive filters

Specific application examples with 10k resistors:

Application	Circuit Type	Role of 10k Resistor	Alternative Values
Arduino Digital Input	Pull-up/Pull-down	Prevents floating input pins	4.7kΩ - 100kΩ
Voltage Reference	Voltage Divider	Creates intermediate voltage from supply	1kΩ - 100kΩ (depending on current)
Transistor Amplifier	Biasing	Sets base current for proper operation	1kΩ - 470kΩ (depending on gain)
LED Indicator	Current Limiting	Limits current through LED (with 5V supply)	220Ω - 1kΩ (for brighter LED)
RC Timing Circuit	Timing	Sets time constant with capacitor (τ = R×C)	1kΩ - 1MΩ (depending on desired time)
Op-Amp Non-inverting Amp	Feedback	Sets gain with other resistor (G = 1 R2/R1)	1kΩ - 100kΩ (depending on gain)
Light Sensor Interface	Voltage Divider	Pairs with LDR to create light-dependent voltage	1kΩ - 100kΩ (depending on LDR)
Low-Pass Filter	Filtering	Sets cutoff frequency with capacitor (f_c = 1/(2πRC))	1kΩ - 100kΩ (depending on frequency)

In microcontroller applications, 10k pull up resistor and 10k pull down resistor configurations are particularly common. These ensure that digital input pins maintain a defined logic state (high or low) when not being actively driven by another device. This prevents erratic behavior caused by floating inputs picking up environmental noise.

For analog sensors such as thermistors, photoresistors, or flex sensors, 10k resistors often serve as the fixed element in voltage divider circuits. The sensor acts as the variable resistance, creating a voltage output that changes with the measured physical property. The 10k value is frequently chosen because it matches the resistance of many sensors at their midpoint operating range.

Special-Purpose Resistors: Thermistors, Varistors & Photoresistors Explained

How to Choose the Right 10k Resistor for Your Project

Selecting the appropriate 10k ohm resistor for a specific application involves considering multiple factors to ensure proper operation, reliability, and cost-effectiveness.

Choosing the right 10k resistor isn't rocket science, but here's what I consider every time I reach for one:

• Power Requirements:
  • Calculate expected power dissipation: P = V²/R or P = I²R
  • Choose a resistor with at least 2× the expected power dissipation
  • Consider derating at elevated temperatures
• Precision Requirements:
  • For most applications, ±5% tolerance is sufficient
  • For precision circuits, consider ±1% or better
  • Remember that tolerance affects circuit performance
• Environmental Factors:
  • Temperature range of operation
  • Humidity and contamination concerns
  • Mechanical stress and vibration
• Frequency Considerations:
  • For high-frequency applications, avoid wirewound resistors
  • Consider parasitic inductance and capacitance
• Size Constraints:
  • Through-hole vs. surface mount selection
  • Available board space and height restrictions
• Cost Factors:
  • Standard tolerance resistors are most economical
  • Precision and power resistors command premium prices

Selection guide for different applications:

Application Type	Recommended Resistor Type	Tolerance	Power Rating	Special Considerations
General Purpose	Carbon Film or Thick Film	±5%	0.125W-0.5W	Cost-effective solution
Precision Measurement	Metal Film or Precision Thick Film	±0.1%-±1%	0.125W-0.5W	Low TCR, high stability
Power Applications	Wirewound or Thick Film Power	±1%-±5%	1W-25W	Adequate heat sinking
High Frequency	Thin Film or Metal Film	±1%	0.125W-0.5W	Low parasitic inductance
High Voltage	Specialty HV Resistors	±1%-±5%	0.5W-2W	Adequate creepage distance
High Temperature	Specialty High-Temp Resistors	±1%-±5%	0.25W-2W	Rated for >200°C operation

If you have any questions, please refer to the manufacturer’s datasheet for specific recommendations. Many manufacturers provide application notes and selection guides for their resistor products.

Bettlink includes product parameters and datasheets, allowing you to better understand the performance of the resistors you need. Feel free to contact Bettlink for further assistance.

10k Pull-up and Pull-down Resistor Circuits

Pull-up and pull-down resistors are essential components in digital electronics, ensuring that signal lines maintain a defined logic level when not being actively driven. The 10k ohm resistor is a popular choice for these applications, offering a good balance between current consumption and noise immunity.

Pull-up resistors are connected between a signal line and the positive supply voltage (Vcc). They ensure the signal defaults to a high logic level when no device is actively pulling it low.

Pull-down resistors are connected between a signal line and ground. They ensure the signal defaults to a low logic level when no device is actively pulling it high.

Why 10k is a common value for pull-up/down applications:

• Current consumption: With 5V supply, a 10k resistor draws 0.5mA (I = V/R = 5/10000)
• Noise immunity: Lower resistance values provide better noise immunity but higher current draw
• Switch rating: Suitable for most mechanical switches and digital outputs
• Speed consideration: Affects rise time in conjunction with circuit capacitance

Comparison of common pull-up/down resistor values:

Resistor Value	Current Draw (at 5V)	Noise Immunity	Rise Time Impact	Typical Applications
1kΩ	5mA	Excellent	Fast	High-speed buses, I²C
4.7kΩ	~1mA	Very Good	Fast	I²C, general purpose
10kΩ	0.5mA	Good	Moderate	General digital IO, switches
47kΩ	~0.1mA	Fair	Slow	Low-power applications
100kΩ	0.05mA	Poor	Very Slow	Battery-powered devices

For specific bus protocols, recommended values are:

• I²C Bus: Typically 2.2kΩ-10kΩ (depending on bus speed and capacitance)
• SPI Bus: Usually not required (active drive both ways)
• GPIO Inputs: 4.7kΩ-100kΩ (10kΩ is a common default value)
• Mechanical Switches: 1kΩ-10kΩ (10kΩ balances current and debouncing)

When designing with 10k pull up resistor or 10k pull down resistor configurations, consider the following design tips:

• Place pull resistors close to the receiving device to minimize noise pickup
• For bidirectional buses like I²C, use a single pull-up resistor for each line
• In high-speed applications, consider lower values (4.7kΩ or less) for faster rise times
• In battery-powered devices, consider higher values (47kΩ-100kΩ) to reduce current draw
• For critical applications, calculate the exact value based on worst-case scenarios

Many microcontrollers include internal pull-up and sometimes pull-down resistors that can be enabled through software. These typically range from 20kΩ to 100kΩ. While convenient, they may not be suitable for all applications, especially those with high bus capacitance or noisy environments. In such cases, external 10k resistors often provide better performance.

Troubleshooting Common 10k Resistor Issues

While resistors are generally reliable components, various issues can arise with 10k ohm resistors in electronic circuits. Understanding these potential problems and how to diagnose them is essential for effective troubleshooting.

Common issues with 10k resistors:

• Incorrect resistance value:
  • Manufacturing defects (rare with reputable suppliers)
  • Overheating causing permanent value shift
  • Physical damage from mechanical stress
• Overheating and damage:
  • Exceeding power rating
  • Inadequate heat dissipation
  • High ambient temperature without proper derating
• Intermittent connections:
  • Poor solder joints
  • Lead damage or corrosion
  • Internal connection problems (especially in wirewound types)
• Noise issues:
  • Carbon composition resistors are particularly noisy
  • Inadequate filtering in sensitive circuits
• Frequency-related problems:
  • Parasitic effects in high-frequency applications
  • Wirewound resistors acting as inductors

Troubleshooting guide for resistor-related circuit problems:

Symptom	Possible Causes	Testing Method	Solutions
Circuit not functioning	Open resistor, wrong value installed	Visual inspection, resistance measurement	Replace resistor, verify value
Overheating component	Overloaded resistor, incorrect value	Temperature measurement, power calculation	Use higher wattage resistor, improve ventilation
Inaccurate readings	Resistor out of tolerance, temperature effects	Precision resistance measurement	Use higher tolerance resistor, control temperature
Intermittent operation	Poor connection, cracked resistor	Visual inspection, tap test	Resolder or replace resistor
Noisy signal	High-noise resistor type, poor filtering	Oscilloscope observation	Use metal film resistor, add filtering
Frequency-dependent behavior	Parasitic inductance/capacitance	Frequency response analysis	Use appropriate resistor type for frequency

When measuring resistor 10k ohm values during troubleshooting:

• Always disconnect at least one end of the resistor from the circuit for accurate measurement
• Be aware that some digital multimeters may not accurately measure high-value resistors
• Consider the effect of your body resistance when holding resistor leads
• For precision measurements, use four-wire (Kelvin) measurement techniques

Prevention is often the best approach to resistor-related problems:

• Always calculate power dissipation and apply adequate derating
• Choose the appropriate resistor type for the application
• Use proper soldering techniques and avoid mechanical stress
• Consider environmental factors such as temperature and humidity
• Implement protective circuits for overvoltage or overcurrent conditions

Pro tip: Always keep a assortment of 10k resistors in different types on hand. You never know when you'll need to swap one out during troubleshooting.Bettlink offers a wide range of resistors in stock, giving you the flexibility to choose exactly what you need.

Frequently Asked Questions about 10k Resistors

Q: What does the "k" stand for in 10k resistor?
A: The "k" represents kilo-ohms, meaning thousands of ohms. Therefore, a 10k resistor has a resistance of 10,000 ohms.

Q: Can I use a 10k resistor for LED current limiting?
A: Technically yes, but practically no. With a typical 5V supply, you'd only get about 0.3mA(I = (5-2)/10000) through the LED - barely visible. Lower values (220Ω-1kΩ) are typically used for LED current limiting.

Q: What is the power rating of a standard through-hole 10k resistor?
A: Standard through-hole carbon film resistors are typically rated for 0.25W or 0.5W. Metal film versions are commonly available in 0.125W, 0.25W, and 0.5W ratings. Higher power options are available for special applications.

Q: How accurate are 10k resistors?
A: Standard 10k resistors typically have tolerances of ±5% or ±1%, meaning their actual resistance can vary between 9.5k-10.5kΩ (for ±5%) or 9.9k-10.1kΩ (for ±1%). Precision resistors are available with much tighter tolerances up to ±0.01%.

Q: Why are 10k resistors commonly used with sensors?
A: Many sensors (thermistors, photoresistors, etc.) have resistance values in the kilo-ohm range at their midpoint operation. Using a 10k resistor in a voltage divider configuration with these sensors provides a good voltage swing across the expected measurement range.

Q: Can I parallel multiple 10k resistors to create different values?
A: Yes. Two 10k resistors in parallel create 5kΩ resistance (R_total = R/n). Three in parallel create approximately 3.33kΩ, and so on. This technique can be useful when a specific non-standard value is needed.

Q: What is the color code for a 10k resistor?
A: For a standard 4-band ±5% 10k resistor: Brown (1), Black (0), Orange (×1000), Gold (±5%). For a 5-band ±1% 10k resistor: Brown (1), Black (0), Black (0), Red (×100), Brown (±1%).

Q: Are 10k resistors suitable for high-frequency applications?
A: It depends on the resistor technology. Carbon composition and metal film resistors generally perform better at high frequencies than wirewound resistors, which have significant inductance. For very high frequencies, special RF resistors may be necessary.

Q: How do I know if a 10k resistor is damaged?
A: Visibly, damaged resistors may show discoloration, cracking, or charring. Electrically, they may measure significantly different from their rated value or show infinite resistance (open circuit). In some cases, resistors can fail short circuit, though this is less common.

Q: Can I substitute a 10k resistor with a different value?
A: It depends on the circuit. In some cases (like pull-up/pull-down resistors), values within a factor of 2-3 may work. In precision circuits (like timing or measurement circuits), the exact value is often critical. Always consult the circuit design requirements before substituting values.
