RCA connectors are among the most recognizable and enduring components in consumer and professional electronics. Even if you do not know them by name, you have likely encountered the familiar red, white, and yellow plugs that have been a staple of home entertainment systems for decades. Originally introduced in the 1940s, RCA connectors remain relevant in the modern era despite the rise of digital alternatives such as HDMI and USB-C. This article provides a comprehensive exploration of RCA connectors, their history, construction, variations, and ongoing importance in audio and video applications.
Introduction to RCA Connectors
The RCA connector, sometimes referred to as a phono connector or phono plug, is designed for the transmission of analog audio and video signals. It consists of a central male pin that carries the signal and an outer metal sleeve that provides grounding. The design is simple yet robust, allowing easy connection and disconnection without the need for specialized tools. The connector has become synonymous with consumer-grade audio and video equipment due to its affordability, versatility, and standardized color-coding system.

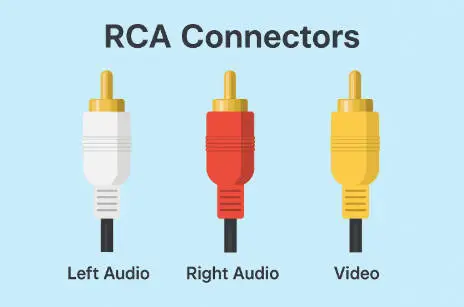

Color coding is one of the most user-friendly aspects of RCA connectors. Typically, red is used for the right audio channel, white (or black) for the left audio channel, and yellow for composite video. This intuitive design minimizes errors and ensures compatibility across a wide range of devices. Over time, additional color codes have been introduced for component video and other applications, but the basic three-color system remains widely recognized.
Historical Development of RCA Connectors
The RCA connector was introduced by the Radio Corporation of America in the 1940s as a convenient method for connecting phonographs to amplifiers. At the time, audio technology was undergoing rapid development, and a standardized connector was needed to simplify consumer use. RCA’s design offered a low-cost solution that could be mass-produced and easily adopted across a wide spectrum of audio equipment.
In the decades that followed, RCA connectors spread beyond audio systems and became a standard interface for televisions, VCRs, game consoles, and other consumer electronics. During the rise of home entertainment systems in the 1970s and 1980s, RCA connectors were virtually universal, cementing their role in the electronics industry. Although digital connections have since gained prominence, RCA remains widely used due to its backward compatibility with legacy equipment.
Construction and Technical Design
RCA connectors are deceptively simple in appearance, but their technical design is highly effective for analog signal transmission. The key components include:
- Central Pin: The male plug’s pin carries the positive signal. It must maintain firm contact with the corresponding female jack to ensure signal integrity.
- Outer Shield: The cylindrical sleeve acts as the ground connection, reducing electromagnetic interference and completing the circuit.
- Insulation: A layer of insulating material separates the signal pin from the ground sleeve to prevent short circuits.
- Connector Housing: Often made of plastic or metal, the housing provides durability and strain relief.
Materials vary according to cost and application. Entry-level RCA cables typically use nickel-plated brass, while high-performance cables may feature gold-plated connectors to reduce oxidation and maintain long-term conductivity. Shielding is another critical factor: better-shielded cables minimize noise and crosstalk, which is especially important for professional audio environments.
Types and Variations of RCA Connectors
Not all RCA connectors are identical. Over the years, numerous variations have been introduced to accommodate different use cases. Common types include:
- Straight RCA Connectors: The most common type, suitable for most applications.
- Right-Angle RCA Connectors: Useful in tight spaces where cables must bend without excessive strain.
- Gold-Plated RCA Connectors: Preferred for high-fidelity systems due to improved resistance to corrosion.
- RCA Splitters: Allow one signal to be distributed to two outputs, often used in car audio or home theater systems.
RCA connectors are also found in different configurations, including stereo audio cables (red and white) and component video cables (red, green, and blue). The modular nature of the design allows them to be adapted for a wide range of analog signal formats.
Why Color Coding Matters
The color-coding system associated with RCA connectors is not arbitrary; it represents an industry-wide standard that simplifies setup and reduces errors. For example:
- Red: Right channel audio
- White or Black: Left channel audio
- Yellow: Composite video
- Green, Blue, Red: Component video (Y, Pb, Pr)
This standardized scheme ensures that users can easily connect devices without confusion, even in low-light conditions behind entertainment centers. It is one of the reasons RCA connectors achieved such widespread adoption and remained relevant for so long.
Common Applications of RCA Connectors
RCA connectors are versatile and have been used in countless applications across consumer and professional electronics. Typical uses include:
- Home Audio Systems: Connecting CD players, turntables, and amplifiers.
- Televisions and VCRs: Carrying composite video and stereo audio signals.
- Game Consoles: Classic systems such as the PlayStation 2 and Nintendo 64 relied heavily on RCA connections.
- Car Audio: Linking head units to amplifiers and subwoofers.
- Professional Audio Equipment: Found in recording studios and DJ setups where reliability is key.
- Backup Cameras: Providing video feed from a camera to a vehicle display.
The adaptability of RCA connectors across such varied devices is a testament to their enduring design.
Adapters and Conversions
As newer technologies emerged, adapters were developed to bridge RCA connectors with modern interfaces. Common conversions include:
- RCA to HDMI converters for connecting legacy devices to modern televisions.
- RCA to 3.5mm adapters for portable audio equipment.
- RCA to USB adapters for digitizing analog audio and video content.
These adapters extend the life of older equipment and allow it to coexist with current digital ecosystems. For many consumers, this represents a cost-effective alternative to complete system upgrades.
Selecting the Right RCA Cable
Choosing an RCA cable requires consideration of several factors:
- Cable Length: Longer cables introduce more resistance and potential signal loss. Use the shortest cable necessary for your setup.
- Build Quality: Well-constructed cables with thicker insulation and better shielding last longer and perform better.
- Connector Type: Gold-plated connectors are recommended in humid environments to reduce corrosion.
- Shielding: High-quality shielding prevents interference, ensuring cleaner audio and video signals.
While premium cables are marketed heavily, mid-range RCA cables often provide the best balance between cost and performance.
Troubleshooting and Maintenance
Despite their simplicity, RCA connections are not immune to problems. Common issues and solutions include:
- No Signal: Ensure the connectors are fully inserted and check for bent pins.
- Static or Noise: Replace damaged cables and inspect for poor shielding.
- Video Distortion: Try a different cable, as older ones may degrade over time.
- Corrosion: Clean connectors with isopropyl alcohol to restore conductivity.
Most RCA-related problems stem from physical wear rather than electronic faults, making them relatively easy to diagnose and resolve.
DIY and Customization
For enthusiasts, soldering RCA connectors onto custom cables is a rewarding way to build tailored audio or video setups. Required tools include a soldering iron, solder wire, and wire strippers. The process involves stripping cable insulation, attaching wires to the RCA terminals, and carefully soldering connections to ensure durability and signal quality.
Custom RCA cables are popular among audiophiles and DIY hobbyists seeking specific lengths, shielding levels, or connector materials. A properly soldered connection can outperform mass-produced cables, especially in high-fidelity environments.
At Bettlink, we provide a wide range of high-quality electronic components and connectors, including RCA jacks, cables, and accessories, to support both professionals and hobbyists. Whether you are building a custom audio system, upgrading your video setup, or simply looking for reliable parts, Bettlink makes it easy to source what you need. Our commitment to quality and global distribution ensures that you can focus on your projects with confidence, knowing you have access to trusted components.
Why RCA Connectors Remain Relevant
In an era dominated by digital connections, RCA connectors might appear outdated, yet they persist for several reasons:
- Cost-Effectiveness: They are inexpensive to manufacture and purchase.
- Simplicity: Their mechanical design is straightforward and reliable.
- Legacy Equipment: Countless existing devices rely on RCA connections, ensuring ongoing demand.
Like the common screwdriver, RCA connectors are an essential tool—simple, reliable, and universally available.
Frequently Asked Questions (FAQ)
Q: Can RCA cables transmit high-definition video?
A: Standard yellow composite RCA cables cannot. High-definition video requires component RCA cables (red, green, blue) or a converter such as RCA to HDMI.
Q: Why do some RCA cables have multiple connectors?
A: Extra connectors are used for component video, surround sound, or multi-channel audio setups.
Q: Are expensive RCA cables worth the price?
A: For most users, mid-range cables perform just as well as premium models. Only specialized environments may benefit from high-end options.
Q: Can RCA cables carry digital signals?
A: While primarily used for analog, some RCA-style connectors are designed for digital coaxial audio transmission.
Conclusion
RCA connectors have earned their place as one of the most enduring technologies in consumer electronics. Their straightforward design, affordability, and adaptability have allowed them to thrive for over 80 years. Whether used in vintage stereos, modern car audio systems, or professional recording studios, RCA connectors continue to deliver reliable performance. In a world where digital technologies rapidly evolve, RCA stands as a reminder that simple solutions can remain indispensable. For engineers, hobbyists, and everyday consumers alike, the RCA connector is more than just a piece of hardware—it is a timeless standard of connectivity.
