CSHC221-0538A001R1AF

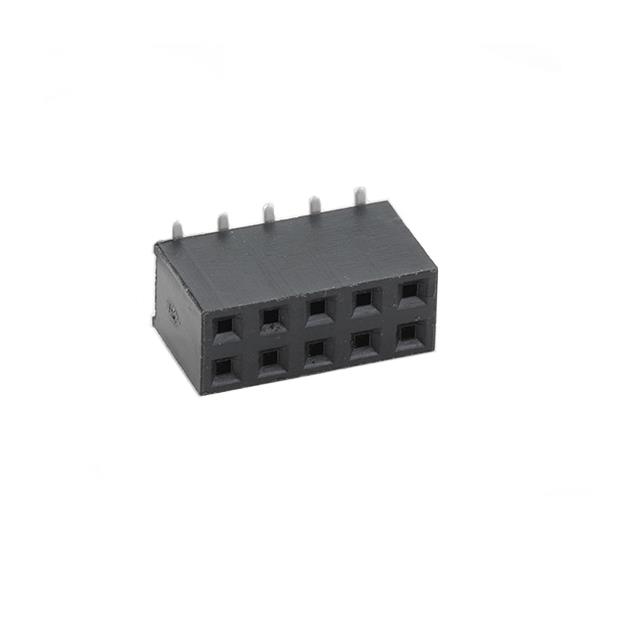

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Greenconn CSHC221-0538A001R1AF

2.54MM PITCH HEADER DUAL ROWS SM

Mfr Part No.: CSHC221-0538A001R1AF

Manufacturer : Greenconn

Internal Code: 1042-314-5848059

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Rectangular Connectors - Headers, Male Pins
Manufacturer	Greenconn Technology
Series	CSHC221
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Connector Type	Header
Contact Type	Female Socket
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	-
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	-
Contact Length - Post	-

Attribute Name	Attribute Value
Overall Contact Length	-
Insulation Height	0.280" (7.10mm)
Contact Shape	Square
Contact Finish - Mating	-
Contact Finish Thickness - Mating	-
Contact Finish - Post	-
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon, Halogen Free
Features	Pick and Place
Operating Temperature	-40°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-

Resource Type	Link
Product Drawings	CSHC221-zzzzA001R1Ax Drawing

Attribute	Description
RoHS Status	ROHS3 Compliant
REACH Status	See Individual Parts
Moisture Sensitivity Level (MSL)	1 (Unlimited)
HTSUS	8536.69.4040
ECCN	EAR99
