FH52E-18S-0.5SH(99)

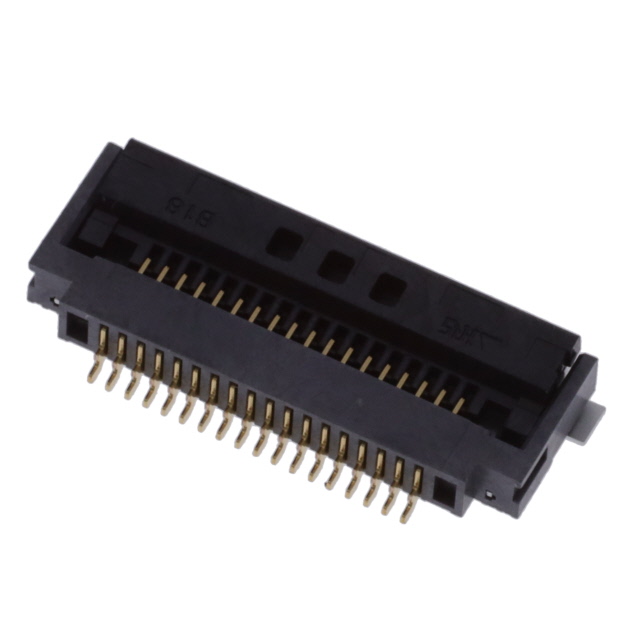

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Hirose Electric Co Ltd FH52E-18S-0.5SH(99)

CONN FFC BOTTOM 18POS 0.5MM R/A

Mfr Part No.: FH52E-18S-0.5SH(99)

Manufacturer : Hirose Electric Co Ltd

Internal Code: 1100-399-6897456

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

489 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 500

Total:$2.05

Qty	Unit Price	Ext Price
1+	$2.04526	$2.05
10+	$1.85932	$18.59
100+	$1.7058	$170.59
500+	$1.57945	$789.73
1000+	$1.47612	$1476.12
3000+	$1.39256	$4177.68

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	FFC, FPC (Flat Flexible) Connectors - Assemblies
Manufacturer	Hirose Electric Co., Ltd.
Series	FH52E
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	18
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.079" (2.00mm)
Locking Feature	Flip Lock

Attribute Name	Attribute Value
Cable End Type	Tabbed
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Operating Temperature	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	1.25µin (0.03µm)
Housing Color	Gray
Actuator Color	Black
Mating Cycles	20

Resource Type	Link
Datasheets	FH52 Series Datasheet
HTML Datasheet	FH52 Series Datasheet

Attribute	Description
HTSUS	8536.69.4051
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
