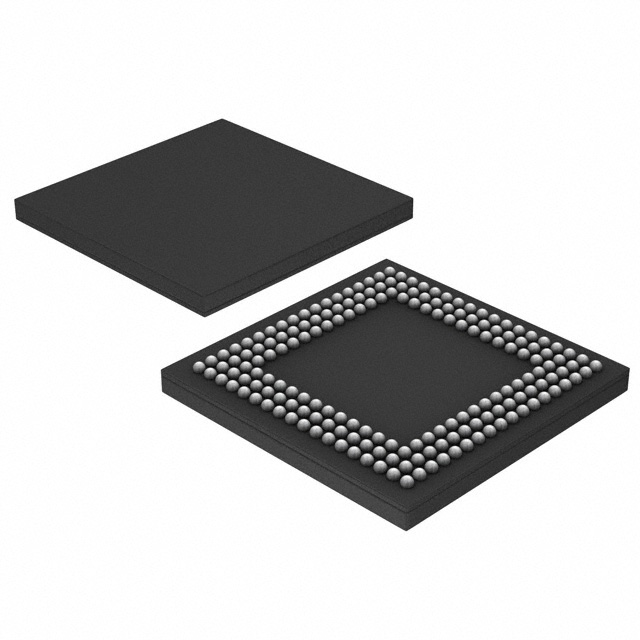

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

NXP USA Inc. LPC54618J512ET180E

IC MCU 32BIT 512KB FLSH 180TFBGA

Mfr Part No.: LPC54618J512ET180E

Manufacturer : NXP USA Inc.

Internal Code: 1778-685-13448311

Package : 180-TFBGA

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Embedded - Microcontrollers
Manufacturer	NXP Semiconductors
Series	LPC546xx
Packaging	Tray
Part Status	Active
Programmable	Not Verified
Core Processor	ARM® Cortex®-M4
Core Size	32-Bit Single-Core
Speed	180MHz
Connectivity	CANbus, Ethernet, I2C, SPI, UART/USART, USB
Peripherals	Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Number of I/O	145

Attribute Name	Attribute Value
Program Memory Size	512KB (512K x 8)
Program Memory Type	FLASH
EEPROM Size	16K x 8
RAM Size	200K x 8
Voltage - Supply (Vcc/Vdd)	1.71V ~ 3.6V
Data Converters	A/D 12x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	180-TFBGA (12x12)
Package / Case	180-TFBGA

Resource Type	Link
Datasheets	LPC546xx Datasheet LPC Microcintrollers Brochure LPC546xx MCU Family Fact Sheet
Environmental Information	NXP USA Inc RoHS Cert NXP USA Inc REACH
Errata	LPC546xx Errata
HTML Datasheet	LPC Microcintrollers Brochure LPC546xx MCU Family Fact Sheet LPC546xx Datasheet
PCN Design/Specification	LPC54 Series ERRATA 03/Feb/2024
PCN Packaging	Package Changes 17/Jun/2021 Mult Dev Pkg Seal 15/Dec/2020

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	3A991A2
HTSUS	8542.31.0025

Others include "LPC54" parts

The following parts include 'LPC54', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
LPC54S018-EVK	NXP USA Inc.	Contact us for a quote	-	LPCXPRESSO LPC54S018 EVAL BRD
LPC54S018M-EVK	NXP USA Inc.	2 Available	-	LPCXPRESSO LPC54S018M EVAL BRD
LPC54016JET180	NXP USA Inc.	1184 Available	180-TFBGA	IC MCU 32BIT ROMLESS 180TFBGA
LPC54016JET180E	NXP USA Inc.	Contact us for a quote	180-TFBGA	IC MCU 32BIT ROMLESS 180TFBGA
LPC54018JBD208E	NXP USA Inc.	72 Available	208-LQFP	IC MCU 32BIT ROMLESS 208LQFP
LPC54S016JET180	NXP USA Inc.	127 Available	180-TFBGA	IC MCU 32BIT ROMLESS 180TFBGA
LPC54S016JET180E	NXP USA Inc.	132 Available	180-TFBGA	IC MCU 32BIT ROMLESS 180TFBGA
LPC54016JBD208MP	NXP USA Inc.	Contact us for a quote	208-LQFP	LPC54016JBD208
LPC54S016JET100E	NXP USA Inc.	226 Available	100-TFBGA	IC MCU 32BIT ROMLESS 100TFBGA
LPC54016JBD208K	NXP USA Inc.	Contact us for a quote	208-LQFP	LPC54016JBD208
LPC54S016JBD100	NXP USA Inc.	Contact us for a quote	100-LQFP	IC MCU 32BIT ROMLESS 100LQFP
LPC54S018JET180	Flip Electronics	972 Available	-	RISC Microcontroller
LPC54016JBD100E	NXP USA Inc.	25 Available	100-LQFP	IC MCU 32BIT ROMLESS 100LQFP
LPC54016JET100E	NXP USA Inc.	6421 Available	100-TFBGA	IC MCU 32BIT ROMLESS 100TFBGA
LPC54018JET180E	NXP USA Inc.	Contact us for a quote	180-TFBGA	IC MCU 32BIT ROMLESS 180TFBGA
LPC54005JET100E	NXP USA Inc.	275 Available	100-TFBGA	IC MCU 32BIT ROMLESS 100TFBGA
LPC54016JBD100Y	NXP USA Inc.	Contact us for a quote	100-LQFP	LPC54016JBD100
LPC54016JBD208E	NXP USA Inc.	17 Available	208-LQFP	IC MCU 32BIT ROMLESS 208LQFP
LPC54005JBD100E	NXP USA Inc.	84 Available	100-LQFP	IC MCU 32BIT ROMLESS 100LQFP
LPC54018J4MET180E	NXP USA Inc.	203 Available	180-TFBGA	IC MCU 32BIT 4MB FLASH 180TFBGA
