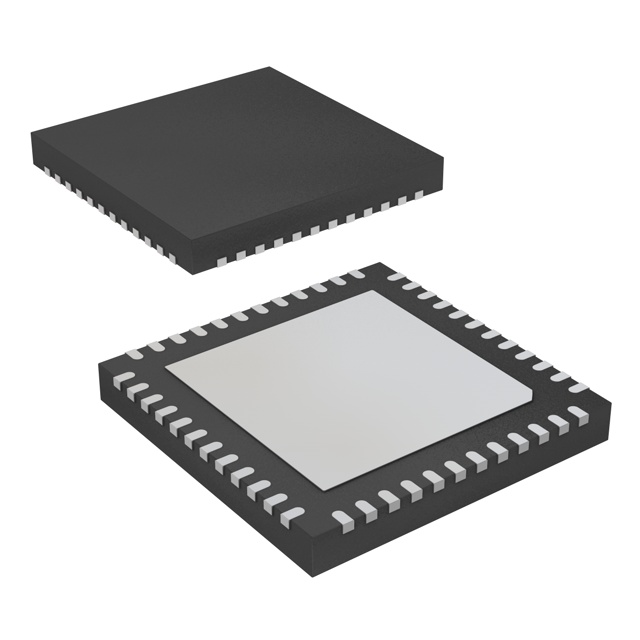

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Texas Instruments LM3S316-IGZ25-C2T

IC MCU 32BIT 16KB FLASH 48VQFN

Mfr Part No.: LM3S316-IGZ25-C2T

Manufacturer : Texas Instruments

Internal Code: 2495-685-13421805

Package : 48-VFQFN Exposed Pad

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Embedded - Microcontrollers
Manufacturer	Texas Instruments
Series	Stellaris® ARM® Cortex®-M3S 300
Packaging	Tape & Reel (TR)
Part Status	Discontinued
Programmable	Not Verified
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit Single-Core
Speed	25MHz
Connectivity	I2C, Microwire, SPI, SSI, UART/USART
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O	32

Attribute Name	Attribute Value
Program Memory Size	16KB (16K x 8)
Program Memory Type	FLASH
EEPROM Size	-
RAM Size	4K x 8
Voltage - Supply (Vcc/Vdd)	3V ~ 3.6V
Data Converters	A/D 4x10b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	48-VQFN (7x7)
Package / Case	48-VFQFN Exposed Pad

Resource Type	Link
Datasheets	LM3S316-IQN25-C2

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	3A991A2
HTSUS	8542.31.0025

Others include "LM3S3" parts

The following parts include 'LM3S3', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
LM3S308-IQN25	Texas Instruments	Contact us for a quote	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S3739-IQC50	Texas Instruments	Contact us for a quote	100-LQFP	IC MCU 32BIT 128KB FLASH 100LQFP
LM3S310-EQN25-C2	Texas Instruments	Contact us for a quote	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S315-EQN25-C2	Texas Instruments	Contact us for a quote	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S315-IGZ25-C2	Texas Instruments	Contact us for a quote	48-VFQFN Exposed Pad	IC MCU 32BIT 16KB FLASH 48VQFN
LM3S316-IQN25-C2	Luminary Micro	64 Available	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S317-IGZ25-C2	Texas Instruments	Contact us for a quote	48-VFQFN Exposed Pad	IC MCU 32BIT 16KB FLASH 48VQFN
LM3S317-IQN25-C2	Texas Instruments	12297 Available	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S328-EGZ25-C2	Texas Instruments	Contact us for a quote	48-VFQFN Exposed Pad	IC MCU 32BIT 16KB FLASH 48VQFN
LM3S301-IGZ20-C2	Texas Instruments	Contact us for a quote	48-VFQFN Exposed Pad	IC MCU 32BIT 16KB FLASH 48VQFN
LM3S310-IQN25-C2	Texas Instruments	Contact us for a quote	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S316-EQN25-C2	Texas Instruments	Contact us for a quote	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S316-IQN25-C2	Texas Instruments	5597 Available	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S328-IGZ25-C2	Texas Instruments	Contact us for a quote	48-VFQFN Exposed Pad	IC MCU 32BIT 16KB FLASH 48VQFN
LM3S328-IQN25-C2	Luminary Micro	104 Available	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S315-EGZ25-C2	Texas Instruments	Contact us for a quote	48-VFQFN Exposed Pad	IC MCU 32BIT 16KB FLASH 48VQFN
LM3S300-IGZ25-C2	Texas Instruments	Contact us for a quote	48-VFQFN Exposed Pad	IC MCU 32BIT 16KB FLASH 48VQFN
LM3S300-IQN25-C2	Texas Instruments	Contact us for a quote	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S308-EQN25-C2	Texas Instruments	Contact us for a quote	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
LM3S317-EQN25-C2	Texas Instruments	Contact us for a quote	48-LQFP	IC MCU 32BIT 16KB FLASH 48LQFP
