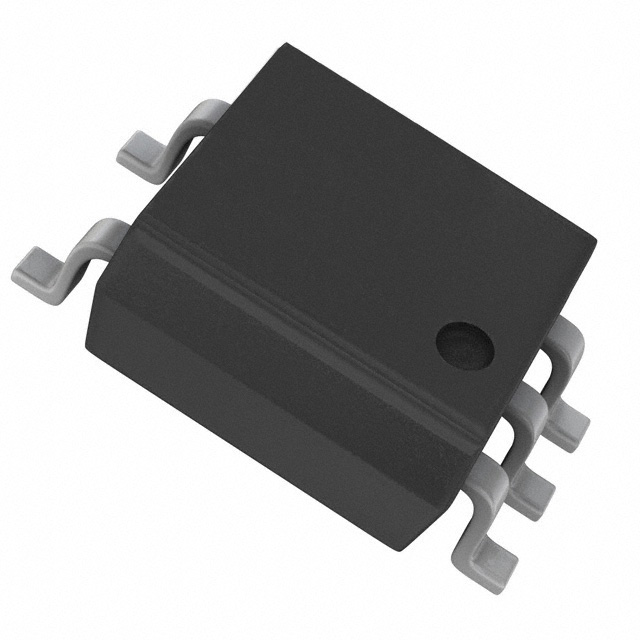

CEL PS9113-AX

OPTOISO 3.75KV OPN COLLECTOR 5SO

Mfr Part No.: PS9113-AX

Manufacturer : CEL

Internal Code: 501-902-13440575

Package : 6-SOIC (0.173", 4.40mm Width), 5 Leads

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Logic Output Optoisolators
Manufacturer	CEL (California Eastern Laboratories)
Series	-
Packaging	Strip
Part Status	Discontinued
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	15kV/µs
Input Type	DC
Output Type	Open Collector

Attribute Name	Attribute Value
Current - Output / Channel	15 mA
Data Rate	1Mbps
Propagation Delay tpLH / tpHL (Max)	750ns, 500ns
Rise / Fall Time (Typ)	-
Voltage - Forward (Vf) (Typ)	1.65V
Current - DC Forward (If) (Max)	25mA
Voltage - Supply	4.5V ~ 20V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.173", 4.40mm Width), 5 Leads
Supplier Device Package	5-SO

Resource Type	Link
Datasheets	Optocouplers with Options Guide Optocoupler Design Guide
HTML Datasheet	PS9113 Datasheet
PCN Design/Specification	RLB-15-0006 31/Mar/2015 Specification Updates 03/Apr/2015
PCN Other	Coupler/Diode Supply Transition 1/Aug/2018

Attribute	Description
RoHS Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000

Others include "PS911" parts

The following parts include 'PS911', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
PS9114-A	CEL	Contact us for a quote	6-SOIC (0.173", 4.40mm Width), 5 Leads	OPTOISO 2.5KV OPN COLLECTOR 5SOP
