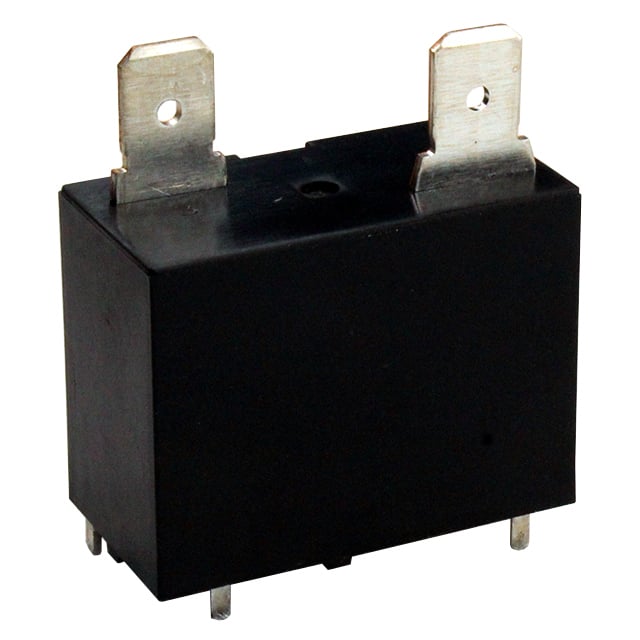

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

CIT Relay and Switch J120D1AS12VDC

RELAY GEN PURPOSE SPST 20A 12V

Mfr Part No.: J120D1AS12VDC

Manufacturer : CIT Relay and Switch

Internal Code: 543-188-7670839

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

2138 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 20

Total:$1.66

Qty	Unit Price	Ext Price
1+	$1.6568	$1.66
10+	$1.50618	$15.06
100+	$1.38182	$138.18
500+	$1.27946	$639.73
1000+	$1.19576	$1195.76
3000+	$1.12808	$3384.24

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Power Relays, Over 2 Amps
Manufacturer	CIT Relay and Switch
Series	J120D
Packaging	Tray
Part Status	Active
Mounting Type	Through Hole
Coil Voltage	12VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	20 A
Switching Voltage	300VAC - Max
Load - Max Switching	6000VA
Coil Current	75 mA
Coil Type	Non Latching
Features	-

Attribute Name	Attribute Value
Termination Style	PC Pin, Quick Connect - 0.250" (6.3mm)
Seal Rating	Sealed - Fully
Coil Insulation	-
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	20 ms
Release Time	10 ms
Operating Temperature	-30°C ~ 55°C
Contact Material	Silver Tin Oxide (AgSnO)
Approval Agency	cURus
Relay Type	General Purpose
Grade	-
Qualification	-

Resource Type	Link
Datasheets	J120D Datasheet
Environmental Information	CIT Relay and Switch REACH CIT Relay and Switch RoHS CA Proposition CIT Relay and Switch CA Prop65
PCN Packaging	Packaging chg 18/JAN/2023
HTML Datasheet	CA Proposition

Others include "J120D" parts

The following parts include 'J120D', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
J120D1AC12VDC	CIT Relay and Switch	Contact us for a quote	-	RELAY GEN PURPOSE SPST 20A 12V
J120D1AC5VDC	CIT Relay and Switch	Contact us for a quote	-	RELAY GEN PURPOSE SPST 20A 5V
J120D1AS6VDCP	CIT Relay and Switch	Contact us for a quote	-	RELAY GEN PURPOSE SPST 20A 6V
J120D1AC24VDC	CIT Relay and Switch	Contact us for a quote	-	RELAY GEN PURPOSE SPST 20A 24V
J120D1AS5VDCP	CIT Relay and Switch	Contact us for a quote	-	RELAY GEN PURPOSE SPST 20A 5V
J120D1AS12VDC	CIT Relay and Switch	2138 Available	-	RELAY GEN PURPOSE SPST 20A 12V
J120D1AS24VDC	CIT Relay and Switch	113 Available	-	RELAY GEN PURPOSE SPST 20A 24V
J120D1AS24VDCP	CIT Relay and Switch	141 Available	-	RELAY GEN PURPOSE SPST 20A 24V
J120D1AS48VDCP	CIT Relay and Switch	Contact us for a quote	-	RELAY GEN PURPOSE SPST 20A 48V
J120D1AS12VDCP	CIT Relay and Switch	Contact us for a quote	-	RELAY GEN PURPOSE SPST 20A 12V
