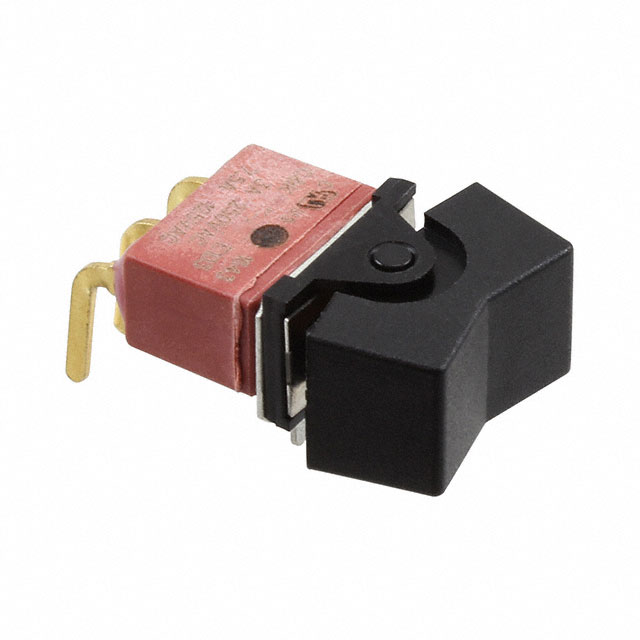

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

C&K E103J1AQE2

SWITCH ROCKER SPDT 7.5A 125V

Mfr Part No.: E103J1AQE2

Manufacturer : C&K

Internal Code: 461-195-6377035

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

87 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 40

Total:$11.5

Qty	Unit Price	Ext Price
1+	$11.5005	$11.5
10+	$10.455	$104.55
100+	$9.59174	$959.17
500+	$8.88124	$4440.62
1000+	$8.30022	$8300.22
3000+	$7.8304	$23491.2

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Rocker Switches
Manufacturer	C&K, now part of Littelfuse
Series	E
Packaging	Bulk
Part Status	Active
Mounting Type	Through Hole, Right Angle
Circuit	SPDT
Switch Function	On-Off-On
Current Rating (Amps)	7.5A (AC/DC)
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V
Actuator Type	Concave (Standard V)

Attribute Name	Attribute Value
Color - Actuator/Cap	Black
Actuator Marking	No Marking
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Termination Style	PC Pin
Ingress Protection	-
Features	Sealed - Flux Protection
Panel Cutout Dimensions	Rectangular - 17.96mm x 10.62mm
Operating Temperature	-30°C ~ 85°C
Approval Agency	cULus
Mechanical Life	-
Electrical Life	40,000 Cycles

Resource Type	Link
Datasheets	E Series Sealed Mini Rocker/Lever Handle Datasheet
PCN Assembly/Origin	Multiple Devices Location 04/Sep/2019
PCN Other	Multiple Devices Material 22/Sep/2014
HTML Datasheet	E Series Sealed Mini Rocker/Lever Handle Datasheet

Attribute	Description
RoHS Status	ROHS3 Compliant
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.50.9065
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Others include "E103J" parts

The following parts include 'E103J', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
E103J1V3BE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 0.4VA 20V
E103J3V6QE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 7.5A 125V
E103J1AQE2	C&K	87 Available	-	SWITCH ROCKER SPDT 7.5A 125V
E103J1ARE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 7.5A 125V
E103J1ABE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 0.4VA 20V
E103J1ALE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 7.5A 125V
E103J2ABE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 0.4VA 20V
E103J1AV2BE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 0.4VA 20V
E103J1V3RE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 7.5A 125V
E103J1V3LE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 7.5A 125V
E103J60V3QE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 7.5A 125V
E103J2V21BE2	C&K	30 Available	-	SWITCH ROCKER SPDT 0.4VA 20V
E103J3V31QE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 7.5A 125V
E103J50V6QE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 7.5A 125V
E103J11ZQE22	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 7.5A 125V
E103J3V21QE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 7.5A 125V
E103J60V31BE2	C&K	Contact us for a quote	-	SWITCH ROCKER SPDT 0.4VA 20V
