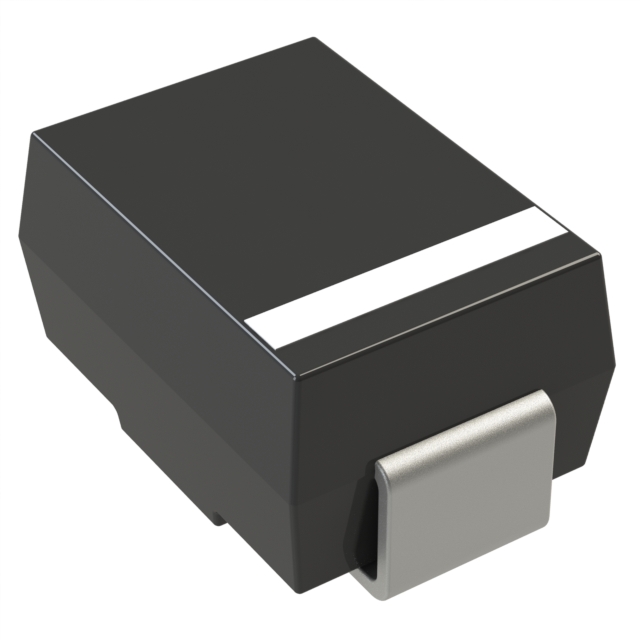

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Diodes Incorporated B120Q-13-F

DIODE SCHOTTKY 20V 1A SMA

Mfr Part No.: B120Q-13-F

Manufacturer : Diodes Incorporated

Internal Code: 707-280-4822642

Package : DO-214AC, SMA

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

298690 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 5000

Total:$0.08

Qty	Unit Price	Ext Price
1+	$0.08117	$0.08
10+	$0.07379	$0.74
100+	$0.0677	$6.77
500+	$0.06268	$31.34
1000+	$0.05858	$58.58
3000+	$0.05527	$165.81

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Rectifiers - Single Diodes
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	20 V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	500 mV @ 1 A

Attribute Name	Attribute Value
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500 µA @ 20 V
Capacitance @ Vr, F	110pF @ 4V, 1MHz
Grade	Automotive
Qualification	AEC-Q101
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA
Operating Temperature - Junction	-65°C ~ 150°C

Resource Type	Link
Datasheets	B120(B)Q - B160(B)Q
Environmental Information	Diodes Environmental Compliance Cert
PCN Design/Specification	Multiple Parts 01/Jun/2022
PCN Assembly/Origin	Mult Dev A/T Chg 6/May/2021

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8541.10.0080
ECCN	EAR99

Others include "B120Q" parts

The following parts include 'B120Q', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
B120Q-13-F	Diodes Incorporated	298690 Available	DO-214AC, SMA	DIODE SCHOTTKY 20V 1A SMA
