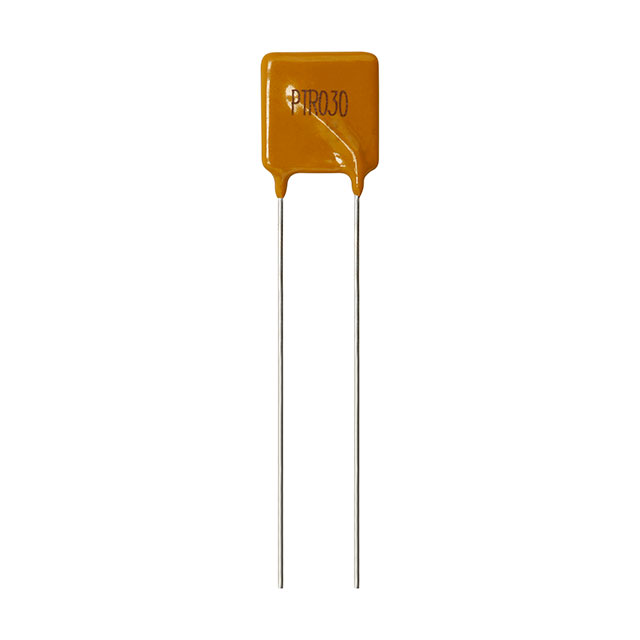

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Eaton - Electronics Division PTR030V0900-TR1

PTC RESET FUSE 30V 9A RADIAL

Mfr Part No.: PTR030V0900-TR1

Manufacturer : Eaton - Electronics Division

Internal Code: 760-150-13442004

Package : Radial, Disc

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	PTC Resettable Fuses
Manufacturer	Eaton-Electronics Division
Series	PTR030V
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Polymeric
Voltage - Max	30V
Current - Hold (Ih) (Max)	9 A
Current - Trip (It)	18 A
Current - Max	100 A
Time to Trip	20 s

Attribute Name	Attribute Value
Resistance - Initial (Ri) (Min)	5 mOhms
Resistance - Post Trip (R1) (Max)	20 mOhms
Operating Temperature	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.949" L x 0.118" W (24.10mm x 3.00mm)
Height - Seated (Max)	1.346" (34.20mm)
Thickness (Max)	-
Lead Spacing	0.394" (10.00mm)
Approval Agency	cURus, TUV

Resource Type	Link
Datasheets	PolyTron™ PTR030V Series
HTML Datasheet	PolyTron™ PTR030V Series
PCN Packaging	Shipping Box and Labels 05/Jan/2018

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	Not Applicable
ECCN	EAR99
HTSUS	8533.40.8070

Others include "PTR03" parts

The following parts include 'PTR03', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
PTR030V0250-BK	Eaton - Electronics Division	340 Available	Radial, Disc	PTC RESET FUSE 30V 2.5A RADIAL
PTR030V0500-TR	Eaton - Electronics Division	3063 Available	Radial, Disc	PTC RESET FUSE 30V 5A RADIAL
PTR030V0800-TR	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 8A RADIAL
PTR030V0900-TR	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 9A RADIAL
PTR030V0900-TR1	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 9A RADIAL
PTR030V0160-BK1	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 1.6A RADIAL
PTR030V0250-BK1	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 2.5A RADIAL
PTR030V0250-TR1	Eaton - Electronics Division	4169 Available	Radial, Disc	PTC RESET FUSE 30V 2.5A RADIAL
PTR030V0300-TR1	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 3A RADIAL
PTR030V0900-BK1	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 9A RADIAL
PTR030V0135-BK1	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 1.35A RADIAL
PTR030V0600-BK1	Eaton - Electronics Division	7908 Available	Radial, Disc	PTC RESET FUSE 30V 6A RADIAL
PTR030V0700-TR1	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 7A RADIAL
PTR030V0110-TR	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 1.1A RADIAL
PTR030V0160-BK	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 1.6A RADIAL
PTR030V0300-BK	Eaton - Electronics Division	163 Available	Radial, Disc	PTC RESET FUSE 30V 3A RADIAL
PTR030V0400-TR	Eaton - Electronics Division	2082 Available	Radial, Disc	PTC RESET FUSE 30V 4A RADIAL
PTR030V0600-BK	Eaton - Electronics Division	281 Available	Radial, Disc	PTC RESET FUSE 30V 6A RADIAL
PTR030V0800-BK	Eaton - Electronics Division	253 Available	Radial, Disc	PTC RESET FUSE 30V 8A RADIAL
PTR030V0185-TR	Eaton - Electronics Division	Contact us for a quote	Radial, Disc	PTC RESET FUSE 30V 1.85A RADIAL
