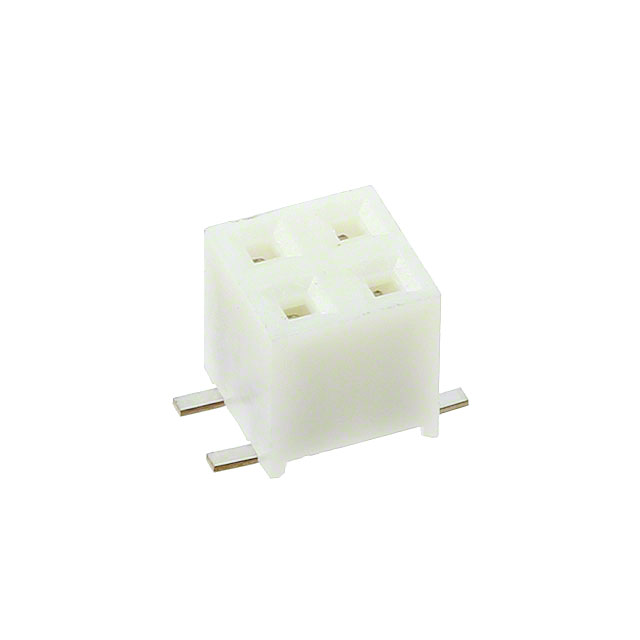

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Hirose Electric Co Ltd A3-4DA-2SV

CONN RCPT 4POS 0.079 GOLD SMD

Mfr Part No.: A3-4DA-2SV

Manufacturer : Hirose Electric Co Ltd

Internal Code: 1100-315-4268581

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Rectangular Connectors - Headers, Receptacles, Female Sockets
Manufacturer	Hirose Electric Co., Ltd.
Series	A3
Packaging	Tube
Part Status	Obsolete
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold

Attribute Name	Attribute Value
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Insulation Color	Brown
Insulation Height	0.165" (4.20mm)
Contact Length - Post	-
Operating Temperature	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	5.1mm, 6mm
Ingress Protection	-
Features	-
Current Rating (Amps)	1A
Voltage Rating	200VAC
Applications	General Purpose, Telecommunications
Insulation Material	Polyphenylene Sulfide (PPS)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	39.4µin (1.00µm)

Resource Type	Link
Datasheets	A3,A4 Series Catalog
HTML Datasheet	A3,A4 Series Catalog

Attribute	Description
ECCN	EAR99
HTSUS	8536.69.4040
RoHS Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected

Others include "A3-4D" parts

The following parts include 'A3-4D', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
A3-4DA-2SV	Hirose Electric Co Ltd	Contact us for a quote	-	CONN RCPT 4POS 0.079 GOLD SMD
A3-4DA-2SV(71)	Hirose Electric Co Ltd	171 Available	-	CONN RCPT 4POS 0.079 GOLD SMD
