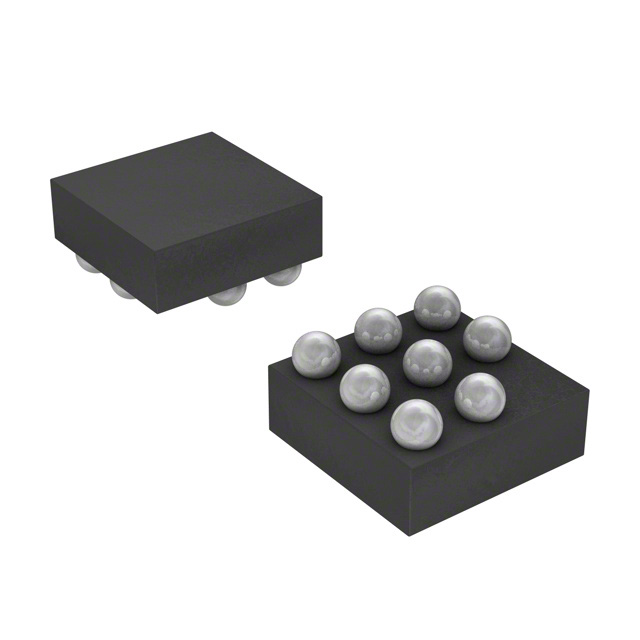

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Infineon Technologies BGF106CE6328XTSA1

FILTER RC 290MHZ ESD SMD

Mfr Part No.: BGF106CE6328XTSA1

Manufacturer : Infineon Technologies

Internal Code: 1176-835-13988515

Package : 8-UFBGA, WLCSP

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	EMI/RFI Filters (LC, RC Networks)
Manufacturer	Infineon Technologies
Series	-
Packaging	Tape & Reel (TR)
Part Status	Obsolete
Type	Low Pass
Filter Order	2nd
Technology	RC
Number of Channels	3
Center / Cutoff Frequency	290MHz (Cutoff)
Attenuation Value	16.9dB @ 800MHz ~ 4GHz

Attribute Name	Attribute Value
Resistance - Channel (Ohms)	47, 100
Values	R = 47Ohms, 100Ohms, C = 16.5pF (Total)
ESD Protection	Yes
Operating Temperature	-40°C ~ 85°C
Applications	Data Lines for Mobile Devices
Voltage - Rated	5.5V
Mounting Type	Surface Mount
Package / Case	8-UFBGA, WLCSP
Size / Dimension	0.047" L x 0.047" W (1.20mm x 1.20mm)
Height	0.026" (0.65mm)

Resource Type	Link
Datasheets	BGF106C Datasheet

Attribute	Description
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000

Others include "BGF10" parts

The following parts include 'BGF10', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
BGF 100 E6327	Infineon Technologies	Contact us for a quote	11-WFBGA, WLCSP	IC VOLUME CONTROL S-WLP-11
BGF 109L E6328	Infineon Technologies	Contact us for a quote	24-UFBGA	FILTER LC 28PF (TOTAL) ESD SMD
BGF 104C E6327	Infineon Technologies	Contact us for a quote	16-WFBGA, WLCSP	IC FILTER HSMMC ESD PROT 16WLP
BGF 108L E6328	Infineon Technologies	Contact us for a quote	18-UFBGA	FILTER LC 28PF (TOTAL) ESD SMD
BGF109CE6328XTSA1	Infineon Technologies	Contact us for a quote	24-UFBGA	EMI Filter 10-Channel 800MHz to 2000MHz Flat Style SMD T/R
BGF104CE6328XTSA1	Infineon Technologies	Contact us for a quote	16-WFBGA, WLCSP	IC FILTER HSMMC ESD PROT 16WLP
BGF108CE6328XTSA1	Infineon Technologies	Contact us for a quote	18-UFBGA, WLCSP	FILTER RC 70 OHM/17PF ESD SMD
BGF106CE6328XTSA1	Infineon Technologies	Contact us for a quote	8-UFBGA, WLCSP	FILTER RC 290MHZ ESD SMD
BGF106CE6328XTSA1	Rochester Electronics, LLC	Contact us for a quote	8-UFBGA, WLCSP	DATA LINE FILTER
