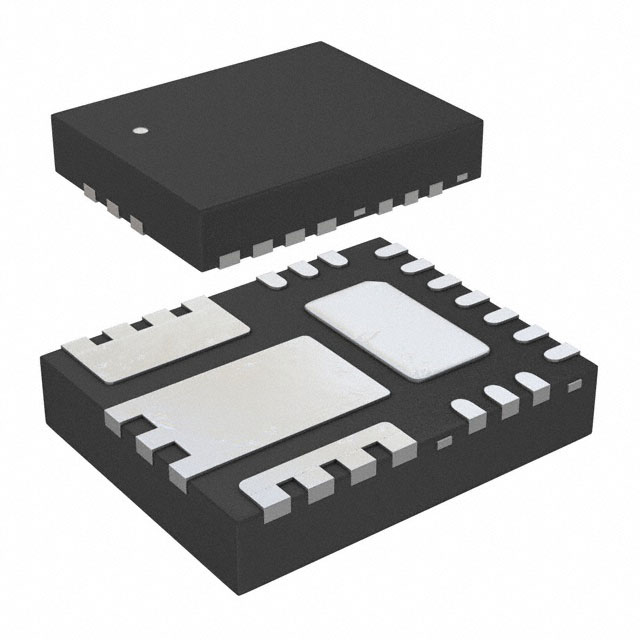

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Infineon Technologies IR3859MTRPBF

IC REG BUCK ADJ 9A 17PQFN

Mfr Part No.: IR3859MTRPBF

Manufacturer : Infineon Technologies

Internal Code: 1176-739-13395632

Package : 17-PowerVQFN

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	PMIC - Voltage Regulators - DC DC Switching Regulators
Manufacturer	Infineon Technologies
Series	SupIRBuck®
Packaging	Tape & Reel (TR)
Part Status	Obsolete
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	1.5V

Attribute Name	Attribute Value
Voltage - Input (Max)	21V
Voltage - Output (Min/Fixed)	0.7V
Voltage - Output (Max)	18.9V
Current - Output	9A
Frequency - Switching	225kHz ~ 1.65MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	17-PowerVQFN
Supplier Device Package	17-PQFN (4x5)

Resource Type	Link
Datasheets	IR3859MPbF
HTML Datasheet	IR3859MPbF
PCN Assembly/Origin	Additional Test Site 01/Aug/2014
PCN Packaging	Packing Material Update 16/Sep/2016

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0060

Others include "IR385" parts

The following parts include 'IR385', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
IR3853MTRPBF	Infineon Technologies	24941 Available	17-PowerVQFN	IC REG BUCK ADJ 4A 17PQFN
IR3859MTRPBF	Infineon Technologies	Contact us for a quote	17-PowerVQFN	IC REG BUCK ADJ 9A 17PQFN
IR3856MTRPBF	Infineon Technologies	36961 Available	17-PowerVQFN	IC REG BUCK ADJ 6A 17QFN
IR3853MTR1PBF	Infineon Technologies	Contact us for a quote	17-PowerVQFN	IC REG BUCK ADJ 4A 17QFN
IR3856MTR1PBF	Infineon Technologies	Contact us for a quote	17-PowerVQFN	IC REG BUCK ADJ 6A 17QFN
IR3859MTR1PBF	Infineon Technologies	13048 Available	17-PowerVQFN	IC REG BUCK ADJ 9A 17QFN
IR3856WMTRPBF	Infineon Technologies	Contact us for a quote	17-PowerVQFN	IC REG BUCK ADJUSTABLE 6A 17PQFN
IR3856WMTR1PBF	Infineon Technologies	Contact us for a quote	17-PowerVQFN	IC REG BUCK ADJ 6A SYNC 17QFN
