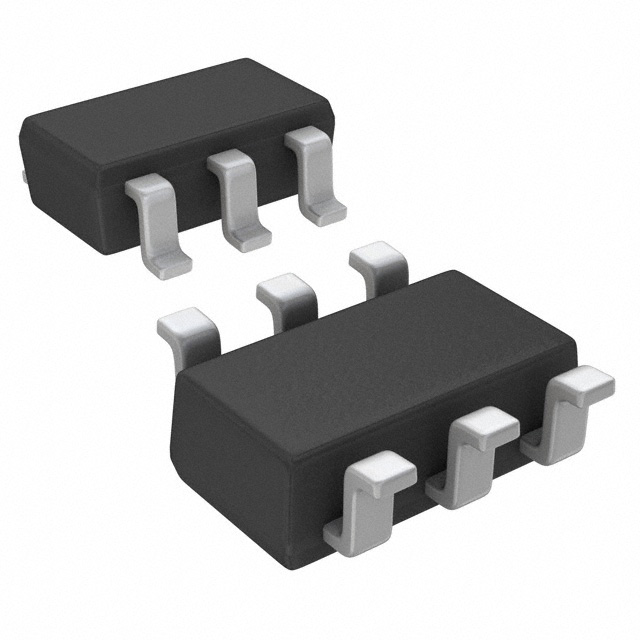

Infineon Technologies IRF5804

MOSFET P-CH 40V 2.5A MICRO6

Mfr Part No.: IRF5804

Manufacturer : Infineon Technologies

Internal Code: 1176-278-14446904

Package : SOT-23-6 Thin, TSOT-23-6

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Single FETs, MOSFETs
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tube
Part Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V

Attribute Name	Attribute Value
Rds On (Max) @ Id, Vgs	198mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	21 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	680 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2W (Ta)
Mounting Type	Surface Mount
Supplier Device Package	Micro6™(TSOP-6)
Package / Case	SOT-23-6 Thin, TSOT-23-6

Resource Type	Link
HTML Datasheet	IRF5804
Other Related Documents	IR Part Numbering System

Attribute	Description
RoHS Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095

Others include "IRF58" parts

The following parts include 'IRF58', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
IRF5851	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET N/P-CH 20V 2.7A 6TSOP
IRF5852	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET 2N-CH 20V 2.7A 6TSOP
IRF5805	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET P-CH 30V 3.8A MICRO6
IRF5800	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET P-CH 30V 4A MICRO6
IRF5850	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET 2P-CH 20V 2.2A 6TSOP
IRF5804	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET P-CH 40V 2.5A MICRO6
IRF5802	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET N-CH 150V 900MA MICRO6
IRF5806	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET P-CH 20V 4A MICRO6
IRF5810	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET 2P-CH 20V 2.9A 6TSOP
IRF5803	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET P-CH 40V 3.4A MICRO6
IRF5803TR	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET P-CH 40V 3.4A MICRO6
IRF5810TR	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET 2P-CH 20V 2.9A 6TSOP
IRF5805TR	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET P-CH 30V 3.8A MICRO6
IRF5800TR	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET P-CH 30V 4A MICRO6
IRF5850TR	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET 2P-CH 20V 2.2A 6TSOP
IRF5802TR	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET N-CH 150V 0.9A 6-TSOP
IRF5803D2TR	Infineon Technologies	Contact us for a quote	8-SOIC (0.154", 3.90mm Width)	MOSFET P-CH 40V 3.4A 8SO
IRF5851TR	Infineon Technologies	8148 Available	SOT-23-6 Thin, TSOT-23-6	MOSFET N/P-CH 20V 2.7A 6TSOP
IRF5852TR	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET 2N-CH 20V 2.7A 6TSOP
IRF5804TR	Infineon Technologies	Contact us for a quote	SOT-23-6 Thin, TSOT-23-6	MOSFET P-CH 40V 2.5A 6-TSOP
