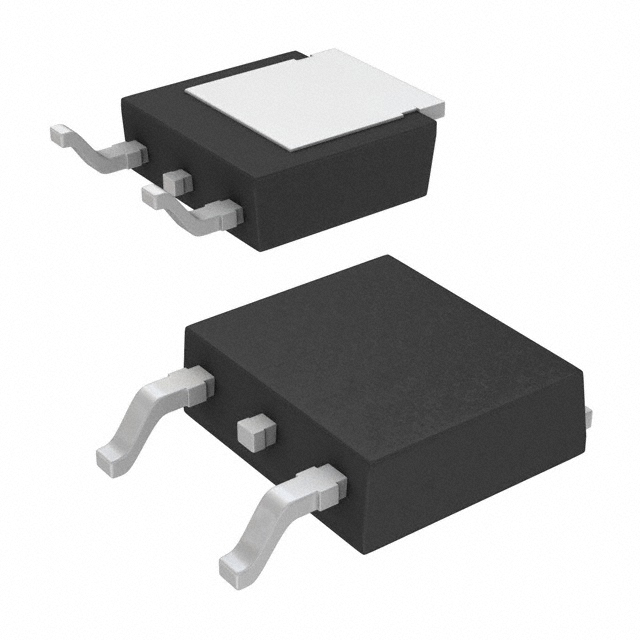

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Infineon Technologies IRGR3B60KD2TRLP

IGBT NPT 600V 7.8A TO252AA

Mfr Part No.: IRGR3B60KD2TRLP

Manufacturer : Infineon Technologies

Internal Code: 1176-279-13399916

Package : TO-252-3, DPAK (2 Leads + Tab), SC-63

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Single IGBTs
Manufacturer	Infineon Technologies
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Obsolete
IGBT Type	NPT
Voltage - Collector Emitter Breakdown (Max)	600 V
Current - Collector (Ic) (Max)	7.8 A
Current - Collector Pulsed (Icm)	15.6 A
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 3A
Power - Max	52 W

Attribute Name	Attribute Value
Switching Energy	62µJ (on), 39µJ (off)
Input Type	Standard
Gate Charge	13 nC
Td (on/off) @ 25°C	18ns/110ns
Test Condition	400V, 3A, 100Ohm, 15V
Reverse Recovery Time (trr)	77 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63
Supplier Device Package	TO-252AA (DPAK)

Resource Type	Link
HTML Datasheet	IRGR3B60KD2PbF
PCN Packaging	Package Drawing Update 19/Aug/2015

Attribute	Description
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095

Others include "IRGR3" parts

The following parts include 'IRGR3', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
IRGR3B60KD2TRP	Infineon Technologies	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	IGBT NPT 600V 7.8A TO252AA
IRGR3B60KD2TRLP	Infineon Technologies	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	IGBT NPT 600V 7.8A TO252AA
IRGR3B60KD2TRLP	Rochester Electronics, LLC	Contact us for a quote	TO-252-3, DPak (2 Leads + Tab), SC-63	IGBT WITH RECOVERY DIODE
IRGR3B60KD2PBF	Infineon Technologies	12880 Available	TO-252-3, DPAK (2 Leads + Tab), SC-63	IGBT NPT 600V 7.8A TO252AA
IRGR3B60KD2TRRP	Infineon Technologies	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	IGBT NPT 600V 7.8A TO252AA
