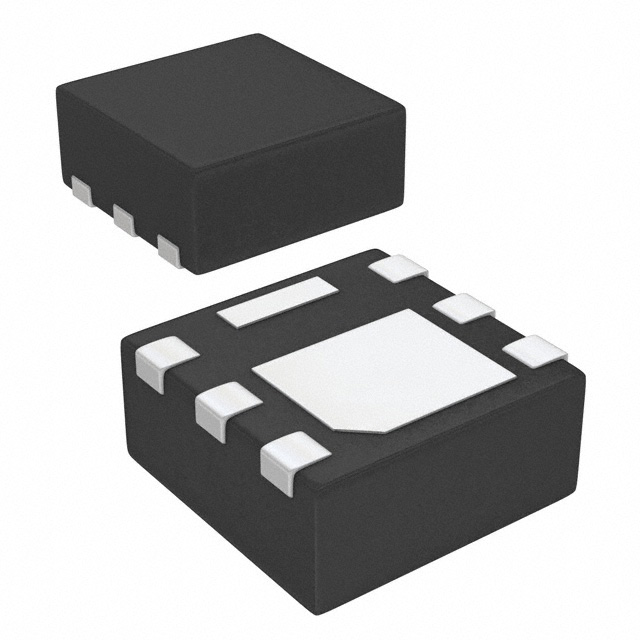

Infineon Technologies IRLHS6242TR2PBF

MOSFET N-CH 20V 10A PQFN

Mfr Part No.: IRLHS6242TR2PBF

Manufacturer : Infineon Technologies

Internal Code: 1176-278-7637747

Package : 6-PowerVDFN

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Single FETs, MOSFETs
Manufacturer	Infineon Technologies
Series	-
Packaging	Cut Tape (CT)
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	10A (Ta), 12A (Tc)

Attribute Name	Attribute Value
Rds On (Max) @ Id, Vgs	11.7mOhm @ 8.5A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs	14 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds	1110 pF @ 10 V
FET Feature	-
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-PowerVDFN

Resource Type	Link
Datasheets	IRLHS6242PBF
Design Resources	IRLHS6242TR2PBF Saber Model
HTML Datasheet	IRLHS6242PBF
Simulation Models	IRLHS6242TR2PBF Spice Model

Attribute	Description
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095

Others include "IRLHS" parts

The following parts include 'IRLHS', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
IRLHS2242TR2PBF	Infineon Technologies	Contact us for a quote	6-PowerVDFN	MOSFET P-CH 20V 5.8A 2X2 PQFN
IRLHS2242TRPBF	Infineon Technologies	47380 Available	6-PowerVDFN	MOSFET P-CH 20V 7.2A/15A 6PQFN
IRLHS6342TRPBF	Infineon Technologies	50271 Available	6-PowerVDFN	MOSFET N-CH 30V 8.7A/19A 6PQFN
IRLHS6276TRPBF	Infineon Technologies	8236 Available	6-PowerVDFN	MOSFET 2N-CH 20V 4.5A PQFN
IRLHS6376TRPBF	Infineon Technologies	71361 Available	6-PowerVDFN	MOSFET 2N-CH 30V 3.6A 6PQFN
IRLHS6242TRPBF	Infineon Technologies	90017 Available	6-PowerVDFN	MOSFET N-CH 20V 10A/12A 6PQFN
IRLHS6376TR2PBF	Infineon Technologies	Contact us for a quote	6-VDFN Exposed Pad	MOSFET 2N-CH 30V 3.6A 6PQFN
IRLHS6242TR2PBF	Infineon Technologies	Contact us for a quote	6-PowerVDFN	MOSFET N-CH 20V 10A PQFN
IRLHS6342TR2PBF	Infineon Technologies	Contact us for a quote	6-PowerVDFN	MOSFET N-CH 30V 8.7A PQFN
IRLHS6276TR2PBF	Infineon Technologies	Contact us for a quote	6-PowerVDFN	MOSFET 2N-CH 20V 4.5A PQFN
