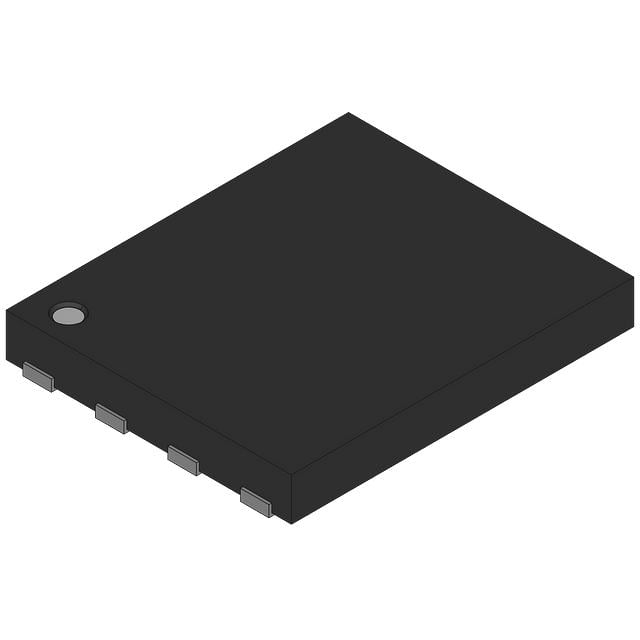

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

International Rectifier IRFH5255TRPBF

MOSFET N-CH 25V 15A/51A PQFN

Mfr Part No.: IRFH5255TRPBF

Manufacturer : International Rectifier

Internal Code: 0-278-7635329

Package : 8-PowerVDFN

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

4176 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 611

Total:$0.59

Qty	Unit Price	Ext Price
1+	$0.59048	$0.59
10+	$0.5368	$5.37
100+	$0.49248	$49.25
500+	$0.456	$228
1000+	$0.42617	$426.17
3000+	$0.40205	$1206.15

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Single FETs, MOSFETs
Manufacturer
Series	HEXFET®
Packaging	Bulk
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta), 51A (Tc)
Rds On (Max) @ Id, Vgs	6mOhm @ 15A, 10V

Attribute Name	Attribute Value
Vgs(th) (Max) @ Id	2.35V @ 25µA
Gate Charge (Qg) (Max) @ Vgs	14.5 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	988 pF @ 13 V
FET Feature	-
Power Dissipation (Max)	3.6W (Ta), 26W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (5x6)
Package / Case	8-PowerVDFN

Resource Type	Link
Datasheets	IRFH5255TRPBF

Attribute	Description
RoHS Status	Not applicable
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	0000.00.0000

Others include "IRFH5" parts

The following parts include 'IRFH5', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
IRFH5025TRPBF	Infineon Technologies	9263 Available	8-PowerVDFN	MOSFET N-CH 250V 3.8A 8PQFN
IRFH5207TRPBF	Infineon Technologies	12241 Available	8-PowerVDFN	MOSFET N-CH 75V 13A/71A 8PQFN
IRFH5302TRPBF	Infineon Technologies	29120 Available	8-PowerVDFN	MOSFET N-CH 30V 32A/100A PQFN
IRFH5007TRPBF	Infineon Technologies	17393 Available	8-PowerTDFN	MOSFET N-CH 75V 17A/100A 8PQFN
IRFH5015TRPBF	Infineon Technologies	19716 Available	8-PowerTDFN	MOSFET N-CH 150V 10A/56A 8PQFN
IRFH5204TRPBF	Infineon Technologies	13130 Available	8-VQFN Exposed Pad	MOSFET N-CH 40V 22A/100A PQFN
IRFH5255TRPBF	International Rectifier	4176 Available	8-PowerVDFN	MOSFET N-CH 25V 15A/51A PQFN
IRFH5004TRPBF	Infineon Technologies	11810 Available	8-PowerVDFN	MOSFET N-CH 40V 28A/100A 8PQFN
IRFH5020TRPBF	Infineon Technologies	14185 Available	8-PowerTDFN	MOSFET N-CH 200V 5.1A 8PQFN
IRFH5110TRPBF	Infineon Technologies	27161 Available	8-PowerVDFN	MOSFET N-CH 100V 11A/63A 8PQFN
IRFH5250TRPBF	Infineon Technologies	23391 Available	8-PowerVDFN	MOSFET N-CH 25V 45A/100A 8PQFN
IRFH5304TRPBF	Infineon Technologies	36292 Available	8-PowerVDFN	MOSFET N-CH 30V 22A/79A 8PQFN
IRFH5110TR2PBF	Infineon Technologies	Contact us for a quote	8-PowerVDFN	MOSFET N-CH 100V 5X6 PQFN
IRFH5300TR2PBF	Infineon Technologies	Contact us for a quote	8-PowerVDFN	MOSFET N-CH 30V 40A PQFN
IRFH5406TR2PBF	Infineon Technologies	Contact us for a quote	8-PowerVDFN	MOSFET N-CH 60V 40A 5X6 PQFN
IRFH5250DTRPBF	Infineon Technologies	12281 Available	8-PowerVDFN	MOSFET N-CH 25V 40A/100A 8PQFN
IRFH5206TR2PBF	Infineon Technologies	Contact us for a quote	8-PowerVDFN	MOSFET N-CH 60V 16A 5X6 PQFN
IRFH5303TR2PBF	Infineon Technologies	Contact us for a quote	8-PowerVDFN	MOSFET N-CH 30V 23A/82A 8PQFN
IRFH5306TR2PBF	Infineon Technologies	Contact us for a quote	8-PowerVDFN	MOSFET N-CH 30V 15A 5X6 PQFN
IRFH5301TR2PBF	Infineon Technologies	Contact us for a quote	8-PowerVDFN	MOSFET N-CH 30V 35A 5X6 PQFN
