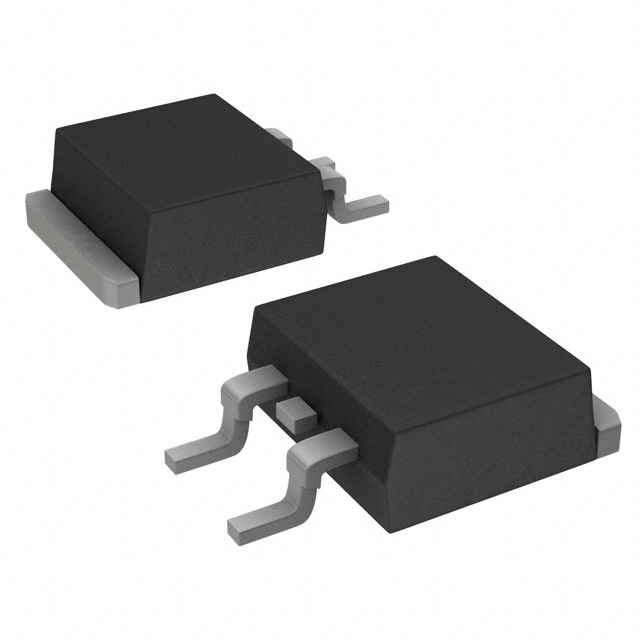

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Littelfuse Inc. S4012NRP

SCR 400V 12A TO263

Mfr Part No.: S4012NRP

Manufacturer : Littelfuse Inc.

Internal Code: 1420-281-11263999

Package : TO-263-3, D2PAK (2 Leads + Tab), TO-263AB

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Thyristors - SCRs
Manufacturer	Littelfuse
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Voltage - Off State	400 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	20 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	7.6 A

Attribute Name	Attribute Value
Current - On State (It (RMS)) (Max)	12 A
Current - Hold (Ih) (Max)	40 mA
Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	120A, 130A
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Supplier Device Package	TO-263 (D2PAK)

Resource Type	Link
Datasheets	Sxx12x Series Packing Options
HTML Datasheet	Packing Options Sxx12x Series

Others include "S4012" parts

The following parts include 'S4012', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
S4012L	Littelfuse Inc.	Contact us for a quote	TO-220-3 Isolated Tab	SCR 400V 12A TO220 ISO
S4012	NKK Switches	Contact us for a quote	-	SWITCH TOGGLE SPDT 6A 125V
S4012V	Littelfuse Inc.	Contact us for a quote	TO-251-3 Short Leads, IPAK, TO-251AA	SCR 400V 12A TO251AA
S4012R	Littelfuse Inc.	1102 Available	TO-220-3	SCR 400V 12A TO220
S4/0-12R-5	Panduit Corp	Contact us for a quote	-	CONN RING FLAT 4/0AWG #1/2 CRIMP
S4/0-12R-C	Panduit Corp	Contact us for a quote	-	CONN RING FLAT 4/0AWG #1/2 CRIMP
S4012LTP	Littelfuse Inc.	Contact us for a quote	TO-220-3 Full Pack, Isolated Tab	SCR 400V 12A ITO220AB
S4012NTP	Littelfuse Inc.	Contact us for a quote	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	SCR 400V 12A TO263
S4012RTP	Littelfuse Inc.	137 Available	TO-220-3	SCR 400V 12A TO220
S4012VTP	Littelfuse Inc.	Contact us for a quote	TO-251-3 Short Leads, IPAK, TO-251AA	SCR 400V 12A TO251AA
S4012NRP	Littelfuse Inc.	Contact us for a quote	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	SCR 400V 12A TO263
S4012DRP	Littelfuse Inc.	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	SCR 400V 12A TO252
S4012DTP	Littelfuse Inc.	755 Available	TO-252-3, DPAK (2 Leads + Tab), SC-63	SCR 400V 12A TO252
S4012001270B0C010	Cypress Semiconductor Corp	Contact us for a quote	-	IC MEMORY NOR
S40125MM270B0S010	Cypress Semiconductor Corp	Contact us for a quote	-	IC MEMORY NOR
S4012001200B4S010	Cypress Semiconductor Corp	Contact us for a quote	-	IC MEMORY NOR
