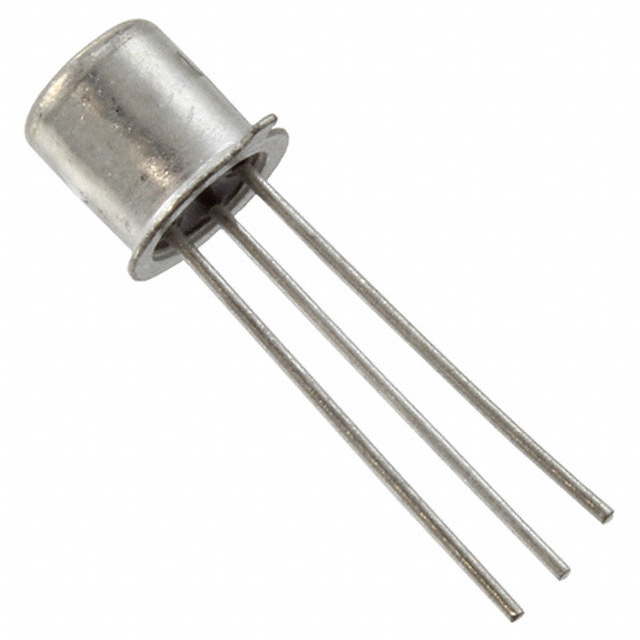

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Microchip Technology JANTX2N930

TRANS NPN 45V 0.03A TO18

Mfr Part No.: JANTX2N930

Manufacturer : Microchip Technology

Internal Code: 1579-276-7697796

Package : TO-206AA, TO-18-3 Metal Can

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

973 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 1

Total:$7.98

Qty	Unit Price	Ext Price
1+	$7.9815	$7.98
10+	$7.25591	$72.56
100+	$6.6568	$665.68
500+	$6.1637	$3081.85
1000+	$5.76047	$5760.47
3000+	$5.43441	$16303.23

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Bipolar (BJT) - Single Bipolar Transistors
Manufacturer	Microchip Technology
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	30 mA
Voltage - Collector Emitter Breakdown (Max)	45 V
Vce Saturation (Max) @ Ib, Ic	1V @ 500µA, 10mA
Current - Collector Cutoff (Max)	2nA

Attribute Name	Attribute Value
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10µA, 5V
Power - Max	300 mW
Frequency - Transition	-
Operating Temperature	-55°C ~ 200°C (TJ)
Grade	Military
Qualification	MIL-PRF-19500/253
Mounting Type	Through Hole
Package / Case	TO-206AA, TO-18-3 Metal Can
Supplier Device Package	TO-18 (TO-206AA)

Resource Type	Link
Datasheets	2N930
Environmental Information	Microchip RoHS Microchip REACH Microchip CA Prop65
PCN Assembly/Origin	Mult Dev Assembly Site 04/May/2024
HTML Datasheet	2N930

Attribute	Description
RoHS Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.21.0095
REACH Status	REACH Unaffected
