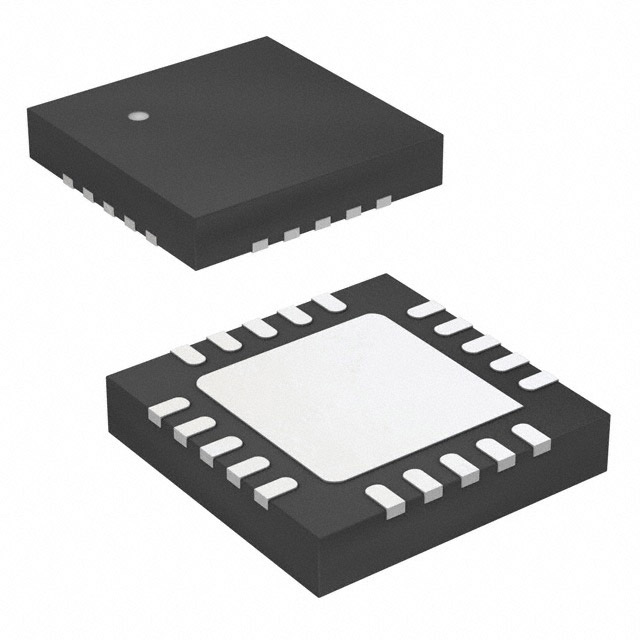

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Monolithic Power Systems Inc. MP4436AGR-Z

IC REG BUCK ADJ 6A 20QFN

Mfr Part No.: MP4436AGR-Z

Manufacturer : Monolithic Power Systems Inc.

Internal Code: 1646-739-9194676

Package : 20-VFQFN Exposed Pad

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

5073 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 5000

Total:$2.27

Qty	Unit Price	Ext Price
1+	$2.27118	$2.27
10+	$2.06471	$20.65
100+	$1.89423	$189.42
500+	$1.75392	$876.96
1000+	$1.63918	$1639.18
3000+	$1.54639	$4639.17

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	PMIC - Voltage Regulators - DC DC Switching Regulators
Manufacturer	Monolithic Power Systems
Series	MP
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.3V

Attribute Name	Attribute Value
Voltage - Input (Max)	45V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	45V
Current - Output	6A
Frequency - Switching	350kHz ~ 530kHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-VFQFN Exposed Pad
Supplier Device Package	20-QFN (4x4)

Resource Type	Link
Datasheets	MP4436(A)GR
Environmental Information	MonolithicPower Systems Environmental Compliance Declaration

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Others include "MP443" parts

The following parts include 'MP443', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
MP4432GL-Z	Monolithic Power Systems Inc.	4924 Available	16-PowerVQFN	IC REG BUCK PROG 2.2A 16QFN
MP4431GL-Z	Monolithic Power Systems Inc.	Contact us for a quote	16-PowerVQFN	IC REG 1A 16QFN
MP4436AGR-P	Monolithic Power Systems Inc.	23 Available	20-VFQFN Exposed Pad	IC REG BUCK ADJ 6A 20QFN
MP4436AGR-Z	Monolithic Power Systems Inc.	5073 Available	20-VFQFN Exposed Pad	IC REG BUCK ADJ 6A 20QFN
MP4436GR-P	Monolithic Power Systems Inc.	Contact us for a quote	20-VFQFN Exposed Pad	IC REG BUCK ADJ 6A 20QFN
MP4431GL-P	Monolithic Power Systems Inc.	Contact us for a quote	16-PowerVQFN	IC REG 1A 16QFN
MP4432GL-P	Monolithic Power Systems Inc.	Contact us for a quote	16-PowerVQFN	IC REG BUCK PROG 2.2A 16QFN
MP4433GL-Z	Monolithic Power Systems Inc.	Contact us for a quote	16-PowerVQFN	IC REG 3A 16QFN
MP4430GL-Z	Monolithic Power Systems Inc.	Contact us for a quote	16-PowerVQFN	IC REG 3.5A 16QFN
MP4436GR-Z	Monolithic Power Systems Inc.	Contact us for a quote	20-VFQFN Exposed Pad	IC REG BUCK ADJ 6A 20QFN
MP4430GL-P	Monolithic Power Systems Inc.	Contact us for a quote	16-PowerVQFN	IC REG 3.5A 16QFN
MP4433GL-P	Monolithic Power Systems Inc.	Contact us for a quote	16-PowerVQFN	IC REG 3A 16QFN
