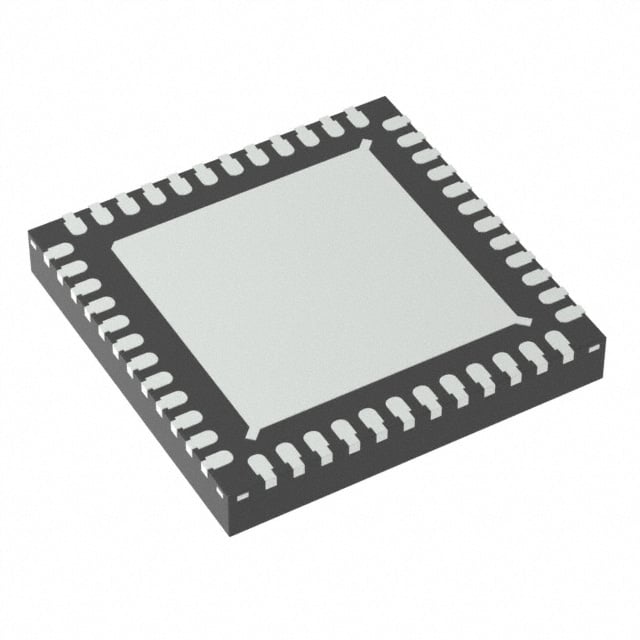

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

NXP USA Inc. MKS22FN128VFT12

IC MCU 32BIT 128KB FLASH 48QFN

Mfr Part No.: MKS22FN128VFT12

Manufacturer : NXP USA Inc.

Internal Code: 1778-685-14779698

Package : 48-VFQFN Exposed Pad

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Embedded - Microcontrollers
Manufacturer	NXP Semiconductors
Series	Kinetis KS22
Packaging	Tray
Part Status	Active
Programmable	Not Verified
Core Processor	ARM® Cortex®-M4
Core Size	32-Bit Single-Core
Speed	120MHz
Connectivity	CANbus, I2C, SPI, UART/USART, USB OTG
Peripherals	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT
Number of I/O	35

Attribute Name	Attribute Value
Program Memory Size	128KB (128K x 8)
Program Memory Type	FLASH
EEPROM Size	-
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	1.71V ~ 3.6V
Data Converters	A/D 1x16b; D/A 1x12b
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	48-QFN (7x7)
Package / Case	48-VFQFN Exposed Pad

Resource Type	Link
Environmental Information	NXP USA Inc RoHS Cert NXP USA Inc REACH
HTML Datasheet	KS22,KS20 Product Brief
PCN Assembly/Origin	Mult Dev Site Chgs 18/Dec/2020
PCN Design/Specification	MKS20/22FN256/128 03/Sept/2022
PCN Packaging	All Dev Label Update 15/Dec/2020 Mult Dev Pkg Seal 15/Dec/2020

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	3A991A2
HTSUS	8542.31.0025

Others include "MKS22" parts

The following parts include 'MKS22', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
MKS2-2.2/63/5	WIMA	Contact us for a quote	-
MKS2-.22/100/10	WIMA	Contact us for a quote	-
MKS2-2.2/50/10	WIMA	Contact us for a quote	-
MKS2-.22/63/5T	WIMA	Contact us for a quote	-
MKS2-.22/63/10	WIMA	Contact us for a quote	-	Film Capacitors 63V .22uF 10%
MKS2 .22/16/5 LS5	WIMA	598 Available	Radial	MKS2 .22/16/5 LS5 ROHS
MKS2 2.2/50/20 LS5 T/R	WIMA	2777 Available	Radial	MKS2 2.2/50/20 LS5 T/R (7.2MM X1
MKS22FN128VFT12	NXP USA Inc.	Contact us for a quote	48-VFQFN Exposed Pad	IC MCU 32BIT 128KB FLASH 48QFN
MKS22FN128VLH12	NXP USA Inc.	1267 Available	64-LQFP	IC MCU 32BIT 128KB FLASH 64LQFP
MKS22FN128VLL12	NXP USA Inc.	4445 Available	100-LQFP	IC MCU 32BIT 128KB FLASH 100LQFP
MKS22FN256VLL12	NXP USA Inc.	810 Available	100-LQFP	IC MCU 32BIT 256KB FLASH 100LQFP
MKS22FN256VFT12	NXP USA Inc.	278 Available	48-VFQFN Exposed Pad	IC MCU 32BIT 256KB FLASH 48QFN
MKS22FN256VLH12	NXP USA Inc.	149 Available	64-LQFP	IC MCU 32BIT 256KB FLASH 64LQFP
