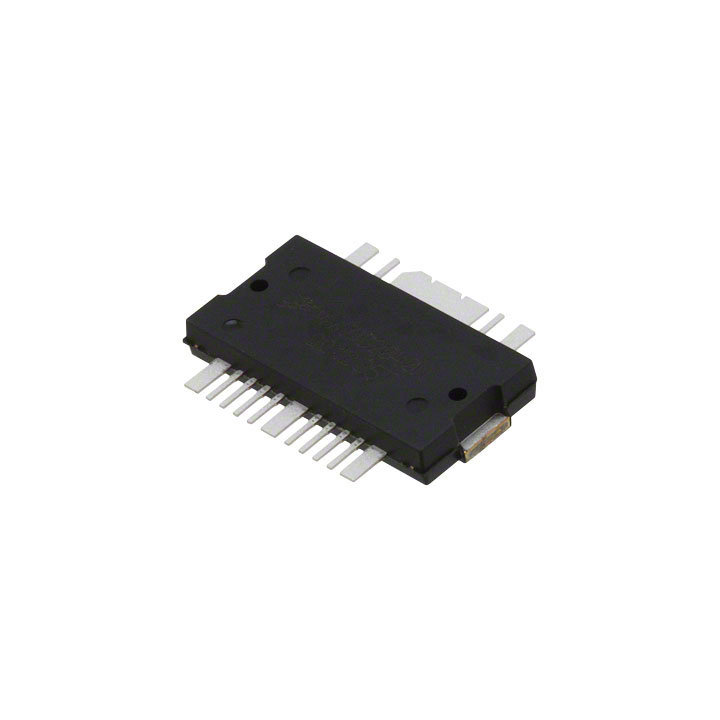

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

NXP USA Inc. MMRF2005NR1

RF MOSFET LDMOS 28V TO270-16

Mfr Part No.: MMRF2005NR1

Manufacturer : NXP USA Inc.

Internal Code: 1778-285-9144296

Package : TO-270-16 Variant, Flat Leads

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	RF FETs, MOSFETs
Manufacturer	NXP Semiconductors
Series	-
Packaging	Tape & Reel (TR)
Part Status	Obsolete
Technology	LDMOS
Frequency	940MHz
Gain	35.9dB
Voltage - Test	28 V

Attribute Name	Attribute Value
Current Rating (Amps)	-
Noise Figure	-
Current - Test	106 mA
Power - Output	3.2W
Voltage - Rated	65 V
Mounting Type	Chassis Mount
Package / Case	TO-270-16 Variant, Flat Leads
Supplier Device Package	TO-270 WBL-16

Resource Type	Link
Environmental Information	NXP USA Inc RoHS Cert NXP USA Inc REACH
PCN Obsolescence/ EOL	Mult Dev EOL 24/Sep/2020
PCN Packaging	All Dev Label Update 15/Dec/2020

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0075

Others include "MMRF2" parts

The following parts include 'MMRF2', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
MMRF2006NT1	NXP USA Inc.	5185 Available	24-PowerQFN	IC AMP W-CDMA 1.8-2.17GHZ 24QFN
MMRF2007NR1	NXP USA Inc.	Contact us for a quote	TO-270-16 Variant, Flat Leads	RF MOSFET LDMOS 28V TO270-16
MMRF2010NR1	NXP USA Inc.	Contact us for a quote	TO-270-14 Variant, Flat Leads	RF MOSFET LDMOS 50V TO270-14
MMRF2005NR1	NXP USA Inc.	Contact us for a quote	TO-270-16 Variant, Flat Leads	RF MOSFET LDMOS 28V TO270-16
MMRF2011NT1	NXP USA Inc.	Contact us for a quote	24-PowerQFN	RF MOSFET LDMOS 24QFN
MMRF2004NBR1	NXP USA Inc.	Contact us for a quote	TO-272-16 Variant, Flat Leads	RF MOSFET LDMOS 28V TO272-16
MMRF2005GNR1	NXP USA Inc.	Contact us for a quote	-	RF MOSFET LDMOS
MMRF2010GNR1	NXP USA Inc.	Contact us for a quote	TO-270-14 Variant, Gull Wing	RF MOSFET LDMOS 50V TO270-14
MMRF2007GNR1	NXP USA Inc.	Contact us for a quote	-	RF LDMOS WIDEBAND INTEGRATED POW
