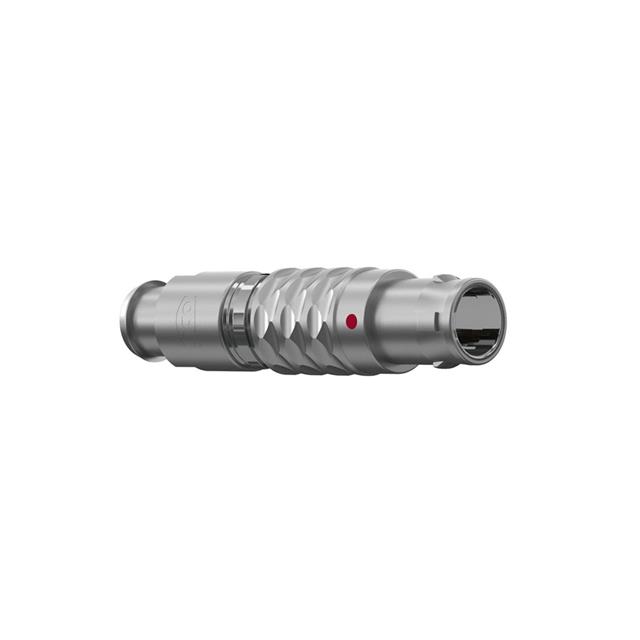

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

ODU S2CL0C-P04MCC0-3000

CONN PLUG MALE 4P GOLD SLDR CUP

Mfr Part No.: S2CL0C-P04MCC0-3000

Manufacturer : ODU

Internal Code: 1783-436-13385615

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Circular Connectors - Assemblies
Manufacturer	ODU
Series	ODU MINI-SNAP® L
Packaging	Bulk
Part Status	Active
Connector Type	Plug, Male Pins
Number of Positions	4
Shell Size - Insert	00
Shell Size, MIL	-
Mounting Type	Free Hanging (In-Line)
Mounting Feature	-
Termination	Solder Cup
Fastening Type	Push-Pull
Orientation	0
Primary Material	Metal
Shell Material	Brass

Attribute Name	Attribute Value
Shell Finish	Chrome over Nickel
Contact Finish - Mating	Gold
Color	Silver
Ingress Protection	IP50 - Dust Protected
Material Flammability Rating	-
Features	Backshell, Strain Relief
Shielding	-
Current Rating (Amps)	4A
Voltage Rating	-
Cable Opening	0.098" ~ 0.118" (2.50mm ~ 3.00mm)
Operating Temperature	-40°C ~ 120°C
Backshell Material, Plating	Brass, Chrome over Nickel
Contact Material	Brass
Contact Finish Thickness - Mating	-
Insert Material	Polyetheretherketone (PEEK)
Applications	Industrial, Medical, Military, Testing Equipment & Measurement

Resource Type	Link
3D Drawings	S2_L_3D.JPG
Datasheets	S2CL0C-P04MCC0-3000 ODU MINI-SNAP® L,K,B Series Catalog ODU MINI-SNAP L, K, B Assembly Instruction GB
Environmental Information	ODU-USA Inc RoHS Cert ODU-USA Inc REACH211 Cert
HTML Datasheet	S2CL0C-P04MCC0 Drawing ODU MINI-SNAP L, K, B Assembly Instruction GB
PCN Design/Specification	Chrome (VI)-free 15/DEC/2022
Product Drawings	S2CL0C-P04MCC0 Drawing

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4020

Others include "S2CL0" parts

The following parts include 'S2CL0', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
S2CL0C-P03MCC0-1000	ODU	Contact us for a quote	-	CONN PLUG MALE 3P GOLD SLDR CUP
S2CL0C-P03MCC0-1500	ODU	Contact us for a quote	-	CONN PLUG MALE 3P GOLD SLDR CUP
S2CL0C-P02MCC0-3500	ODU	Contact us for a quote	-	CONN PLUG MALE 2P GOLD SLDR CUP
S2CL0C-P03MCC0-3000	ODU	7 Available	-	CONN PLUG MALE 3P GOLD SLDR CUP
S2CL0C-P02MCC0-2500	ODU	Contact us for a quote	-	CONN PLUG MALE 2P GOLD SLDR CUP
S2CL0C-P03MCC0-3500	ODU	Contact us for a quote	-	CONN PLUG MALE 3P GOLD SLDR CUP
S2CL0C-P04MCC0-1000	ODU	Contact us for a quote	-	CONN PLUG MALE 4P GOLD SLDR CUP
S2CL0C-P04MCC0-1500	ODU	Contact us for a quote	-	CONN PLUG MALE 4P GOLD SLDR CUP
S2CL0C-P04MCC0-3000	ODU	Contact us for a quote	-	CONN PLUG MALE 4P GOLD SLDR CUP
S2CL0C-P02MCC0-2000	ODU	Contact us for a quote	-	CONN PLUG MALE 2P GOLD SLDR CUP
S2CL0C-P03MCC0-2500	ODU	Contact us for a quote	-	CONN PLUG MALE 3P GOLD SLDR CUP
S2CL0C-P04MCC0-2000	ODU	Contact us for a quote	-	CONN PLUG MALE 4P GOLD SLDR CUP
S2CL0C-P04MCC0-3500	ODU	Contact us for a quote	-	CONN PLUG MALE 4P GOLD SLDR CUP
S2CL0C-P02MCC0-1000	ODU	Contact us for a quote	-	CONN PLUG MALE 2P GOLD SLDR CUP
S2CL0C-P02MCC0-1500	ODU	Contact us for a quote	-	CONN PLUG MALE 2P GOLD SLDR CUP
S2CL0C-P02MCC0-3000	ODU	Contact us for a quote	-	CONN PLUG MALE 2P GOLD SLDR CUP
S2CL0C-P03MCC0-2000	ODU	Contact us for a quote	-	CONN PLUG MALE 3P GOLD SLDR CUP
S2CL0C-P04LCC0-3000	ODU	Contact us for a quote	-	ODU MINI-SNAP PLUG, STY 2, SZ 00
S2CL0C-P04MCC0-2500	ODU	Contact us for a quote	-	CONN PLUG MALE 4P GOLD SLDR CUP
