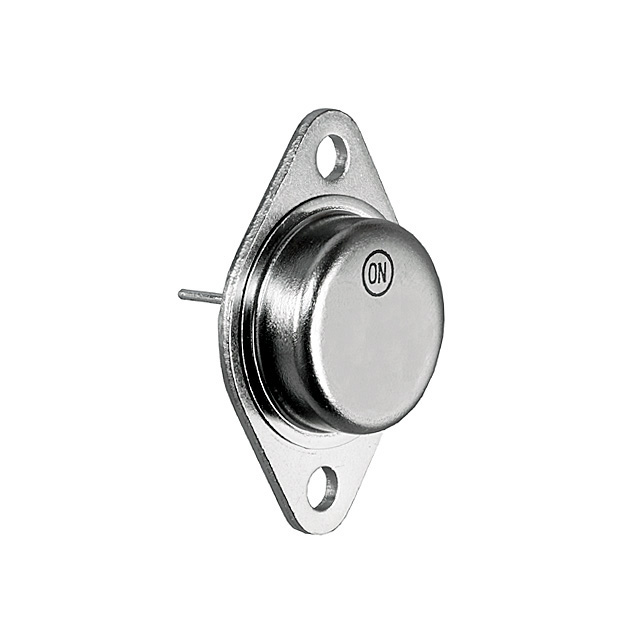

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

onsemi 2N6341

TRANS NPN 150V 25A TO204

Mfr Part No.: 2N6341

Manufacturer : onsemi

Internal Code: 1805-276-1463505

Package : TO-204AA, TO-3

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Bipolar (BJT) - Single Bipolar Transistors
Manufacturer	onsemi
Series	-
Packaging	Tray
Part Status	Obsolete
Transistor Type	NPN
Current - Collector (Ic) (Max)	25 A
Voltage - Collector Emitter Breakdown (Max)	150 V
Vce Saturation (Max) @ Ib, Ic	1.8V @ 2.5A, 25A

Attribute Name	Attribute Value
Current - Collector Cutoff (Max)	50µA
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 10A, 2V
Power - Max	200 W
Frequency - Transition	40MHz
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-204AA, TO-3
Supplier Device Package	TO-204 (TO-3)

Resource Type	Link
Datasheets	2N6338,41
Environmental Information	onsemi RoHS onsemi REACH
PCN Obsolescence/ EOL	Multiple Devices 06/Oct/2006
HTML Datasheet	2N6338,41

Attribute	Description
RoHS Status	RoHS non-compliant
ECCN	EAR99
REACH Status	REACH Unaffected
Moisture Sensitivity Level (MSL)	1 (Unlimited)
HTSUS	8541.29.0075

Others include "2N634" parts

The following parts include '2N634', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
2N6340	NTE Electronics, Inc	Contact us for a quote	TO-204AA, TO-3	TRANS NPN 140V 25A TO3
2N6341	Microchip Technology	Contact us for a quote	TO-204AA, TO-3	TRANS NPN 150V 25A TO3
2N6340	Microchip Technology	Contact us for a quote	-	NPN TRANSISTOR
2N6348A	onsemi	822 Available	TO-220-3	THYRISTOR TRIAC 12A 600V TO220AB
2N6341	onsemi	Contact us for a quote	TO-204AA, TO-3	TRANS NPN 150V 25A TO204
2N6344G	Littelfuse Inc.	467 Available	TO-220-3	TRIAC 600V 8A TO220AB
2N6341G	onsemi	Contact us for a quote	TO-204AA, TO-3	TRANS NPN 150V 25A TO-3
2N6344AG	Littelfuse Inc.	Contact us for a quote	TO-220-3	TRIAC 600V 12A TO220AB
2N6348AG	Littelfuse Inc.	9007 Available	TO-220-3	TRIAC 600V 12A TO220AB
2N6349AG	Littelfuse Inc.	3892 Available	TO-220-3	TRIAC 800V 12A TO220AB
2N6348AG	onsemi	12168 Available	TO-220-3	TRIAC 600V 12A TO220AB
