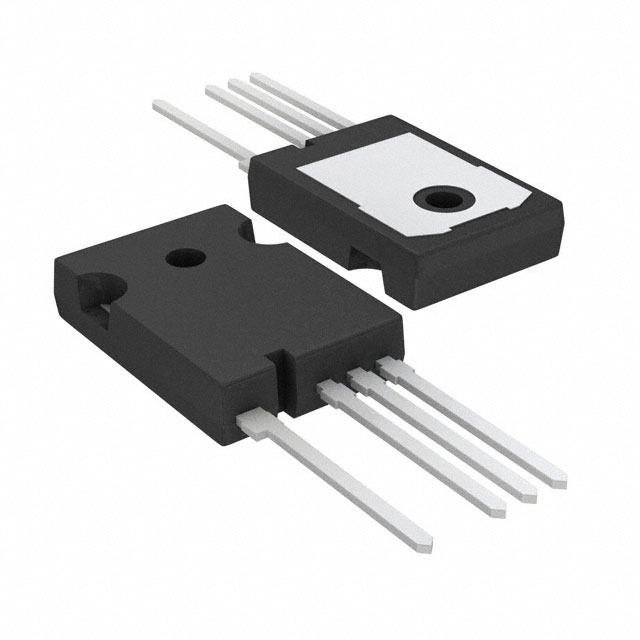

onsemi FGH40T120SMDL4

IGBT TRENCH/FS 1200V 80A TO247

Mfr Part No.: FGH40T120SMDL4

Manufacturer : onsemi

Internal Code: 1805-279-6894522

Package : TO-247-4

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

3355 In Stock
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Single IGBTs
Manufacturer	onsemi
Series	-
Packaging	Tube
Part Status	Obsolete
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	160 A
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 40A
Power - Max	555 W

Attribute Name	Attribute Value
Switching Energy	2.24mJ (on), 1.02mJ (off)
Input Type	Standard
Gate Charge	370 nC
Td (on/off) @ 25°C	44ns/464ns
Test Condition	600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)	65 ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-4
Supplier Device Package	TO-247-4

Resource Type	Link
Datasheets	FGH40T120SMDL4
Environmental Information	onsemi RoHS onsemi REACH Material Declaration FGH40T120SMDL4
PCN Obsolescence/ EOL	Mult Dev EOL 29/Jan/2021
PCN Design/Specification	Dimension/Color Change 24/Feb/2021 Logo 17/Aug/2017
PCN Assembly/Origin	Mult Dev Assembly/DS Chg 6/Jan/2019
PCN Packaging	Packing quantity increase 28/Dec/2020 Mult Devices 24/Oct/2017

Attribute	Description
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
ECCN	EAR99
HTSUS	8541.29.0095

Others include "FGH40" parts

The following parts include 'FGH40', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
FGH40N6S2	onsemi	Contact us for a quote	TO-247-3	IGBT 600V 75A 290W TO247
FGH40N60SMD	onsemi	35263 Available	TO-247-3	IGBT FIELD STOP 600V 80A TO247-3
FGH40N6S2D	onsemi	Contact us for a quote	TO-247-3	IGBT 600V 75A 290W TO247
FGH40T65UPD	onsemi	3128 Available	TO-247-3	IGBT TRENCH/FS 650V 80A TO247-3
FGH40N60SMDF	onsemi	7521 Available	TO-247-3	IGBT FIELD STOP 600V 80A TO247-3
FGH40N60SFTU	Fairchild Semiconductor	14323 Available	-	INSULATED GATE BIPOLAR TRANSISTO
FGH40N60SFTU	onsemi	9861 Available	TO-247-3	IGBT FIELD STOP 600V 80A TO247-3
FGH40N60UFTU	onsemi	7835 Available	TO-247-3	IGBT FIELD STOP 600V 80A TO247-3
FGH40T100SMD	onsemi	4880 Available	TO-247-3	IGBT 1000V 80A 333W TO247-3
FGH40T120SMD	onsemi	8940 Available	TO-247-3	IGBT TRENCH FS 1200V 80A TO247-3
FGH40N60SFDTU	onsemi	9187 Available	TO-247-3	IGBT FIELD STOP 600V 80A TO247-3
FGH40N60UFDTU	onsemi	4760 Available	TO-247-3	IGBT FIELD STOP 600V 80A TO247-3
FGH40N120ANTU	onsemi	7623 Available	TO-247-3	IGBT NPT 1200V 64A TO247-3
FGH40N65UFDTU	onsemi	4033 Available	TO-247-3	IGBT FIELD STOP 650V 80A TO247-3
FGH40T120SMDL4	onsemi	3355 Available	TO-247-4	IGBT TRENCH/FS 1200V 80A TO247
FGH40T65SPD-F085	onsemi	7998 Available	TO-247-3	IGBT NPT 650V 80A TO247-3
FGH40T65SQD-F155	onsemi	7935 Available	TO-247-3	IGBT TRENCH/FS 650V 80A TO247-3
FGH40T65SH-F155	onsemi	Contact us for a quote	TO-247-3	IGBT 650V 80A 268W TO-247-3
FGH40T100SMD-F155	onsemi	445 Available	TO-247-3	IGBT TRENCH FS 1000V 80A TO247-3
FGH40T65SPD-F155	onsemi	5220 Available	TO-247-3	IGBT 650V 80A 267W TO-247
