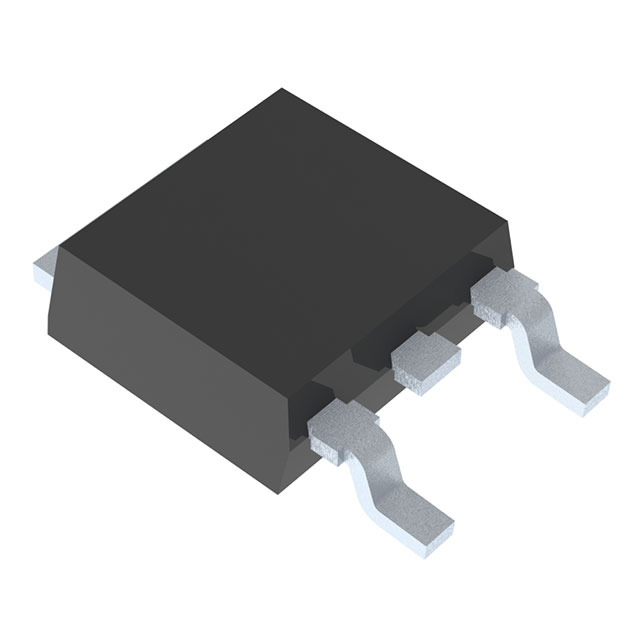

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

onsemi NVATS4A104PZT4G

MOSFET P-CHANNEL 30V 82A ATPAK

Mfr Part No.: NVATS4A104PZT4G

Manufacturer : onsemi

Internal Code: 1805-278-9686176

Package : TO-252-3, DPAK (2 Leads + Tab), SC-63

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Single FETs, MOSFETs
Manufacturer	onsemi
Series	-
Packaging	Tape & Reel (TR)
Part Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	82A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	8.4mOhm @ 38A, 10V
Vgs(th) (Max) @ Id	2.6V @ 1mA

Attribute Name	Attribute Value
Gate Charge (Qg) (Max) @ Vgs	76 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3950 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	72W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Grade	Automotive
Qualification	AEC-Q101
Mounting Type	Surface Mount
Supplier Device Package	ATPAK
Package / Case	TO-252-3, DPAK (2 Leads + Tab), SC-63

Resource Type	Link
Datasheets	NVATS4A104PZ
Environmental Information	onsemi RoHS onsemi REACH Material Declaration NVATS4A104PZT4G
PCN Obsolescence/ EOL	Mult Dev EOL 7/Apr/2021
HTML Datasheet	NVATS4A104PZ

Attribute	Description
RoHS Status	ROHS3 Compliant
ECCN	EAR99
HTSUS	8541.29.0095
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected

Others include "NVATS" parts

The following parts include 'NVATS', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
NVATS5A107PLZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 40V 55A ATPAK
NVATS68301PZT4G	onsemi	748 Available	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 100V 31A DPAK
NVATS4A104PZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 30V 82A ATPAK
NVATS4A101PZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 30V 27A ATPAK
NVATS4A102PZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 30V 44A ATPAK
NVATS5A112PLZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CH 60V 27A ATPAK
NVATS5A108PLZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 40V 77A ATPAK
NVATS5A302PLZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 60V 80A ATPAK
NVATS4A103PZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 30V 60A ATPAK
NVATS5A106PLZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 40V 33A ATPAK
NVATS5A113PLZT4G	onsemi	3142 Available	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 60V 38A ATPAK
NVATS5A114PLZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 60V 60A ATPAK
NVATS5A304PLZT4G	onsemi	Contact us for a quote	TO-252-3, DPAK (2 Leads + Tab), SC-63	MOSFET P-CHANNEL 60V 120A ATPAK
