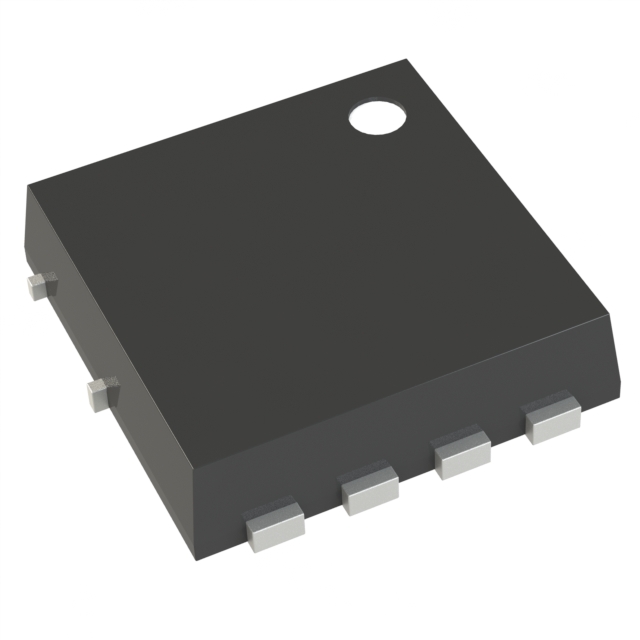

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

onsemi NVTFWS005N08XLTAG

T10S 80V LL NCH MOSFET U8FL HE W

Mfr Part No.: NVTFWS005N08XLTAG

Manufacturer : onsemi

Internal Code: 1805-278-14869890

Package : 8-PowerWDFN

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Single FETs, MOSFETs
Manufacturer	onsemi
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	79A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	5.3mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	2.1V @ 85µA

Attribute Name	Attribute Value
Gate Charge (Qg) (Max) @ Vgs	28 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1800 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	82W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Grade	Automotive
Qualification	AEC-Q101
Mounting Type	Surface Mount
Supplier Device Package	8-WDFNW (3.3x3.3)
Package / Case	8-PowerWDFN

Resource Type	Link
Datasheets	NVTFWS005N08XLTAG

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095

Others include "NVTFW" parts

The following parts include 'NVTFW', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
NVTFWS008N04CTAG	onsemi	1683 Available	8-PowerWDFN	MOSFET N-CH 40V 14A/48A 8WDFN
NVTFWS020N06CTAG	onsemi	24353 Available	8-PowerWDFN	MOSFET N-CH 60V 7A/27A 8WDFN
NVTFWS024N06CTAG	onsemi	1632 Available	8-PowerWDFN	MOSFET N-CH 60V 7A/24A 8WDFN
NVTFWS002N04CTAG	onsemi	2898 Available	8-PowerWDFN	MOSFET N-CH 40V 27A/136A 8WDFN
NVTFWS003N04CTAG	onsemi	1528 Available	8-PowerWDFN	MOSFET N-CH 40V 22A/103A 8WDFN
NVTFWS015N04CTAG	onsemi	31604 Available	8-PowerWDFN	MOSFET N-CH 40V 9.4A/27A 8WDFN
NVTFWS016N06CT1G	onsemi	Contact us for a quote	8-PowerWDFN	POWER MOSFET, SINGLE, N-CHANNEL,
NVTFWS030N06CTAG	onsemi	29817 Available	8-PowerWDFN	MOSFET N-CH 60V 6A/19A 8WDFN
NVTFWS004N04CTAG	onsemi	9126 Available	8-PowerWDFN	MOSFET N-CH 40V 18A/77A 8WDFN
NVTFWS016N06CTAG	onsemi	19953 Available	8-PowerWDFN	MOSFET N-CH 60V 8A/32A 8WDFN
NVTFWS8D1N08HTAG	onsemi	4688 Available	8-PowerWDFN	80V T8 IN U8FL HEFET PACK
NVTFWS024N06CT1G	onsemi	Contact us for a quote	8-PowerWDFN	POWER MOSFET, SINGLE, N-CHANNEL,
NVTFWS005N04CTAG	onsemi	11765 Available	8-PowerWDFN	MOSFET N-CH 40V 17A/69A 8WDFN
NVTFWS002N04CLTAG	onsemi	878 Available	8-PowerWDFN	MOSFET N-CH 40V 28A/142A 8WDFN
NVTFWS1D3N04XMTAG	onsemi	6189 Available	8-PowerWDFN	SINGLE N-CHANNEL POWER MOSFET 40
NVTFWS005N08XLTAG	onsemi	Contact us for a quote	8-PowerWDFN	T10S 80V LL NCH MOSFET U8FL HE W
NVTFWS4D9N04XMTAG	onsemi	Contact us for a quote	8-PowerWDFN	SINGLE N-CHANNEL POWER MOSFET 40
NVTFWS007N08HLTAG	onsemi	5999 Available	8-PowerWDFN	80V T8 IN U8FL HEFET PACK
NVTFWS027N10MCLTAG	onsemi	4695 Available	8-PowerWDFN	PTNG 100V LL U8FL
NVTFWS014P04M8LTAG	onsemi	5277 Available	8-PowerWDFN	MOSFET P-CH 40V 11.3A/49A 8WDFN
