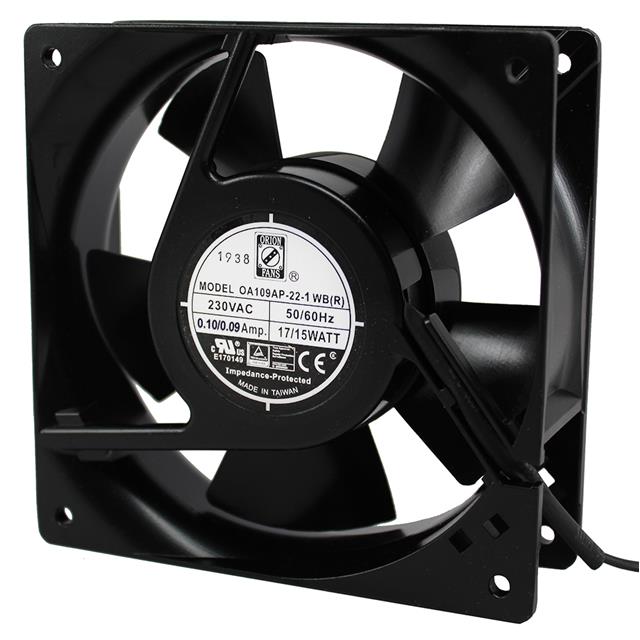

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Orion Fans OA109AP-22-1WBR

230VAC 120X38MM REVERSE AIRFLOW

Mfr Part No.: OA109AP-22-1WBR

Manufacturer : Orion Fans

Internal Code: 1822-216-9692339

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	AC Fans
Manufacturer	Orion Fans
Series	OA109AP
Packaging	Bulk
Part Status	Active
Voltage - Rated	230VAC
Size / Dimension	Square - 119.5mm L x 119.5mm H
Width	38.50mm
Air Flow	99.0 CFM (2.77m³/min)
Static Pressure	0.330 in H2O (82.2 Pa)
Bearing Type	Ball

Attribute Name	Attribute Value
Fan Type	Tubeaxial
Features	-
Noise	47.0dB(A)
Power (Watts)	15.00W
RPM	3100 RPM
Termination	2 Wire Leads
Ingress Protection	-
Operating Temperature	-4 ~ 176°F (-20 ~ 80°C)
Approval Agency	cURus, TUV
Weight	-

Resource Type	Link
Datasheets	OA109 AIOS Datasheet
Mfg Application Notes	White Papers: Reversible Flow Fans AC Fans Accessories Matrix AC,DC Part Number Guide
Environmental Information	Orion Compliance
Design Resources	Technical Terms

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
HTSUS	8414.59.6590
ECCN	EAR99

Others include "OA109" parts

The following parts include 'OA109', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
OA109AP-11-1WB	Orion Fans	8481 Available	-	FAN AXIAL 120X38MM 115VAC WIRE
OA109AP-11-2WB	Orion Fans	580 Available	-	FAN AXIAL 120X38MM 115VAC WIRE
OA109LFG221T	Orion Fans	Contact us for a quote	-	FAN AXIAL 148.5X76.5MM 230VAC
OA109EC-UR-1WB	Orion Fans	219 Available	-	FAN EC 120X38MM 90-265VAC
OA109EC-UR-1TB	Orion Fans	497 Available	-	FAN EC 120X38MM 90-265VAC
OA109AP-22-3WB	Orion Fans	218 Available	-	FAN AXIAL 120X38MM 230VAC WIRE
OA109AP-22-1WBR	Orion Fans	Contact us for a quote	-	230VAC 120X38MM REVERSE AIRFLOW
OA109LFGH111T	Orion Fans	Contact us for a quote	-	FAN AXIAL 156X74MM 115VAC TERM
OA109AP-22-2WBR	Orion Fans	Contact us for a quote	-	230VAC 120X38MM REVERSE AIRFLOW
OA109AP-22-2TBR	Orion Fans	Contact us for a quote	-	FAN AXIAL 119.5X38.5MM 230VAC
OA109AP-11-1TB	Orion Fans	29237 Available	-	FAN AXIAL 120X38MM 115VAC TERM
OA109AP-11-3TB	Orion Fans	843 Available	-	FAN AXIAL 120X38MM 115VAC TERM
OA109AP-11-3WB	Orion Fans	272 Available	-	FAN AXIAL 120X38MM 115VAC WIRE
OA109AP-22-1TB	Orion Fans	1645 Available	-	FAN AXIAL 120X38MM 230VAC TERM
OA109AP-22-1WB	Orion Fans	1493 Available	-	FAN AXIAL 120X38MM 230VAC WIRE
OA109AP-24-1TB	Orion Fans	269 Available	-	120X38MM 24VAC FAN TERM
OA109AP-11-1TBR	Orion Fans	4183 Available	-	FAN AXIAL 119.5X38.5MM 115VAC
OA109AP-11-2WBR	Orion Fans	92 Available	-	115VAC 120X38MM REVERSE AIRFLOW
OA109AP-22-1TBR	Orion Fans	378 Available	-	FAN AXIAL 119.5X38.5MM 230VAC
OA109LFGS111T	Orion Fans	Contact us for a quote	-	FAN AXIAL 156X76.8MM 115VAC TERM
