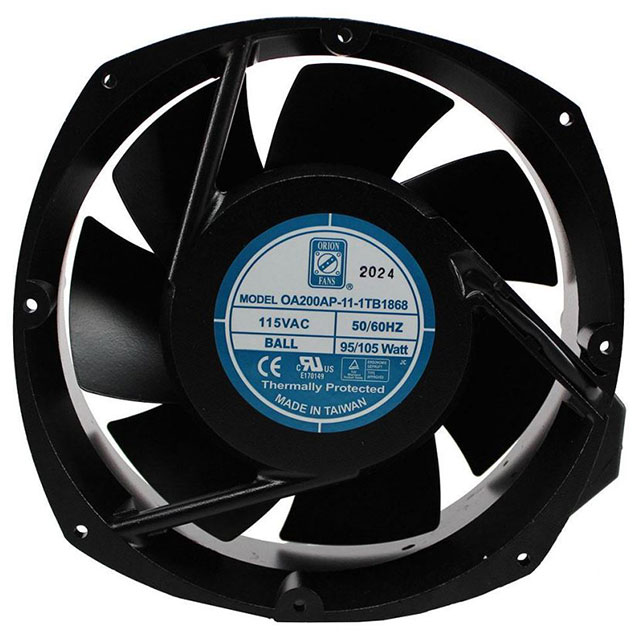

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Orion Fans OA200AP-11-1TB1869K

AC FAN, IP69K, 220X220X72MM, 115

Mfr Part No.: OA200AP-11-1TB1869K

Manufacturer : Orion Fans

Internal Code: 1822-216-9692612

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

58 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 1

Total:$128.97

Qty	Unit Price	Ext Price
1+	$128.9705	$128.97
10+	$124.72969	$1247.3
25+	$123.86265	$3096.57
50+	$123.00164	$6150.08
100+	$120.47173	$12047.17
500+	$118.45795	$59228.98

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	AC Fans
Manufacturer	Orion Fans
Series	OA200AP-IP69K
Packaging	Box
Part Status	Active
Voltage - Rated	115VAC
Size / Dimension	Rectangular/Rounded - 220mm L x 200mm H
Width	70.00mm
Air Flow	485.0 CFM (13.58m³/min)
Static Pressure	0.930 in H2O (231.7 Pa)
Bearing Type	Ball

Attribute Name	Attribute Value
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Noise	68.0dB
Power (Watts)	105W
RPM	3300 RPM
Termination	2 Terminals
Ingress Protection	IP69K - Dust Tight, Water Resistant, Waterproof
Operating Temperature	-22 ~ 176°F (-30 ~ 80°C)
Approval Agency	CE, cURus, TUV, UR
Weight	4.6 lbs (2.1 kg)

Resource Type	Link
Datasheets	OA200AP-IP69K Series
Other Related Documents	Standard Wire Colors White Paper:IF69K Fan Applications
Mfg Application Notes	IP69K Fans Sales Sheet AC Fans Accessories Matrix AC,DC Part Number Guide
Environmental Information	Orion Compliance
Design Resources	Technical Terms

Attribute	Description
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	Not Applicable
HTSUS	8414.59.6590
ECCN	EAR99

Others include "OA200" parts

The following parts include 'OA200', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
OA200EC-22-1WB	Orion Fans	Contact us for a quote	-	FAN 250X76MM 230VAC DUAL SPEED E
OA200EC-11-1WB	Orion Fans	3 Available	-	FAN 250X76MM 115VAC DUAL SPEED E
OA200AP-22-1TB1868	Orion Fans	20 Available	-	FAN 230AC 220X220X70MM IP68 TERM
OA200AN-11-1TB1856	Orion Fans	25 Available	-	FAN AXIAL 200X70MM 115VAC TERM
OA200AP-11-1TB1869K	Orion Fans	58 Available	-	AC FAN, IP69K, 220X220X72MM, 115
OA200AP-11-1TB1868	Orion Fans	46 Available	-	FAN 115AC 220X220X70MM IP68 TERM
OA200AN-22-1WB1856	Orion Fans	159 Available	-	FAN AXIAL 200X70MM 230VAC WIRE
OA200AN-22-1TB1856	Orion Fans	26 Available	-	FAN AXIAL 200X70MM 230VAC TERM
OA200AP-22-1WB1868	Orion Fans	20 Available	-	FAN 230AC 220X220X70MM IP68 WIRE
OA200AP-11-1WB1868	Orion Fans	28 Available	-	FAN 115AC 220X220X70MM IP68 WIRE
OA200AN-11-1WB1856	Orion Fans	19 Available	-	FAN AXIAL 200X70MM 115VAC WIRE
OA200AP-22-1TB1869K	Orion Fans	45 Available	-	AC FAN, IP69K, 220X220X72MM, 230
OA200AP-11-1WB1869K	Orion Fans	31 Available	-	AC FAN, IP69K, 220X220X72MM, 115
OA200AP-22-1WB1869K	Orion Fans	46 Available	-	AC FAN, IP69K, 220X220X72MM, 230
