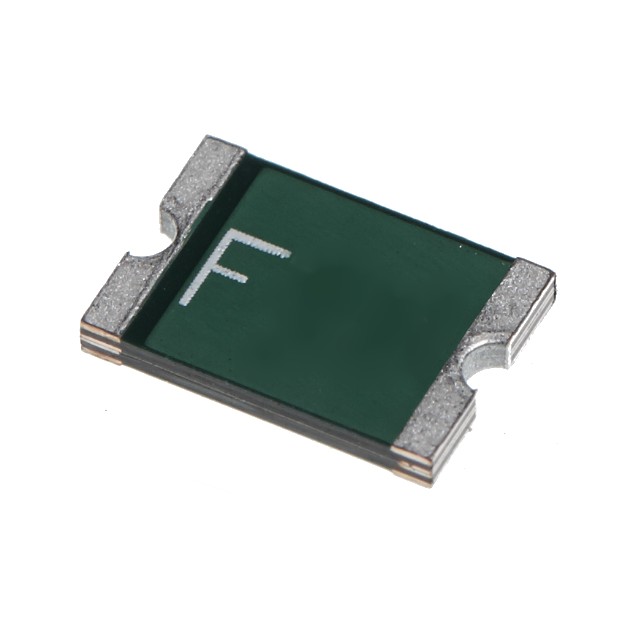

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

RFE/Fuzetec FSMD030-2920-R

RESETTABLE FUSE - SMD, 2920 SIZE

Mfr Part No.: FSMD030-2920-R

Manufacturer : RFE/Fuzetec

Internal Code: 2081-150-6989405

Package : 2920 (7351 Metric), Concave

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

768 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 50

Total:$0.2

Qty	Unit Price	Ext Price
1+	$0.20064	$0.2
10+	$0.1824	$1.82
100+	$0.16734	$16.73
500+	$0.15494	$77.47
1000+	$0.14481	$144.81
3000+	$0.13661	$409.83

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	PTC Resettable Fuses
Manufacturer	RFE/Fuzetec
Series	FSMD2920
Packaging	Tape & Reel (TR)
Part Status	Active
Type	-
Voltage - Max	60V
Current - Hold (Ih) (Max)	300 mA
Current - Trip (It)	600 mA
Current - Max	100 A
Time to Trip	3 s

Attribute Name	Attribute Value
Resistance - Initial (Ri) (Min)	1 Ohms
Resistance - Post Trip (R1) (Max)	4.8 Ohms
Operating Temperature	-40°C ~ 85°C
Ratings	-
Mounting Type	Surface Mount
Package / Case	2920 (7351 Metric), Concave
Size / Dimension	0.290" L x 0.202" W (7.36mm x 5.12mm)
Height - Seated (Max)	-
Thickness (Max)	0.045" (1.15mm)
Lead Spacing	-

Resource Type	Link
Datasheets	FSMD2920 Series
HTML Datasheet	FSMD2920 Series

Attribute	Description
RoHS Status	ROHS3 Compliant
HTSUS	8533.40.8070
REACH Status	REACH Unaffected
Moisture Sensitivity Level (MSL)	2 (1 Year)
ECCN	EAR99

Others include "FSMD0" parts

The following parts include 'FSMD0', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
FSMD014-R	RFE/Fuzetec	2054 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD050-R	RFE/Fuzetec	911 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD010-R	RFE/Fuzetec	2101 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD020-R	RFE/Fuzetec	1650 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD030-R	RFE/Fuzetec	1884 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD075-R	RFE/Fuzetec	2104 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD035-R	RFE/Fuzetec	2116 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD075-33R	RFE/Fuzetec	12101 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD020-60-R	RFE/Fuzetec	2151 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD035-30-R	RFE/Fuzetec	1543 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD050-30-R	RFE/Fuzetec	2110 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD075-24R	RFE/Fuzetec	1627 Available	1812 (4532 Metric), Concave	RESETTABLE FUSE - SMD, 1812 SIZE
FSMD035-1206-R	RFE/Fuzetec	13744 Available	1206 (3216 Metric), Concave	RESETTABLE FUSE - SMD, 1206 SIZE
FSMD005-1206-R	RFE/Fuzetec	12966 Available	1206 (3216 Metric), Concave	RESETTABLE FUSE - SMD, 1206 SIZE
FSMD020-0805-R	RFE/Fuzetec	3836 Available	0805 (2012 Metric), Concave	RESETTABLE FUSE - SMD, 0805 SIZE
FSMD030-2920-R	RFE/Fuzetec	768 Available	2920 (7351 Metric), Concave	RESETTABLE FUSE - SMD, 2920 SIZE
FSMD050-1206-R	RFE/Fuzetec	13816 Available	1206 (3216 Metric), Concave	RESETTABLE FUSE - SMD, 1206 SIZE
FSMD050-0805R	RFE/Fuzetec	13390 Available	0805 (2012 Metric), Concave	RESETTABLE FUSE - SMD, 0805 SIZE
FSMD075-2920-R	RFE/Fuzetec	2113 Available	2920 (7351 Metric), Concave	RESETTABLE FUSE - SMD, 2920 SIZE
FSMD075-1206R	RFE/Fuzetec	3106 Available	1206 (3216 Metric), Concave	RESETTABLE FUSE - SMD, 1206 SIZE
