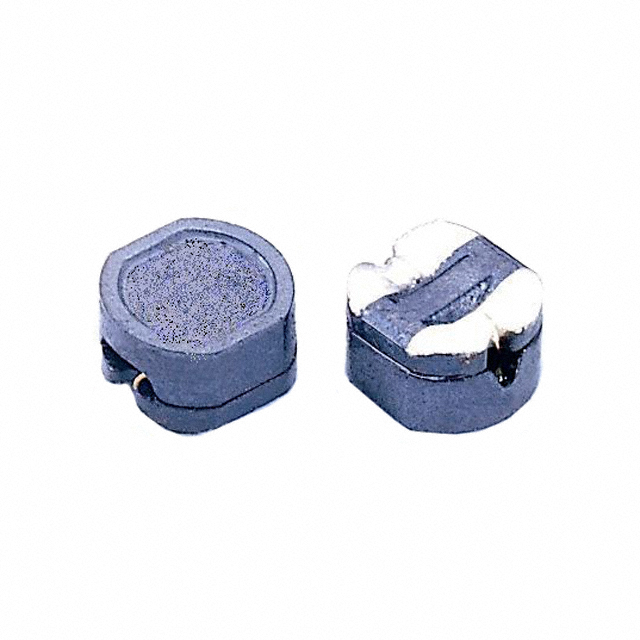

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Signal Transformer SCR63B-150

FIXED IND 15UH 1.37A 180MOHM SMD

Mfr Part No.: SCR63B-150

Manufacturer : Signal Transformer

Internal Code: 2248-71-11321633

Package : Nonstandard

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Fixed Inductors
Manufacturer	Signal Transformer
Series	SCR63B
Packaging	Tape & Reel (TR)
Part Status	Obsolete
Type	-
Material - Core	-
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	1.37 A
Current - Saturation (Isat)	860mA
Shielding	Shielded

Attribute Name	Attribute Value
DC Resistance (DCR)	180mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	2.52 MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.256" L x 0.232" W (6.50mm x 5.90mm)
Height - Seated (Max)	0.138" (3.50mm)

Resource Type	Link
Datasheets	SCR63B Series
PCN Obsolescence/ EOL	Mult Devs 12/Dec/2020
HTML Datasheet	SCR63B Series

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000

Others include "SCR63" parts

The following parts include 'SCR63', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
SCR630T	Littelfuse Inc.	Contact us for a quote	-	UNIVERSAL LIGHT ALARM RELAY
SCR63B-470	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 47UH 720MA 510 MOHM
SCR63B-390	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 39UH 800MA 470 MOHM
SCR63B-560	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 56UH 640MA 720 MOHM
SCR63B-330	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 33UH 890MA 410MOHM SMD
SCR63B-680	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 68UH 570MA 820MOHM SMD
SCR63B-100	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 10UH 1.8A 140 MOHM SMD
SCR63B-270	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 27UH 990MA 360 MOHM
SCR63B-120	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 12UH 1.53A 160MOHM SMD
SCR63B-150	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 15UH 1.37A 180MOHM SMD
SCR63B-220	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 22UH 1.1A 320 MOHM SMD
SCR63B-180	Signal Transformer	Contact us for a quote	Nonstandard	FIXED IND 18UH 1.23A 250 MOHM
