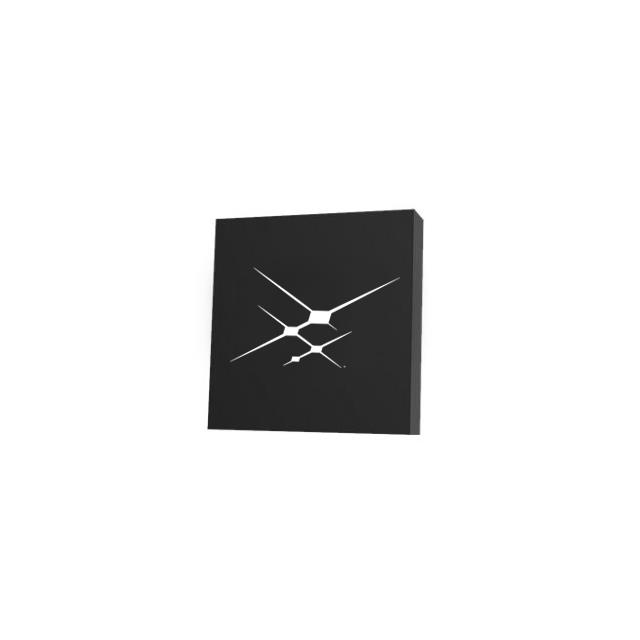

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Skyworks Solutions Inc. 542BCA002596ACGR

DIFFERENTIAL/SINGLE-ENDED; QUAD

Mfr Part No.: 542BCA002596ACGR

Manufacturer : Skyworks Solutions Inc.

Internal Code: 2277-176-2264509

Package : 8-SMD, No Lead

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Pin Configurable/Selectable Oscillators
Manufacturer	Skyworks Solutions, Inc.
Series	Ultra™ Si542
Packaging	Tape & Reel (TR)
Part Status	Active
Base Resonator	Crystal
Type	XO (Standard)
Frequency - Output 1	40MHz
Frequency - Output 2	72MHz
Frequency - Output 3	80MHz
Frequency - Output 4	100MHz

Attribute Name	Attribute Value
Function	Enable/Disable (Reprogrammable)
Output	LVDS
Voltage - Supply	1.8V, 2.5V, 3.3V
Frequency Stability	±7ppm
Operating Temperature	-40°C ~ 85°C
Current - Supply (Max)	111mA
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height	0.052" (1.33mm)
Package / Case	8-SMD, No Lead
Current - Supply (Disable) (Max)	100 mA

Resource Type	Link
HTML Datasheet	Si542
Datasheets	Si542

Attribute	Description
ECCN	EAR99
HTSUS	8542.39.0001
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Others include "542BC" parts

The following parts include '542BC', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
542BCA002569CCGR	Skyworks Solutions Inc.	Contact us for a quote	8-SMD, No Lead	DIFFERENTIAL/SINGLE-ENDED; QUAD
542BCA002596ACGR	Skyworks Solutions Inc.	Contact us for a quote	8-SMD, No Lead	DIFFERENTIAL/SINGLE-ENDED; QUAD
542BCA002596ACG	Skyworks Solutions Inc.	Contact us for a quote	8-SMD, No Lead	DIFFERENTIAL/SINGLE-ENDED; QUAD
542BCA002598ACG	Skyworks Solutions Inc.	Contact us for a quote	8-SMD, No Lead	DIFFERENTIAL/SINGLE-ENDED; QUAD
542BCA000489CCG	Skyworks Solutions Inc.	Contact us for a quote	8-SMD, No Lead	DIFFERENTIAL/SINGLE-ENDED; QUAD
542BCA002569CCG	Skyworks Solutions Inc.	Contact us for a quote	8-SMD, No Lead	DIFFERENTIAL/SINGLE-ENDED; QUAD
542BCA000489CCGR	Skyworks Solutions Inc.	Contact us for a quote	8-SMD, No Lead	DIFFERENTIAL/SINGLE-ENDED; QUAD
542BCA002598ACGR	Skyworks Solutions Inc.	Contact us for a quote	8-SMD, No Lead	DIFFERENTIAL/SINGLE-ENDED; QUAD
