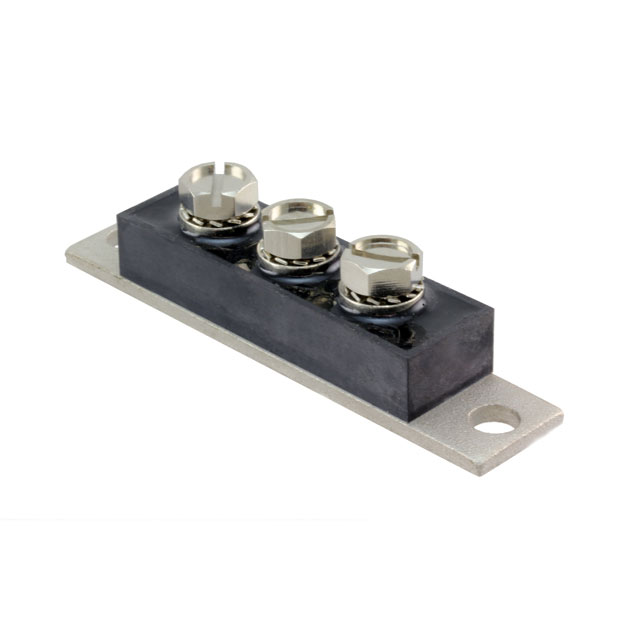

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

SMC Diode Solutions 200CMQ040

DIODE MOD SCHOTT 40V 100A PRM4

Mfr Part No.: 200CMQ040

Manufacturer : SMC Diode Solutions

Internal Code: 2284-286-1121900

Package : PRM4

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Rectifiers - Diode Arrays
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V

Attribute Name	Attribute Value
Current - Average Rectified (Io) (per Diode)	100A
Voltage - Forward (Vf) (Max) @ If	540 mV @ 100 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	10 mA @ 40 V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Chassis Mount
Package / Case	PRM4
Supplier Device Package	PRM4 (Isolated)

Resource Type	Link
Datasheets	200CMQ035, 040, 045
Environmental Information	SMC Diodes REACH 205 SMC Diodes RoHS
HTML Datasheet	200CMQ035, 040, 045

Attribute	Description
REACH Status	REACH Affected
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080

Others include "200CM" parts

The following parts include '200CM', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
200CM	MCR Safety	86 Available	-	RIVER CITY CLASSIC RAIN COAT, ME
200CMQ035	SMC Diode Solutions	Contact us for a quote	PRM4	DIODE MOD SCHOTT 35V 100A PRM4
200CMQ045	SMC Diode Solutions	Contact us for a quote	PRM4	DIODE MOD SCHOTT 45V 100A PRM4
200CMQ040	SMC Diode Solutions	Contact us for a quote	PRM4	DIODE MOD SCHOTT 40V 100A PRM4
