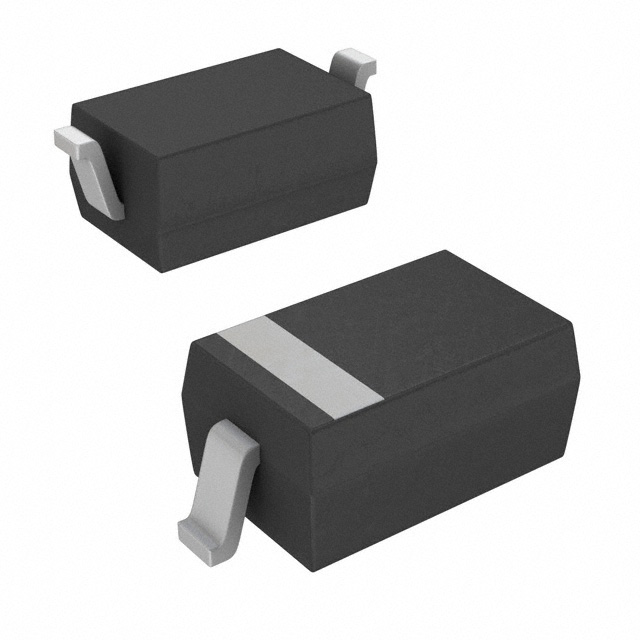

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

SMC Diode Solutions MBR140HW

DIODE SCHOTTKY 40V 1A SOD123

Mfr Part No.: MBR140HW

Manufacturer : SMC Diode Solutions

Internal Code: 2284-280-8882151

Package : SOD-123

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Rectifiers - Single Diodes
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	1A

Attribute Name	Attribute Value
Voltage - Forward (Vf) (Max) @ If	550 mV @ 1 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500 µA @ 40 V
Capacitance @ Vr, F	50pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-123
Supplier Device Package	SOD-123
Operating Temperature - Junction	-65°C ~ 125°C

Resource Type	Link
Datasheets	MBR120HW, MBR140HW
Environmental Information	SMC Diodes REACH 205 SMC Diodes RoHS
HTML Datasheet	MBR120HW, MBR140HW

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080

Others include "MBR14" parts

The following parts include 'MBR14', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
MBR140HW	SMC Diode Solutions	Contact us for a quote	SOD-123	DIODE SCHOTTKY 40V 1A SOD123
MBR140HWTR	SMC Diode Solutions	Contact us for a quote	SOD-123	DIODE SCHOTTKY 40V 1A SOD123
MBR140SFX	Nexperia USA Inc.	3154 Available	-	MBR140SF/SOD123FL/SOD2
MBR140LSF-TP	Micro Commercial Co	Contact us for a quote	SOD-123F	DIODE SCHOTTKY 40V 1A SOD123FL
MBR140SFT1	onsemi	Contact us for a quote	SOD-123F	DIODE SCHOTTKY 40V 1A SOD123FL
MBR140SFT3	onsemi	Contact us for a quote	SOD-123F	DIODE SCHOTTKY 40V 1A SOD123FL
MBR140SFT1H	onsemi	Contact us for a quote	SOD-123F	DIODE SCHOTTKY 40V 1A SOD123FL
MBR140ESFX	Nexperia USA Inc.	3115 Available	-	MBR140ESF/SOD123FL/SOD2
MBR140SFT1G	onsemi	96655 Available	SOD-123F	DIODE SCHOTTKY 40V 1A SOD123FL
MBR140ESFT1G	onsemi	13035 Available	SOD-123F	DIODE SCHOTTKY 40V 1A SOD123FL
MBR140SFT3G	onsemi	34104 Available	SOD-123F	DIODE SCHOTTKY 40V 1A SOD123FL
MBR140ESFT3G	onsemi	Contact us for a quote	SOD-123F	DIODE SCHOTTKY 40V 1A SOD123FL
