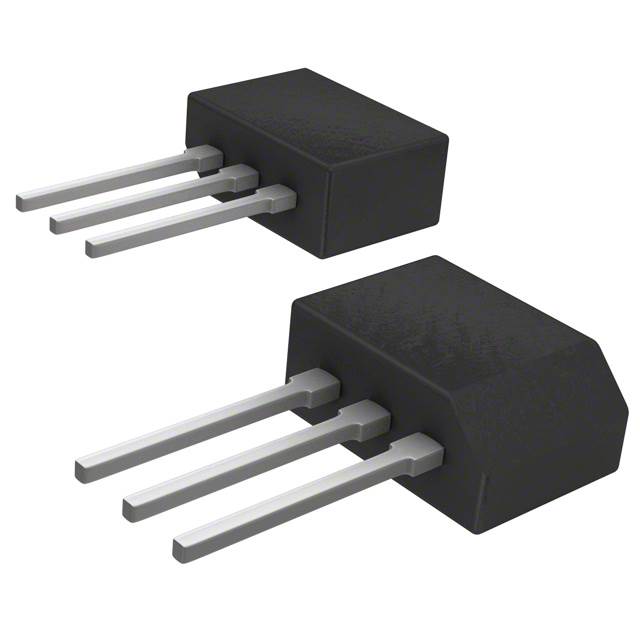

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

STMicroelectronics Z0405NF0AA2

TRIAC SENS GATE 800V 4A TO202-3

Mfr Part No.: Z0405NF0AA2

Manufacturer : STMicroelectronics

Internal Code: 2348-300-13331798

Package : TO-202 No Tab

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Thyristors - TRIACs
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Obsolete
Triac Type	Logic - Sensitive Gate
Voltage - Off State	800 V
Current - On State (It (RMS)) (Max)	4 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V

Attribute Name	Attribute Value
Current - Non Rep. Surge 50, 60Hz (Itsm)	20A, 21A
Current - Gate Trigger (Igt) (Max)	5 mA
Current - Hold (Ih) (Max)	5 mA
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-202 No Tab
Supplier Device Package	TO-202-3

Resource Type	Link
Datasheets	Z04

Attribute	Description
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
HTSUS	8541.30.0080
ECCN	EAR99

Others include "Z0405" parts

The following parts include 'Z0405', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
Z0405MH	STMicroelectronics	2092 Available	TO-251-3 Short Leads, IPAK, TO-251AA	TRIAC 600V 4A IPAK
Z0405MB	STMicroelectronics	2642 Available	TO-252-3, DPAK (2 Leads + Tab), SC-63	TRIAC 600V 4A DPAK
Z0405NF0AA2	STMicroelectronics	Contact us for a quote	TO-202 No Tab	TRIAC SENS GATE 800V 4A TO202-3
Z0405DE 1AA2	STMicroelectronics	Contact us for a quote	TO-202 Long Tab	TRIAC SENS GATE 400V 4A TO202
Z0405ME 1AA2	STMicroelectronics	Contact us for a quote	TO-202 Long Tab	TRIAC SENS GATE 600V 4A TO202
Z0405MF0AA2	STMicroelectronics	Contact us for a quote	TO-202 No Tab	TRIAC SENS GATE 600V 4A TO202-3
Z0405DF 1AA2	STMicroelectronics	Contact us for a quote	TO-202 No Tab	TRIAC SENS GATE 400V 4A TO202-3
Z0405MF 1AA2	STMicroelectronics	Contact us for a quote	TO-202 No Tab	TRIAC SENS GATE 600V 4A TO202-3
Z0405NF 1AA2	STMicroelectronics	Contact us for a quote	TO-202 No Tab	TRIAC SENS GATE 800V 4A TO202-3
