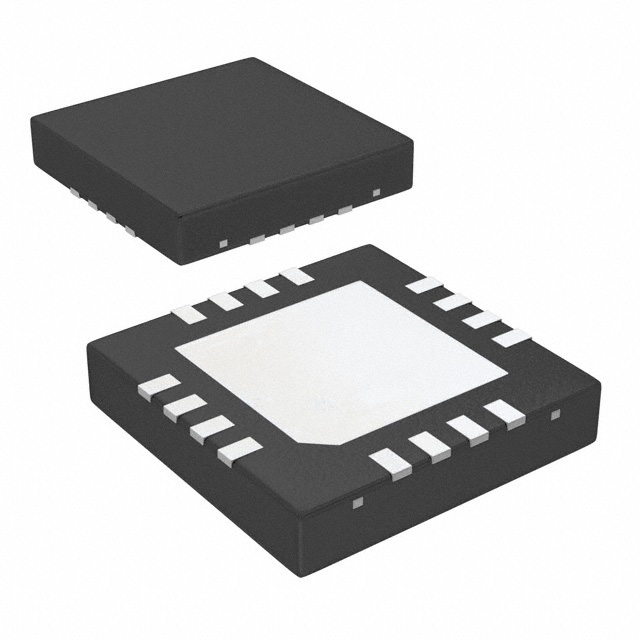

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Texas Instruments DS15EA101SQE/NOPB

IC INTERFACE SPECIALIZED 16WQFN

Mfr Part No.: DS15EA101SQE/NOPB

Manufacturer : Texas Instruments

Internal Code: 2495-754-6235695

Package : 16-WFQFN Exposed Pad

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

11932 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 250

Total:$4.91

Qty	Unit Price	Ext Price
1+	$4.9133	$4.91
10+	$4.46663	$44.67
100+	$4.09783	$409.78
500+	$3.79427	$1897.14
1000+	$3.54605	$3546.05
3000+	$3.57186	$10715.58

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Interface - Specialized
Manufacturer	Texas Instruments
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Applications	Displays

Attribute Name	Attribute Value
Interface	Coax Cable and Female Connector
Voltage - Supply	3.135V ~ 3.465V
Package / Case	16-WFQFN Exposed Pad
Supplier Device Package	16-WQFN (4x4)
Mounting Type	Surface Mount

Resource Type	Link
Datasheets	DS15EA101SQX/NOPB
PCN Design/Specification	Cu Wire 21/Mar/2017

Attribute	Description
REACH Status	REACH Unaffected
Moisture Sensitivity Level (MSL)	3 (168 Hours)
RoHS Status	ROHS3 Compliant
ECCN	5A991B1
HTSUS	8542.39.0001

Others include "DS15E" parts

The following parts include 'DS15E', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
DS15EA101RGH-P	Texas Instruments	Contact us for a quote	16-WFQFN Exposed Pad	PROTOTYPE
DS15EA101SQ/NOPB	National Semiconductor	59 Available	16-WFQFN Exposed Pad	DS15EA101 DS15EA101 0.15 TO 1.5
DS15EA101SQE/NOPB	Texas Instruments	11932 Available	16-WFQFN Exposed Pad	IC INTERFACE SPECIALIZED 16WQFN
DS15EA101SQ/NOPB	Texas Instruments	6632 Available	16-WFQFN Exposed Pad	IC INTERFACE SPECIALIZED 16WQFN
DS15EA101ASQ/NOPB	Texas Instruments	Contact us for a quote	-	PROTOTYPE
DS15EA101SQX/NOPB	Texas Instruments	21200 Available	16-WFQFN Exposed Pad	IC INTERFACE SPECIALIZED 16WQFN
