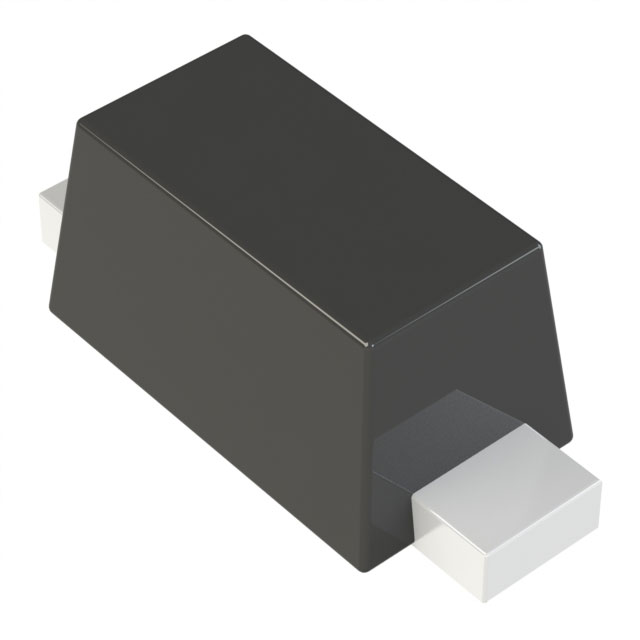

Vishay General Semiconductor - Diodes Division MFG Image

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Vishay General Semiconductor - Diodes Division VESD05-02V-GS08

TVS DIODE 5VWM 20VC SOD523

Mfr Part No.: VESD05-02V-GS08

Manufacturer : Vishay General Semiconductor - Diodes Division

Internal Code: 2677-144-12889552

Package : SC-79, SOD-523

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	TVS - Diodes
Manufacturer	Vishay General Semiconductor – Diodes Division
Series	-
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Obsolete
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown (Min)	6.5V
Voltage - Clamping (Max) @ Ipp	20V

Attribute Name	Attribute Value
Current - Peak Pulse (10/1000µs)	6A (8/20µs)
Power - Peak Pulse	-
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	55pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523

Attribute	Description
ECCN	EAR99
REACH Status	REACH Unaffected
HTSUS	8541.10.0080
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Others include "VESD0" parts

The following parts include 'VESD0', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
VESD05-02V-G-08	Vishay Semiconductor Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 5VWM 20VC SOD523
VESD03-02V-G-08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 3VWM 12VC SOD523
VESD05-02V-G-08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 5VWM 20VC SOD523
VESD05-02V-GS08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 5VWM 20VC SOD523
VESD01-02V-GS08	Vishay Semiconductor Diodes Division	Contact us for a quote	SC-79, SOD-523	ESD Suppressor TVS 15KV 2-Pin SOD-523 T/R
VESD01-02V-G-08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 1VWM 9VC SOD523
VESD08-02V-G-08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 8VWM 30VC SOD523
VESD01-02V-GS08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 1VWM 9VC SOD523
VESD05A1-02V-G-08	Vishay Semiconductor Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 5VWM 12VC SOD523
VESD05C-FC1-GS08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	4-UFBGA, FCBGA	TVS DIODE 5VWM 12VC 1005 FLIPCHP
VESD03-02V-GS08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 3VWM 12VC SOD523
VESD08-02V-GS08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 8VWM 30VC SOD523
VESD05A1-02V-G-08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 5VWM 12VC SOD523
VESD05A2-03F-GS08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-89, SOT-490	TVS DIODE 5VWM 11VC SOT490
VESD05A6-HA3-GS08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	6-WFDFN Exposed Pad	TVS DIODE 5VWM 12VC LLP75-7A
VESD05B1-02V-G3-08	Vishay Semiconductor Diodes Division	Contact us for a quote	SC-79, SOD-523	Single ESD-Protection Diode in SOD-523
VESD05C1-02V-G3-08	Vishay Semiconductor Diodes Division	Contact us for a quote	SC-79, SOD-523	Single-Line ESD-Protection Diode in SOD-523
VESD05A2-03G-G3-08	Vishay General Semiconductor - Diodes Division	23648 Available	SC-70, SOT-323	TVS DIODE 5VWM 11.5VC SOT323
VESD05C1-02V-G3-08	Vishay General Semiconductor - Diodes Division	49654 Available	SC-79, SOD-523	TVS DIODE 5VWM 11.5VC SOD523
VESD05A1-02V-G3-08	Vishay General Semiconductor - Diodes Division	Contact us for a quote	SC-79, SOD-523	TVS DIODE 5VWM 12VC SOD523
