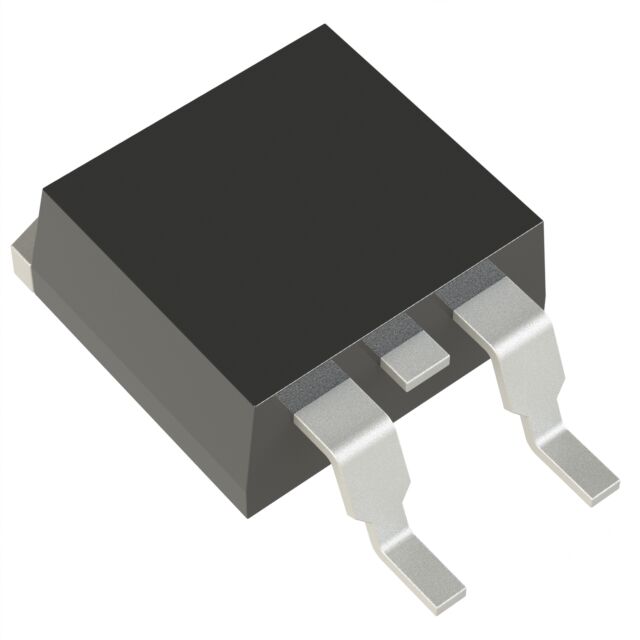

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Vishay Siliconix IRFZ34SPBF

MOSFET N-CH 60V 30A D2PAK

Mfr Part No.: IRFZ34SPBF

Manufacturer : Vishay Siliconix

Internal Code: 2662-278-13389970

Package : TO-263-3, D2PAK (2 Leads + Tab), TO-263AB

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

62 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 1000

Total:$2.09

Qty	Unit Price	Ext Price
1+	$2.093	$2.09
10+	$1.90273	$19.03
100+	$1.74563	$174.56
500+	$1.61631	$808.16
1000+	$1.51057	$1510.57
3000+	$1.42507	$4275.21

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Single FETs, MOSFETs
Manufacturer	Vishay
Series	-
Packaging	Tube
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	50mOhm @ 18A, 10V

Attribute Name	Attribute Value
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	46 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1200 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.7W (Ta), 88W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TO-263 (D2PAK)
Package / Case	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB

Resource Type	Link
Datasheets	IRFZ34(S,L),SiHFZ34(S,L)
HTML Datasheet	IRFZ34(S,L),SiHFZ34(S,L)
PCN Obsolescence/ EOL	EOL 02/May/2024

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095

Others include "IRFZ3" parts

The following parts include 'IRFZ3', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
IRFZ34	Vishay Siliconix	Contact us for a quote	TO-220-3	MOSFET N-CH 60V 30A TO220AB
IRFZ34S	Vishay Siliconix	Contact us for a quote	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	MOSFET N-CH 60V 30A D2PAK
IRFZ34E	Infineon Technologies	Contact us for a quote	TO-220-3	MOSFET N-CH 60V 28A TO220AB
IRFZ30	Vishay Siliconix	Contact us for a quote	TO-220-3	MOSFET N-CH 50V 30A TO220AB
IRFZ34NS	Infineon Technologies	Contact us for a quote	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	MOSFET N-CH 55V 29A D2PAK
IRFZ34L	Vishay Siliconix	Contact us for a quote	TO-262-3 Long Leads, I2PAK, TO-262AA	MOSFET N-CH 60V 30A TO262-3
IRFZ34NL	Infineon Technologies	Contact us for a quote	TO-262-3 Long Leads, I2PAK, TO-262AA	MOSFET N-CH 55V 29A TO262
IRFZ34STRR	Vishay Siliconix	Contact us for a quote	TO-263-3, D2Pak (2 Leads + Tab), TO-263AB	MOSFET N-CH 60V 30A D2PAK
IRFZ34EPBF	Infineon Technologies	3313 Available	TO-220-3	MOSFET N-CH 60V 28A TO220AB
IRFZ30PBF	Vishay Siliconix	Contact us for a quote	TO-220-3	MOSFET N-CH 50V 30A TO220AB
IRFZ34PBF	Vishay Siliconix	7925 Available	TO-220-3	MOSFET N-CH 60V 30A TO220AB
IRFZ34NSPBF	Infineon Technologies	10381 Available	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	MOSFET N-CH 55V 29A D2PAK
IRFZ34SPBF	Vishay Siliconix	62 Available	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	MOSFET N-CH 60V 30A D2PAK
IRFZ34NPBF	Infineon Technologies	36381 Available	TO-220-3	MOSFET N-CH 55V 29A TO220AB
IRFZ34STRL	Vishay Siliconix	Contact us for a quote	TO-263-3, D2Pak (2 Leads + Tab), TO-263AB	MOSFET N-CH 60V 30A D2PAK
IRFZ34NLPBF	Infineon Technologies	Contact us for a quote	TO-262-3 Long Leads, I2PAK, TO-262AA	MOSFET N-CH 55V 29A TO262
IRFZ34NSTRR	Infineon Technologies	Contact us for a quote	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	MOSFET N-CH 55V 29A D2PAK
IRFZ34PBF-BE3	Vishay Siliconix	861 Available	TO-220-3	MOSFET N-CH 60V 30A TO220AB
IRFZ34NSTRLPBF	Infineon Technologies	7694 Available	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	MOSFET N-CH 55V 29A D2PAK
IRFZ34STRLPBF	Vishay Siliconix	Contact us for a quote	TO-263-3, D2PAK (2 Leads + Tab), TO-263AB	MOSFET N-CH 60V 30A D2PAK
