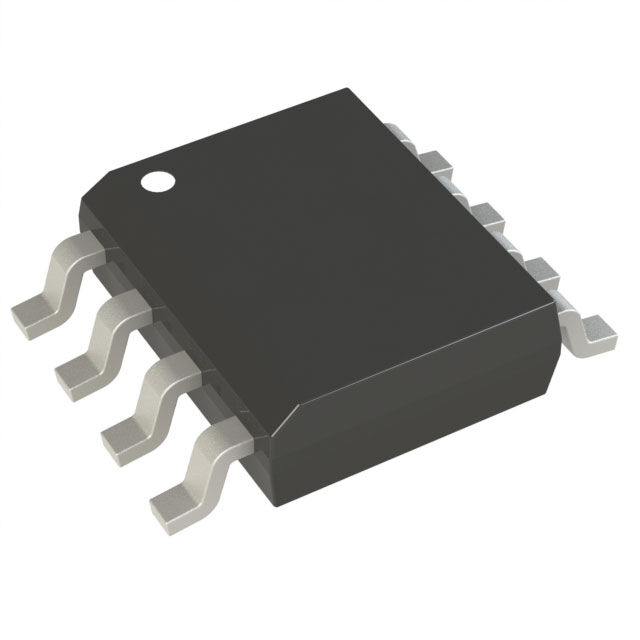

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Vishay Siliconix SI4442DY-T1-E3

MOSFET N-CH 30V 15A 8SO

Mfr Part No.: SI4442DY-T1-E3

Manufacturer : Vishay Siliconix

Internal Code: 2662-278-13389981

Package : 8-SOIC (0.154", 3.90mm Width)

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

25315 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 2500

Total:$1.63

Qty	Unit Price	Ext Price
1+	$1.62942	$1.63
10+	$1.48129	$14.81
100+	$1.35898	$135.9
500+	$1.25832	$629.16
1000+	$1.176	$1176
3000+	$1.10944	$3328.32

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Single FETs, MOSFETs
Manufacturer	Vishay
Series	TrenchFET®
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 10V

Attribute Name	Attribute Value
Rds On (Max) @ Id, Vgs	4.5mOhm @ 22A, 10V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 4.5 V
Vgs (Max)	±12V
FET Feature	-
Power Dissipation (Max)	1.6W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Package / Case	8-SOIC (0.154", 3.90mm Width)

Resource Type	Link
Datasheets	SI4442DY
HTML Datasheet	SI4442DY
PCN Assembly/Origin	New solder paste 26/May/2023
PCN Design/Specification	Mult Dev 07/Jun/2023
PCN Obsolescence/ EOL	Mult Dev EOL 2/May/2024

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.29.0095

Others include "SI444" parts

The following parts include 'SI444', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
SI4447DY-T1-E3	Vishay Siliconix	36 Available	8-SOIC (0.154", 3.90mm Width)	MOSFET P-CH 40V 3.3A 8SO
SI4442DY-T1-E3	Vishay Siliconix	25315 Available	8-SOIC (0.154", 3.90mm Width)	MOSFET N-CH 30V 15A 8SO
SI4448DY-T1-E3	Vishay Siliconix	Contact us for a quote	8-SOIC (0.154", 3.90mm Width)	MOSFET N-CH 12V 50A 8SO
SI4442DY-T1-GE3	Vishay Siliconix	Contact us for a quote	8-SOIC (0.154", 3.90mm Width)	MOSFET N-CH 30V 15A 8SO
SI4446DY-T1-E3	Vishay Siliconix	20502 Available	8-SOIC (0.154", 3.90mm Width)	MOSFET N-CH 40V 3.9A 8SO
SI4447ADY-T1-GE3	Vishay Siliconix	15091 Available	8-SOIC (0.154", 3.90mm Width)	MOSFET P-CH 40V 7.2A 8SO
SI4446DY-T1-GE3	Vishay Siliconix	Contact us for a quote	8-SOIC (0.154", 3.90mm Width)	MOSFET N-CH 40V 3.9A 8SO
SI4447DY-T1-GE3	Vishay Siliconix	59649 Available	8-SOIC (0.154", 3.90mm Width)	MOSFET P-CH 40V 3.3A 8SO
SI4448DY-T1-GE3	Vishay Siliconix	Contact us for a quote	8-SOIC (0.154", 3.90mm Width)	MOSFET N-CH 12V 50A 8SO
