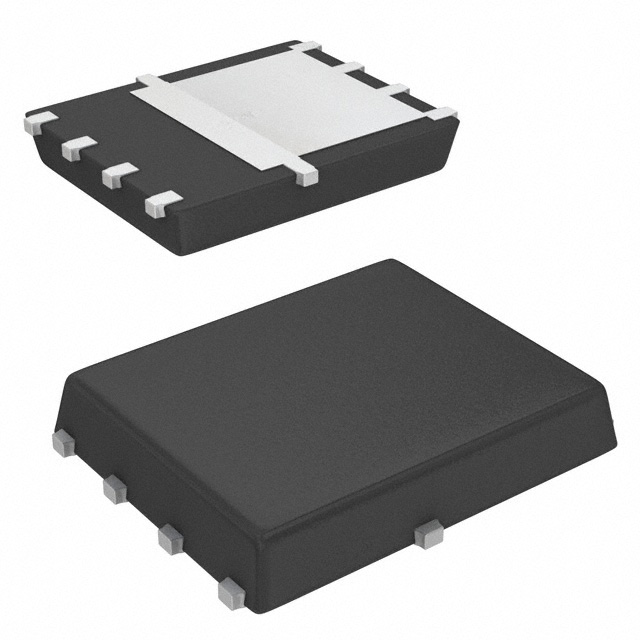

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Vishay Siliconix SIR4606DP-T1-GE3

N-CHANNEL 60 V (D-S) MOSFET POWE

Mfr Part No.: SIR4606DP-T1-GE3

Manufacturer : Vishay Siliconix

Internal Code: 2671-278-11552356

Package : PowerPAK® SO-8

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

7076 In Stock

Minimum: 1 Multiple: 1

Standard Pkg: 3000

Total:$0.55

Qty	Unit Price	Ext Price
1+	$0.54593	$0.55
10+	$0.4963	$4.96
100+	$0.45532	$45.53
500+	$0.42159	$210.8
1000+	$0.39401	$394.01
3000+	$0.37171	$1115.13

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Single FETs, MOSFETs
Manufacturer	Vishay / Siliconix
Series	TrenchFET®
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	10.5A (Ta), 16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	7.5V, 10V
Rds On (Max) @ Id, Vgs	18.5mOhm @ 4A, 10V

Attribute Name	Attribute Value
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13.5 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	540 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	3.7W (Ta), 31.2W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8

Resource Type	Link
Datasheets	SiR4606DP
PCN Assembly/Origin	New Solder Plating Site 18/Apr/2023

Attribute	Description
REACH Status	REACH Unaffected
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095

Others include "SIR46" parts

The following parts include 'SIR46', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
SIR460DP-T1-GE3	Vishay Siliconix	19525 Available	PowerPAK® SO-8	MOSFET N-CH 30V 40A PPAK SO-8
SIR462DP-T1-GE3	Vishay Siliconix	33159 Available	PowerPAK® SO-8	MOSFET N-CH 30V 30A PPAK SO-8
SIR464DP-T1-GE3	Vishay Siliconix	33654 Available	PowerPAK® SO-8	MOSFET N-CH 30V 50A PPAK SO-8
SIR468DP-T1-GE3	Vishay Siliconix	22779 Available	PowerPAK® SO-8	MOSFET N-CH 30V 40A PPAK SO-8
SIR466DP-T1-GE3	Vishay Siliconix	31373 Available	PowerPAK® SO-8	MOSFET N-CH 30V 40A PPAK SO-8
SIR4608DP-T1-GE3	Vishay Siliconix	6232 Available	PowerPAK® SO-8	N-CHANNEL 60 V (D-S) MOSFET POWE
SIR4606DP-T1-GE3	Vishay Siliconix	7076 Available	PowerPAK® SO-8	N-CHANNEL 60 V (D-S) MOSFET POWE
SIR4604DP-T1-GE3	Vishay Siliconix	7928 Available	PowerPAK® SO-8	N-CHANNEL 60 V (D-S) MOSFET POWE
SIR4604LDP-T1-GE3	Vishay Siliconix	5208 Available	PowerPAK® SO-8	N-CHANNEL 60 V (D-S) MOSFET POWE
SIR4608LDP-T1-GE3	Vishay Siliconix	6088 Available	PowerPAK® SO-8	N-CHANNEL 60 V (D-S) MOSFET POWE
SIR4602LDP-T1-RE3	Vishay Siliconix	9616 Available	PowerPAK® SO-8	POWERPAK SO-8, 8.8 M @ 10V, 12.5
