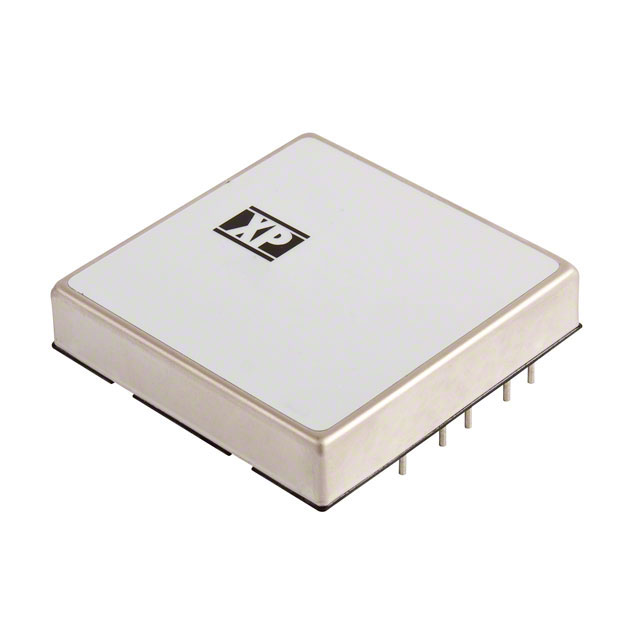

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

XP Power JTL4048D12

DC DC CONVERTER +/-12V 40W

Mfr Part No.: JTL4048D12

Manufacturer : XP Power

Internal Code: 2754-922-13389332

Package : 8-DIP Module

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	DC DC Converters
Manufacturer	XP Power
Series	JTL (40W)
Packaging	Tube
Part Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-12V
Voltage - Output 3	-

Attribute Name	Attribute Value
Current - Output (Max)	1.65A, 1.65A
Power (Watts)	40 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature	-40°C ~ 85°C
Efficiency	90%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Size / Dimension	2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Control Features	Enable, Active High

Resource Type	Link
Datasheets	JTL40 Series Datasheet
Environmental Information	Declaration of Conformity JTL40 Series RoHS Statement
HTML Datasheet	JTL40 Series Datasheet

Attribute	Description
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580

Others include "JTL40" parts

The following parts include 'JTL40', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
JTL4024S12	XP Power	Contact us for a quote	8-DIP Module	DC DC CONVERTER 12V 40W
JTL4048D15	XP Power	Contact us for a quote	8-DIP Module	DC DC CONVERTER +/-15V 40W
JTL4048S05	XP Power	16 Available	8-DIP Module	DC DC CONVERTER 5V 40W
JTL4024D12	XP Power	6 Available	8-DIP Module	DC DC CONVERTER +/-12V 40W
JTL4024S05	XP Power	29 Available	8-DIP Module	DC DC CONVERTER 5V 40W
JTL4048S15	XP Power	Contact us for a quote	8-DIP Module	DC DC CONVERTER 15V 40W
JTL4024S3V3	XP Power	6 Available	8-DIP Module	DC DC CONVERTER 3.3V 40W
JTL4048D12	XP Power	Contact us for a quote	8-DIP Module	DC DC CONVERTER +/-12V 40W
JTL4024D15	XP Power	10 Available	8-DIP Module	DC DC CONVERTER +/-15V 40W
JTL4024S15	XP Power	Contact us for a quote	8-DIP Module	DC DC CONVERTER 15V 40W
JTL4048S12	XP Power	Contact us for a quote	8-DIP Module	DC DC CONVERTER 12V 40W
JTL4048S3V3	XP Power	Contact us for a quote	8-DIP Module	DC DC CONVERTER 3.3V 40W
