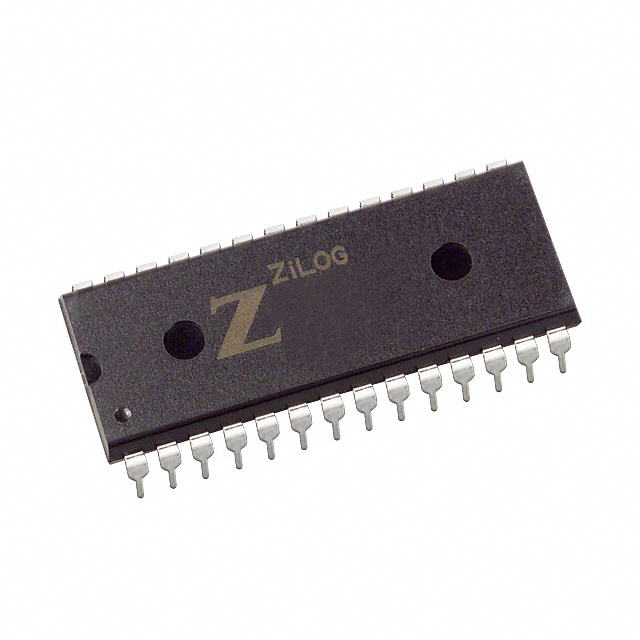

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Zilog Z86C3312PECR2035

IC MCU 8BIT 4KB ROM 28DIP

Mfr Part No.: Z86C3312PECR2035

Manufacturer : Zilog

Internal Code: 1420-685-13333707

Package : 28-DIP (0.600", 15.24mm)

Technical Datasheet : Data Sheet

Delivery : DHL / Fedex / UPS / TNT / SF Express

Payment: Paypal / Credit Card / Wire transfer / Pingpong

Availability: Confirmation Pending
Contact us for a quote

Fastest Quote in 2 Hours

To get the latest stock and the best quote, please send us an inquiry or email us [email protected] and we will reply immediately.

Fast Reliable Delivery to save time.

Reliable package for your goods.

Quality premium after-sale service.

Help you to save your cost and time.

More product SKU, giving you more choices

Note: All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.

Attribute Name	Attribute Value
Category	Embedded - Microcontrollers
Manufacturer	Littelfuse
Series	Z8®
Packaging	Tube
Part Status	Obsolete
Programmable	Not Verified
Core Processor	Z8
Core Size	8-Bit
Speed	12MHz
Connectivity	EBI/EMI
Peripherals	POR, WDT
Number of I/O	24

Attribute Name	Attribute Value
Program Memory Size	4KB (4K x 8)
Program Memory Type	ROM
EEPROM Size	-
RAM Size	237 x 8
Voltage - Supply (Vcc/Vdd)	3V ~ 5.5V
Data Converters	-
Oscillator Type	Internal
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Through Hole
Supplier Device Package	28-DIP
Package / Case	28-DIP (0.600", 15.24mm)

Resource Type	Link
Datasheets	Z86C33,43
HTML Datasheet	Z86C33,43
Environmental Information	Zilog RoHS

Attribute	Description
RoHS Status	RoHS non-compliant
ECCN	EAR99
HTSUS	8542.31.0001
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Others include "Z86C3" parts

The following parts include 'Z86C3', Have the same prefix.

Part No	Manufacturer	Inventory	Package	Description
Z86C3316SSG	Zilog	Contact us for a quote	28-SOIC (0.295", 7.50mm Width)	Z8 4K ROM
Z86C3000ZAC	Zilog	Contact us for a quote	-	28 PIN SOIC/PLCC ACCESSORY KIT
Z86C3600ZEM	Zilog	Contact us for a quote	-	Z8 C36 ICEBOX
Z86C3312PEG	Zilog	Contact us for a quote	28-DIP (0.600", 15.24mm)	Z8 4K ROM
Z86C3012PSCR4457	Zilog	Contact us for a quote	-	IC MCU 8BIT 4KB ROM
Z86C3312PECR2035	Zilog	Contact us for a quote	28-DIP (0.600", 15.24mm)	IC MCU 8BIT 4KB ROM 28DIP
Z86C3012PECR3495	Zilog	Contact us for a quote	-	IC MCU 8BIT 4KB ROM
Z86C3312PSCR2130	Zilog	Contact us for a quote	28-DIP (0.600, 15.24mm)	IC MCU 8BIT 4KB ROM 28DIP
Z86C3312PSCR5104	Zilog	Contact us for a quote	28-DIP (0.600, 15.24mm)	IC MCU 8BIT 4KB ROM 28DIP
Z86C3108PECR3519	Zilog	Contact us for a quote	-	IC MCU 8BIT 2KB ROM
Z86C3616PSCR5359	Zilog	Contact us for a quote	28-DIP (0.600, 15.24mm)	IC MCU 8BIT 64KB ROM 28DIP
