Special-Purpose Resistors: Thermistors, Varistors & Photoresistors Explained

Unlike standard resistors, which are used only to limit current or divide voltage, these components are designed for specific functions and are indispensable in modern electronic devices, providing critical functions in monitoring, protection and automation systems. This section provides a detailed examination of:

• NTC and PTC Thermistors

• Varistors (VDRs)

• Photoresistors (LDRs)

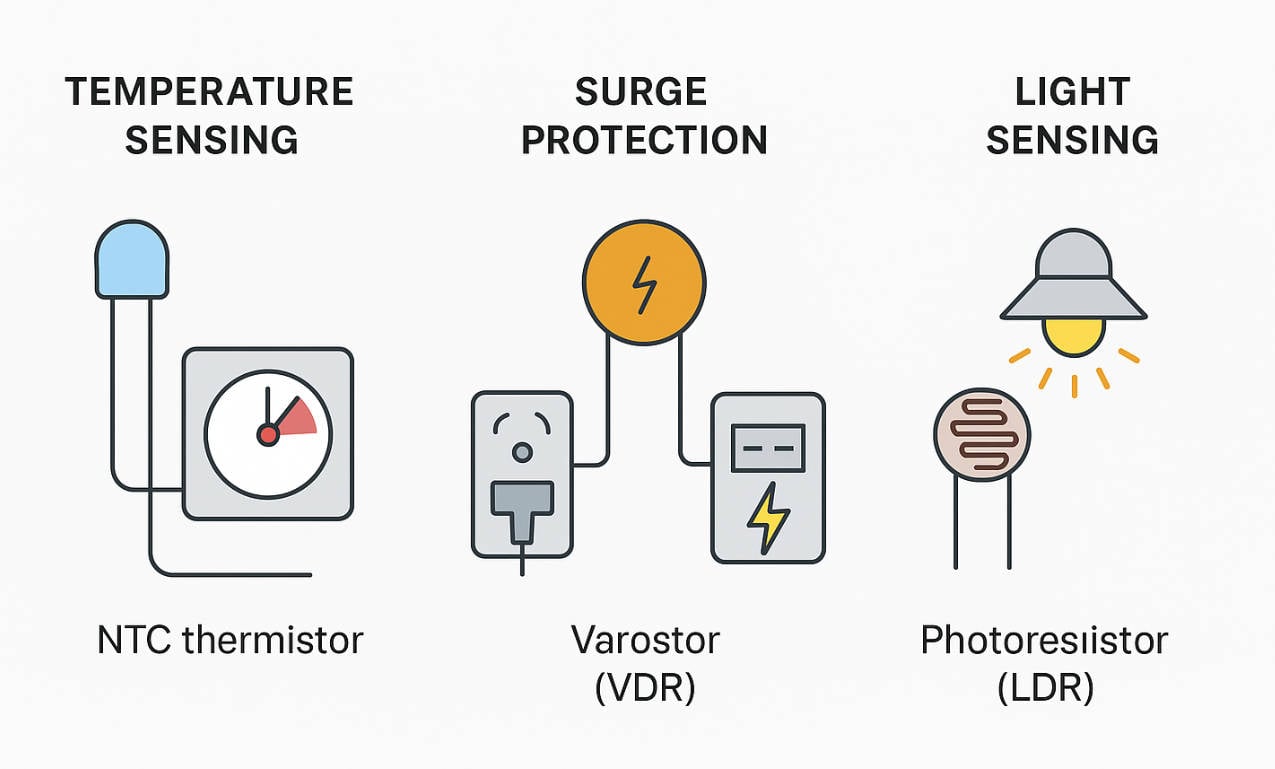

Special-purpose resistors are designed for specific functions, such as thermistors for temperature sensing, varistors for surge protection, and photoresistors for light control circuits. These components play a vital role in enhancing circuit reliability, safety, and automation across modern electronic. We will analyze their operational principles, key differences, and optimal application scenarios.

1. Thermistors: Temperature-Sensitive Resistors

A thermistor is a thermally sensitive resistor whose electrical resistance exhibits a predictable and significant change in response to temperature variations. The name is a portmanteau of "thermal" and "resistor."

NTC (Negative Temperature Coefficient) Thermistors

• Operating Principle: Resistance decreases exponentially as temperature increases. This is due to the semiconductor material's properties, where heat agitates charge carriers, increasing conductivity.

• Primary Applications:

  • Precision Temperature Sensing: Used in thermostats, medical devices, and automotive sensors (e.g., coolant temperature, intake air temperature) for high-accuracy measurement.

  • Inrush Current Limiting: Placed in series with power supplies. Their high initial resistance limits the surge current during capacitor charging. As self-heating occurs, their resistance drops, minimizing power loss during normal operation.

PTC (Positive Temperature Coefficient) Thermistors

• Operating Principle: Resistance increases sharply after a specific characteristic temperature (the Curie point). This is often due to a phase change in the polycrystalline ceramic material.

• Primary Applications:

  • Self-Resetting Fuses: Used for overcurrent protection. Under normal current, resistance is low. During an overcurrent condition, self-heating causes resistance to skyrocket, effectively breaking the circuit. Once the fault is removed and the device cools, it resets automatically.

  • Heating Elements & Thermal Runaway Protection: Provides consistent heat in applications like degassing circuits for automotive mirrors. Also used as a safety device in motor windings to prevent overheating.

2. Varistors: Voltage-Dependent Resistors for Surge Protection

A varistor (Variable Resistor), also known as a Voltage-Dependent Resistor (VDR), is a nonlinear component designed to protect circuits from voltage surges and transients. Its resistance is high under normal operating voltage but drops precipitously when a threshold voltage (the "clamping voltage") is exceeded, thereby shunting destructive energy away from sensitive components.

• Material & Construction: Typically composed of a sintered matrix of zinc oxide (ZnO) grains, creating a microstructure equivalent to a vast network of back-to-back diode junctions. This structure provides bidirectional surge protection.

• Key Applications: Essential for Transient Voltage Suppression (TVS) in:

  • AC/DC power line protection (e.g., in power strips, mains inputs).

  • Protecting ICs, communication lines, and semiconductors from Electrostatic Discharge (ESD), lightning-induced surges, and inductive switching spikes.

• Critical Consideration: Varistors absorb a finite amount of energy (joules). While highly effective, they can degrade after multiple large surges or be destroyed by a single extreme event (e.g., a direct lightning strike), often requiring replacement after a significant surge event.

3. Photoresistors (LDRs): Light-Dependent Resistors

Photoresistors, or Light-Dependent Resistors (LDRs), are passive components whose resistance decreases with increasing incident light intensity. This photoconductive effect occurs as photons excite charge carriers in the semiconductor material (commonly cadmium sulfide, CdS).

• Resistance Range: Exhibits a very wide dynamic range, typically from several megaohms (MΩ) in total darkness to just a few hundred ohms under bright light.

• Primary Applications: Ideal for low-cost, non-critical light-sensing and light-controlled switching, including:

  • Automatic street lighting and nightlights.

  • Light meters in photographic equipment (though largely superseded by photodiodes in modern devices).

  • Security systems (e.g., beam alarms) and solar-powered garden lights.

• Performance Notes: Valued for their simplicity and high resistance change. However, they have a slow response time (noticeable delay between light change and resistance change) and are not suitable for applications requiring high speed or precise quantitative light measurement.

4. Comparative Analysis: Thermistor vs. Varistor vs. Photoresistor

5. Selection Guidelines for Special-Purpose Resistors

Choosing the correct component is critical for system performance and reliability:

• For Temperature Monitoring or Compensation: Select an NTC Thermistor for its high sensitivity and accuracy over a defined range.

• For Overcurrent Protection or Self-Regulating Heat: A PTC Thermistor is the appropriate choice for its resettable fuse-like properties.

• For Circuit Protection Against Voltage Transients: Implement a Varistor (VDR) with a clamping voltage rated above the normal operating peak voltage of the circuit.

• For Simple Ambient Light Detection or Control: A Photoresistor (LDR) offers a cost-effective and simple solution where speed and precision are not critical.

6. FAQs About Special-Purpose Resistors

Q1: What are special-purpose resistors?

Special-purpose resistors are resistors designed for specific functions such as temperature sensing (thermistors), surge protection (varistors), and light detection (photoresistors).

Q2: What is the difference between a varistor and a thermistor?

A varistor changes resistance with voltage, making it ideal for surge protection, while a thermistor changes resistance with temperature, making it suitable for sensing and current limiting.

Q3: Are thermistors and varistors interchangeable?

Absolutely not. Their operating principles and purposes are fundamentally different (temperature vs. voltage response). Substituting one for the other will result in circuit failure and potential safety hazards.

Q4: Are LDRs suitable for high-precision light measurement?

No. Their response is nonlinear and slow. For precision light sensing (e.g., in spectrophotometry), photodiodes or phototransistors are the superior components due to their linear output and fast response times.

Q5: Are nonlinear resistors better than fixed resistors?

Neither is “better”—they serve different purposes. Fixed resistors are for stable current/voltage control, while nonlinear resistors handle specialized tasks.

7. The Critical Role of Special-Purpose Resistors

These nonlinear resistors are fundamental to designing intelligent, robust, and safe electronic systems. They provide essential functions—from circuit protection and temperature control to environmental sensing—often with a simplicity and cost-effectiveness that active components cannot match. Their integration is a hallmark of sophisticated design, ensuring reliability and functionality across a vast spectrum of applications.

As electronics continue to evolve in IoT, renewable energy, and smart systems, the importance of special-purpose resistors will only grow. Understanding their functions helps engineers, students, and hobbyists design circuits that are not only functional but also safe and intelligent.
